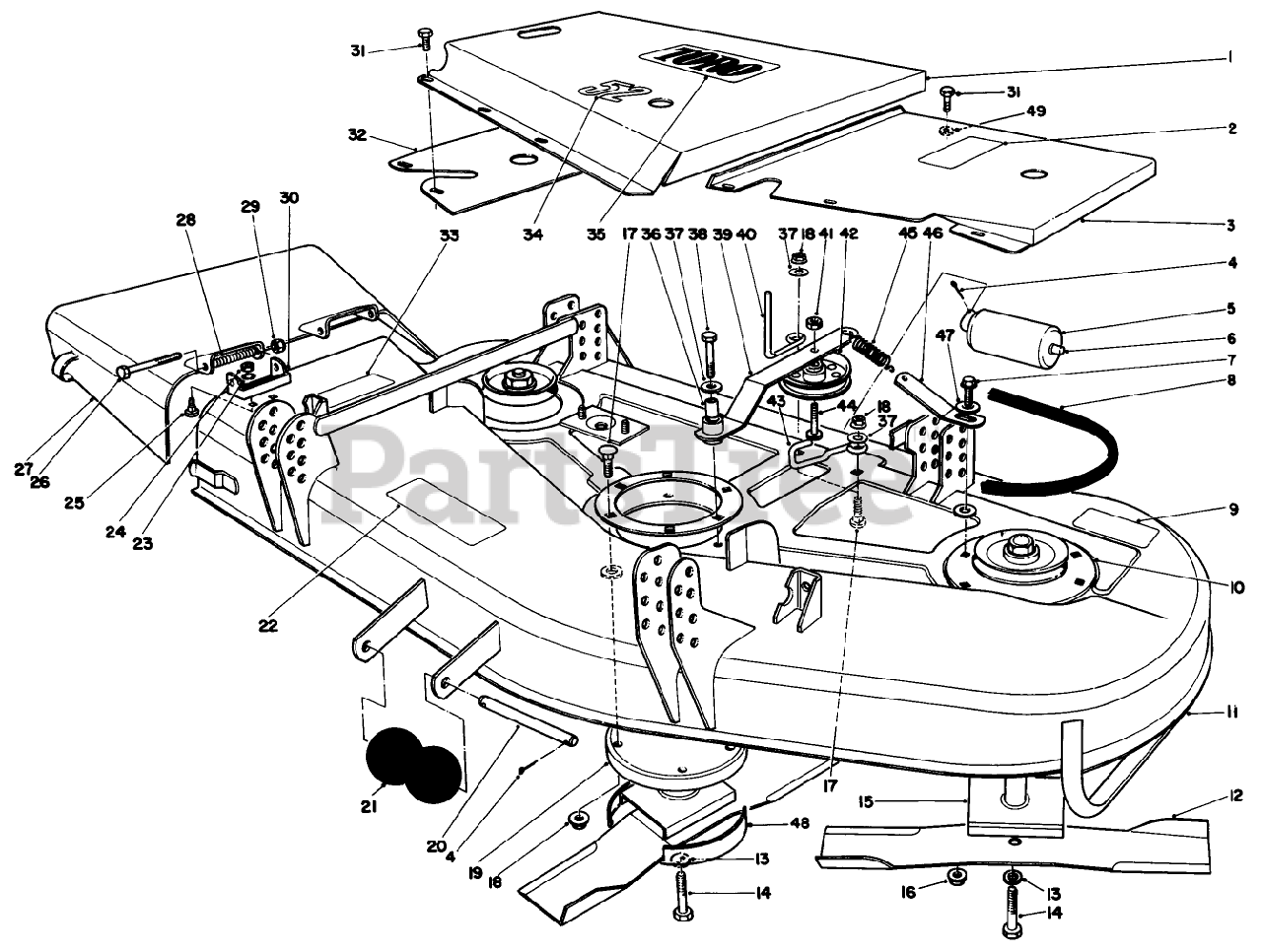

30152 - Toro 52" Side-Discharge Mower Deck (SN: 007000001 - 007999999) (1987) Cutting Unit Assembly Parts Diagram

52" Side-Discharge Mower Deck

Cutting Unit Assembly Parts Diagram

  • Title

1

Toro 51-3930

CENTER COVER WA 52 *R

$396.99

$

Usually ships in 3-6 days

0

2

Toro 42-6860

DISCONTINUED

$

$

Not available

3

Toro 51-3910

See Supercession: 51-3910-01
(Superseded to 51-3910-01)

$

$

Not available

4

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, only 3 left!

0

5

Toro 36-1740

ROLLER-DECK

$49.99

$

In Stock, only 2 left!

0

6

Toro 40-0340

SHAFT-ROLLER, REAR

$35.99

$

Usually ships in 3-6 days

0

7

Toro 3234-17

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

8

Toro 27-1160

V-BELT

$60.99

$

In Stock, Qty 5

0

9

Toro 26-7970

CAUTION DECAL (BLADE)

$

$

Not available

10

Toro 27-7680

See Supercession: 27-7680-03
(Superseded to 27-7680-03)

$94.99

$

Usually ships in 3-6 days

0

11

Toro 51-3850

DISCONTINUED

$

$

Not available

12

Toro 27-0990

See Supercession: 27-0990-03
(Superseded to 27-0990-03)

$22.99

$

In Stock, Qty 17

0

13

Toro 3253-27

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

14

Toro 44-2200

SCREW-BLADE

$5.49

$

In Stock, Qty 13

0

15

Toro 27-0870

SPINDLE ASM

$552.99

$

Usually ships in 3-6 days

0

16

Toro 32128-12

NUT-LOCK, FLANGE

$1.99

$

Usually ships in 3-6 days

0

17

Toro 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

18

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

19

Toro 54-7781

SPINDLE ASM

$1206.99

$

Usually ships in 3-6 days

0

20

Toro 40-6400

SHAFT-ROLLER

$45.99

$

In Stock, only 3 left!

0

21

Toro 29-4820

ROLLER

$19.99

$

In Stock, Qty 6

0

22

Toro 26-7960

See Supercession: 68-7280
(Superseded to 68-7280)

$13.99

$

Usually ships in 3-6 days

0

23

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

24

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

25

Toro 3230-18

SCREW-CARR

$5.99

$

In Stock, Qty 8

0

26

Toro 3211-15

SCREW-HH

$9.49

$

Usually ships in 3-6 days

0

27

Toro 40-6200

See Supercession: 13-3949
(Superseded to 13-3949)

$

$

Not available

28

Toro 40-6230

SPRING

$

$

Not available

29

Toro 3296-5

NUT-HEX

$3.99

$

In Stock, Qty 15

0

30

Toro 29-5590

See Supercession: 29-5590-03
(Superseded to 29-5590-03)

$

$

Not available

31

Toro 46-8560

SCREW-HHFTF

$2.49

$

In Stock, Qty 20+

0

32

Toro 51-3890

See Supercession: 51-3890-01
(Superseded to 51-3890-01)

$

$

Not available

33

Toro 26-7980

DISCONTINUED

$

$

Not available

34

Toro 51-3960

DECAL

$

$

Not available

35

Toro 43-5120

See Supercession: 62-7400
(Superseded to 62-7400)

$28.99

$

Usually ships in 3-6 days

0

36

Toro 51-3640

SLEEVE

$18.99

$

In Stock, only 2 left!

0

37

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

38

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

39

Toro 55-7640

See Supercession: 55-7640-03
(Superseded to 55-7640-03)

$139.99

$

Usually ships in 3-6 days

0

40

Toro 52-4780

ROD-BELT

$15.99

$

In Stock, Qty 5

0

41

Toro 3296-5

NUT-HEX

$3.99

$

In Stock, Qty 15

0

42

Toro 52-4580

See Supercession: 99-5678
(Superseded to 99-5678)

$76.99

$

Usually ships in 3-6 days

0

43

Toro 55-7620

GUIDE-BELT

$

$

Not available

44

Toro 55-7630

See Supercession: 3211-8
(Superseded to 321-18)

$2.49

$

In Stock, Qty 17

0

45

Toro 51-3650

SPRING-EXTENSION

$27.99

$

In Stock, only 2 left!

0

46

Toro 55-7650

PLATE-SPRING

$27.99

$

In Stock, Qty 5

0

47

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

48

Toro 27-1000

See Supercession: 72-9361
(Superseded to 72-9361)

$46.99

$

In Stock, only 4 left!

0

49

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

Toro 56-2390

See Supercession: 56-2390-03
(Superseded to 56-2390-03)

Note: Not Illustrated.

$41.99

$

In Stock, only 4 left!

0
