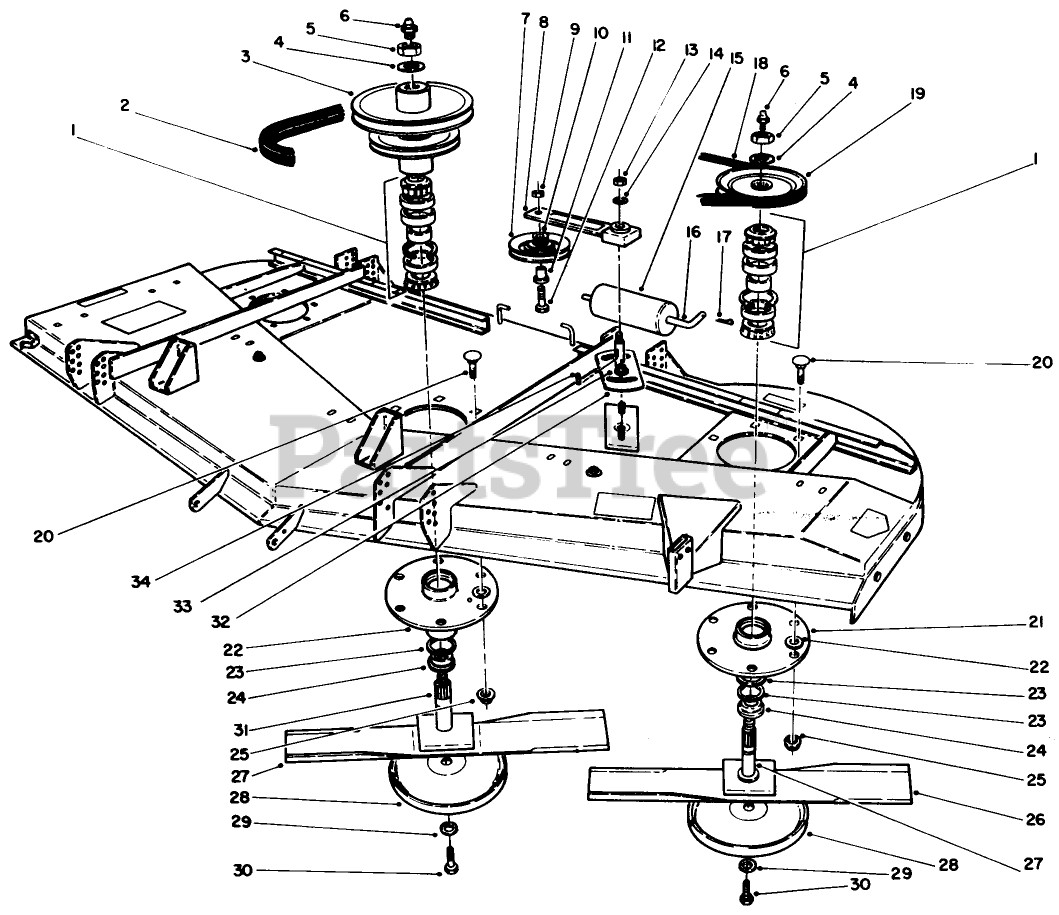

30162 - Toro 62" Side-Discharge Mower Deck (SN: 020000001 - 029999999) (1992) 62" Side Discharge Deck (continued) 2 Parts Diagram

62" Side-Discharge Mower Deck

62" Side Discharge Deck (continued) 2 Parts Diagram

  • Title

1

Toro 46-8530

BEARING ASM

$125.99

$

In Stock, Qty 17

0

2

Toro 74-1330

V-BELT, DECK DRIVE

$

$

Not available

3

Toro 74-1200

Pulley Hub Assembly

$

$

Currently unavailable

4

Toro 7-4150

WASHER

$1.49

$

In Stock, Qty 20+

0

5

Toro 32146-20

NUT-HEX

$4.49

$

In Stock, Qty 16

0

6

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, Qty 20+

0

7

Toro 65-5940

PULLEY-IDLER

$41.99

$

In Stock, Qty 5

0

8

Toro 27-8580

See Supercession: 99-1297
(Superseded to 99-1297)

$178.99

$

In Stock, only 2 left!

0

9

Toro 3296-1

NUT-LOCK

$1.99

$

Usually ships in 3-6 days

0

10

Toro 7-0081

WASHER-FLAT

$1.49

$

In Stock, Qty 9

0

11

Toro 65-5950

BUSHING-PULLEY

$5.99

$

In Stock, Qty 20+

0

12

Toro 3211-8

SCREW-HH

$4.49

$

In Stock, Qty 9

0

13

Toro 3296-71

NUT-LOCK NI

$8.99

$

In Stock, Qty 7

0

14

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 20+

0

15

Toro 36-1740

ROLLER-DECK

$49.99

$

In Stock, only 2 left!

0

16

Toro 40-0340

SHAFT-ROLLER, REAR

$35.99

$

Usually ships in 3-6 days

0

17

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, only 3 left!

0

18

Toro 44-6260

V-BELT

$66.99

$

In Stock, Qty 7

0

19

Toro 44-6340

PULLEY AND HUB ASM

$77.99

$

Usually ships in 3-6 days

0

20

Toro 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

21

Toro 61-4160

HOUSING-SPINDLE

$153.99

$

In Stock, only 4 left!

0

Toro 44-6370

SPINDLE ASM

Note: Not Illustrated.

$

$

Not available

22

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

23

Toro 253-139

SEAL-OIL

$14.99

$

In Stock, Qty 20+

0

24

Toro 27-0950

SPACER

$35.99

$

In Stock, only 2 left!

0

25

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

26

Toro 44-6250

See Supercession: 44-6250-03
(Superseded to 44-6250-03)

$25.99

$

In Stock, Qty 20+

0

27

Toro 27-0920

SHAFT

$185.99

$

Usually ships in 3-6 days

0

28

Toro 72-9360

See Supercession: 72-9361
(Superseded to 72-9361)

$46.99

$

In Stock, only 4 left!

0

29

Toro 67-5770

WASHER

$4.49

$

Usually ships in 3-6 days

0

30

Toro 44-2200

SCREW-BLADE

$5.49

$

In Stock, Qty 13

0

31

Toro 51-3551

See Supercession: 105-1686
(Superseded to 105-1686)

$208.99

$

In Stock, Qty 5

0

32

Toro 44-6301

PLATE-IDLER, LH

$177.99

$

In Stock, only 3 left!

0

33

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

34

Toro 5-1077

KEY-SQUARE

$7.49

$

In Stock, only 2 left!

0

Toro 54-7782

ORDER COMPONENTS

Note: Not Illustrated.

$

$

Not available
