30165 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 059000001 - 059999999) (1995) Engine Clutch Assembly Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

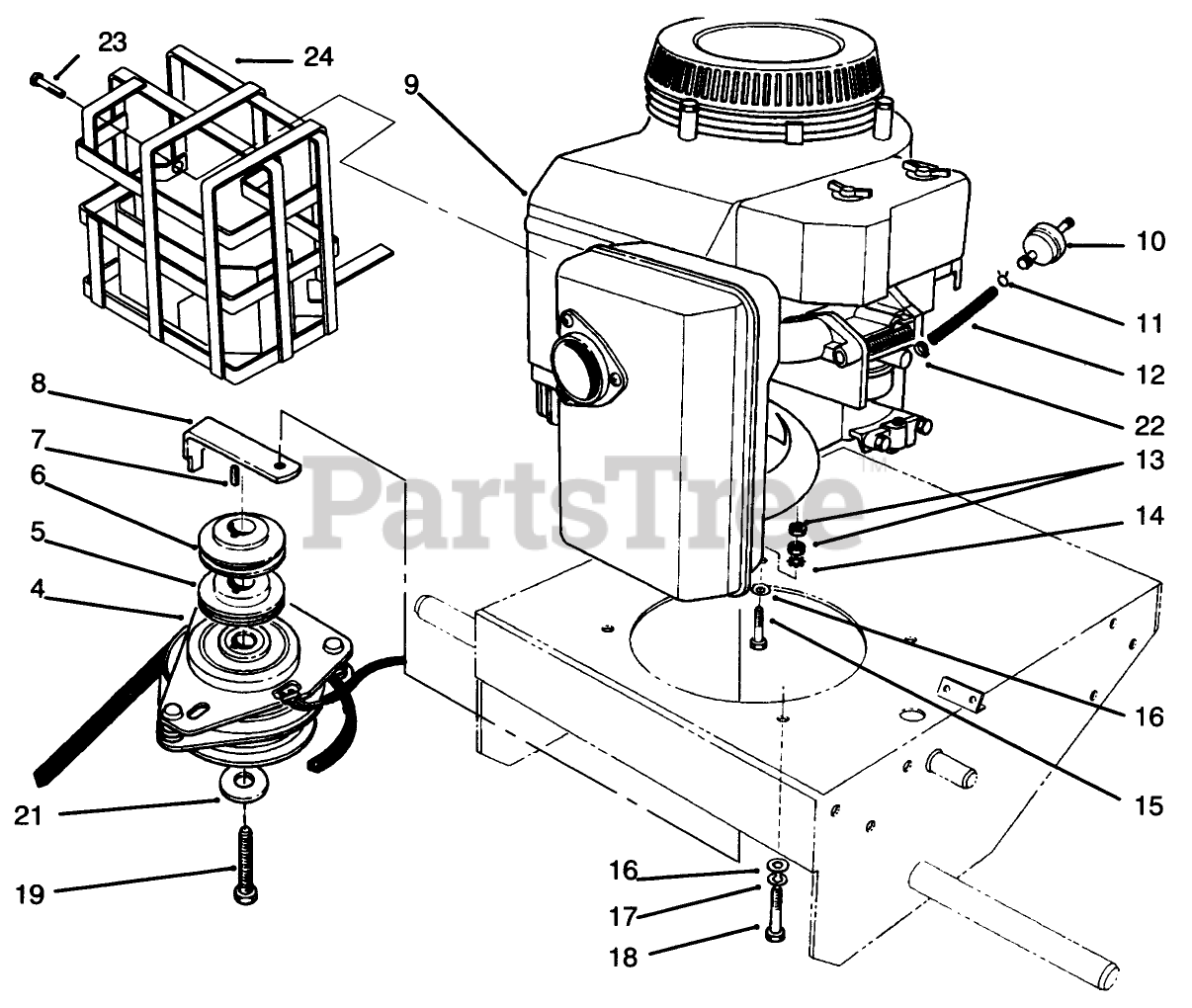

Engine Clutch Assembly Parts Diagram

  • Title

4

Toro 54-3200

See Supercession: 105-2635
(Superseded to 105-2635)

$630.99

$

Usually ships in 3-6 days

0

5

Toro 74-0050

SHEAVE-HALF, LOWER

$25.99

$

Usually ships in 3-6 days

0

6

Toro 74-0060

SHEAVE-HALF, UPPER

$25.99

$

Usually ships in 3-6 days

0

7

Toro 92-5436

KEY-SQUARE

$

$

Not available

8

Toro 51-4540

See Supercession: 51-4540-03
(Superseded to 51-4540-03)

$25.99

$

In Stock, only 2 left!

0

9

Engine-Kawasaki Model FB460V Type JS08

$

$

Not available

10

Toro 56-6360

FILTER-FUEL

$6.99

$

In Stock, Qty 20+

0

11

Toro 2412-98

CLAMP-HOSE
(Superseded to 702355)

$107.99

$

Usually ships in 3-6 days

0

12

Toro 47-2982

See Supercession: 110-4894
(Superseded to 110-4894)

$10.99

$

Usually ships in 3-6 days

0

13

Toro 57-6390

NUT-JAM

$1.49

$

Usually ships in 3-6 days

0

14

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

15

Toro 57-6370

SCREW

$

$

Not available

16

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

17

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

18

Toro 57-6380

See Supercession: 33114-025
(Superseded to 33114-025)

$1.99

$

In Stock, Qty 14

0

19

Toro 57-6360

SCREW-CLUTCH

$5.49

$

Usually ships in 3-6 days

0

21

Toro 112843

WASHER

$3.99

$

In Stock, Qty 5

0

22

Toro 2412-108

CLAMP-WORM

$3.99

$

In Stock, only 1 left!

0

23

Screw-Hex. Hd. (Engine)

$

$

Not available

24

Toro 93-9459

See Supercession: 105-0857-03
(Superseded to 105-0857-03)

$

$

Not available

Toro 54-2750

V-BELT, DRIVE

$64.99

$

Usually ships in 3-6 days

0

Toro 55-7660

V-BELT

$71.99

$

Usually ships in 3-6 days

0
