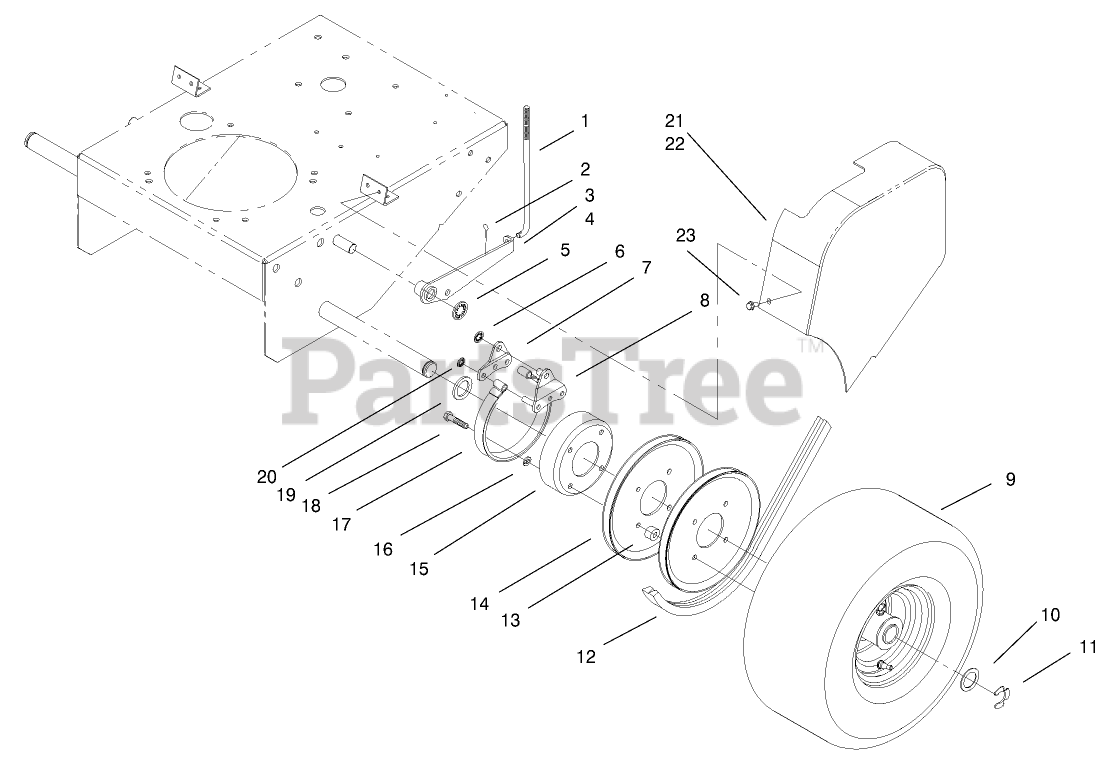

30165 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 200000001 - 200999999) (2000) Brake, Pulley Wheel Assembly Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

Brake, Pulley Wheel Assembly Parts Diagram

  • Title

1

Toro 51-4580

ROD-BRAKE

$65.99

$

Usually ships in 3-6 days

0

2

Toro 3290-307

See Supercession: 1-806003
(Superseded to 1-806003)

$1.99

$

In Stock, Qty 20+

0

3

Toro 51-4600-01

See Supercession: 106-5537-01
(Superseded to 106-5537-01)

$153.99

$

Usually ships in 3-6 days

0

4

Toro 51-4610-01

See Supercession: 106-5537-01
(Superseded to 106-5537-01)

$153.99

$

Usually ships in 3-6 days

0

5

Toro 32151-40

RING-RETAINING

$8.49

$

In Stock, only 2 left!

0

6

Toro 32151-56

RING-RETAINING, EXTERNAL

$6.99

$

Usually ships in 3-6 days

0

7

Toro 51-4660-01

PLATE-LINK, BRAKE

$41.99

$

Usually ships in 3-6 days

0

8

Toro 51-4650-01

LINK-BRAKE

$

$

Not available

9

Wheel And Tire Asy

$

$

Not available

10

Toro 10-8110

WASHER-THRUST

$1.49

$

In Stock, Qty 20+

0

11

Toro 32151-91

RING-RETAINING

$2.99

$

In Stock, Qty 12

0

12

Toro 51-4290

V-BELT

$117.99

$

In Stock, Qty 5

0

13

Toro 51-4170

SPACER-PULLEY

$

$

Not available

14

Toro 51-4160-03

PULLEY-WHEEL

$73.99

$

Usually ships in 3-6 days

0

15

Toro 51-4180-03

DRUM-BRAKE

$84.99

$

Usually ships in 3-6 days

0

16

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

17

Toro 51-4700

BAND-BRAKE

$

$

Not available

18

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

19

Toro 51-4230

WASHER-WHEEL

$14.99

$

Usually ships in 3-6 days

0

20

Toro 32151-72

RING-RETAINING

$1.99

$

In Stock, Qty 20+

0

21

Toro 93-7433

GUARD-BELT, RH

$

$

Not available

22

Toro 93-7434

GUARD-BELT, LH

$

$

Not available

23

Toro 12-3270

SCREW

$3.99

$

In Stock, only 2 left!

0
