30165 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 200000001 - 200999999) (2000) Handle Control Panel Assembly Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

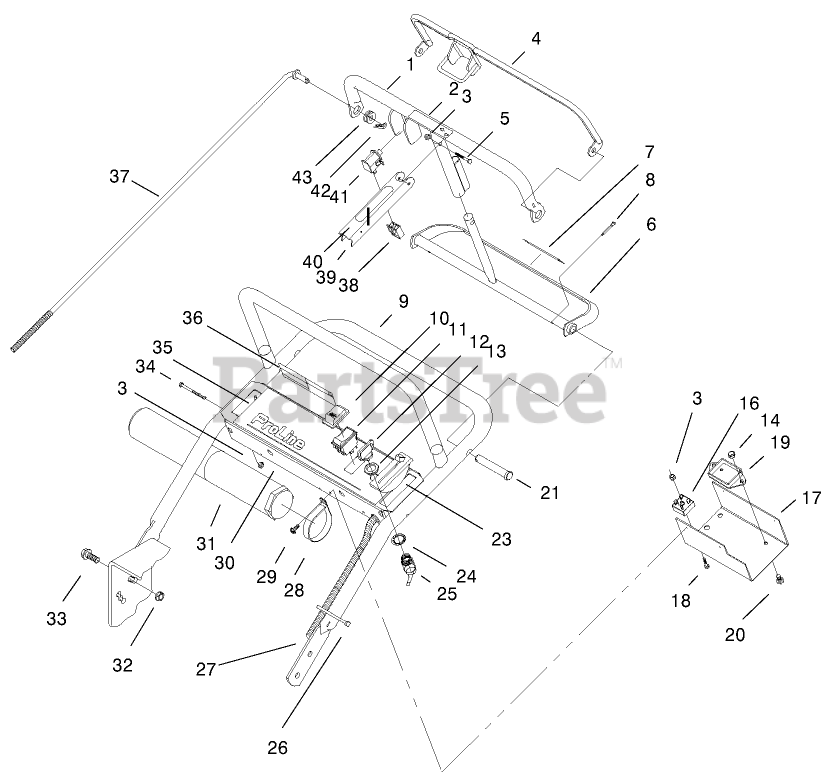

Handle Control Panel Assembly Parts Diagram

  • Title

1

Toro 82-7690-03

BAR-CONTROL

$316.99

$

Usually ships in 3-6 days

0

2

Toro 93-7298

DECAL-BAR, CONTROL

$43.99

$

In Stock, only 1 left!

0

3

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

4

Toro 82-7680-03

BAIL

$170.99

$

Usually ships in 3-6 days

0

5

Toro 32105-1

SCREW-SHH

$3.99

$

In Stock, Qty 5

0

6

Toro 99-8501-03

See Supercession: 106-5477-03
(Superseded to 106-5477-03)

$229.99

$

Usually ships in 3-6 days

0

7

Toro 93-7299

DECAL-REVERSE

$37.99

$

Usually ships in 3-6 days

0

8

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, only 3 left!

0

9

Toro 67-6440-01

DISCONTINUED
(Superseded to 67-6440-03)

$

$

Not available

10

Toro 82-3820

BOOT-SWITCH

$

$

Not available

11

Toro 82-2300

See Supercession: 121-8032
(Superseded to 121-8032)

$60.99

$

In Stock, only 2 left!

0

12

Toro 63-8360

KEY-IGNITION

$6.49

$

In Stock, Qty 20+

0

13

Toro 218-461

NUT-HH

$4.49

$

In Stock, only 1 left!

0

14

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

16

Toro 37-7600

RECTIFIER-BRIDGE

$29.99

$

Usually ships in 3-6 days

0

17

Toro 93-1187-03

PANEL-BOTTOM

$54.99

$

Usually ships in 3-6 days

0

18

Toro 32105-13

SCREW-HWH

$1.99

$

In Stock, Qty 5

0

19

Toro 100-6170

MODULE-DELAY

$67.99

$

In Stock, only 2 left!

0

20

Toro 321-2

SCREW-HH

$3.99

$

In Stock, only 3 left!

0

21

Toro 283-55

PIN-CLEVIS

$13.99

$

In Stock, Qty 6

0

23

Toro 74-0740

CONTROL-THROTTLE

$

$

Not available

24

Toro 3254-5

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

25

Toro 29-5560

SWITCH-ON / OFF

$18.99

$

In Stock, only 2 left!

0

26

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

27

Toro 100-6459

HARNESS-WIRE, RECOIL

$

$

Not available

28

Toro 2412-120

CLAMP-R

$8.49

$

Usually ships in 3-6 days

0

29

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

30

Toro 82-2180-03

PANEL-CONTROL

$

$

Not available

31

Toro 74-0720

TUBE-MANUAL

$27.99

$

Usually ships in 3-6 days

0

32

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

33

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

34

Toro 32105-14

SCREW-SHH

$3.99

$

Usually ships in 3-6 days

0

35

Toro 93-7295

DECAL-PANEL

$

$

Not available

36

Toro 93-6657

DECAL-DANGER

$

$

Not available

37

Toro 82-7631

ROD-CONTROL

$81.99

$

Usually ships in 3-6 days

0

38

Toro 218-595

CONNECTOR-BODY

$

$

Not available

39

Toro 51-4850-03

LEVER-BRAKE, PARKING

$43.99

$

Usually ships in 3-6 days

0

40

Toro 93-7442

DECAL-LEVER, PARKING

$26.99

$

Usually ships in 3-6 days

0

41

Toro 82-2190

SWITCH-BAIL

$15.99

$

In Stock, Qty 20+

0

42

Toro 3290-307

See Supercession: 1-806003
(Superseded to 1-806003)

$1.99

$

In Stock, Qty 20+

0

43

Toro 237-141

GROMMET-RUBBER

$2.99

$

In Stock, Qty 20+

0
