30172 TE - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 210000001 - 210999999) (2001) Fuel Tank Assembly Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

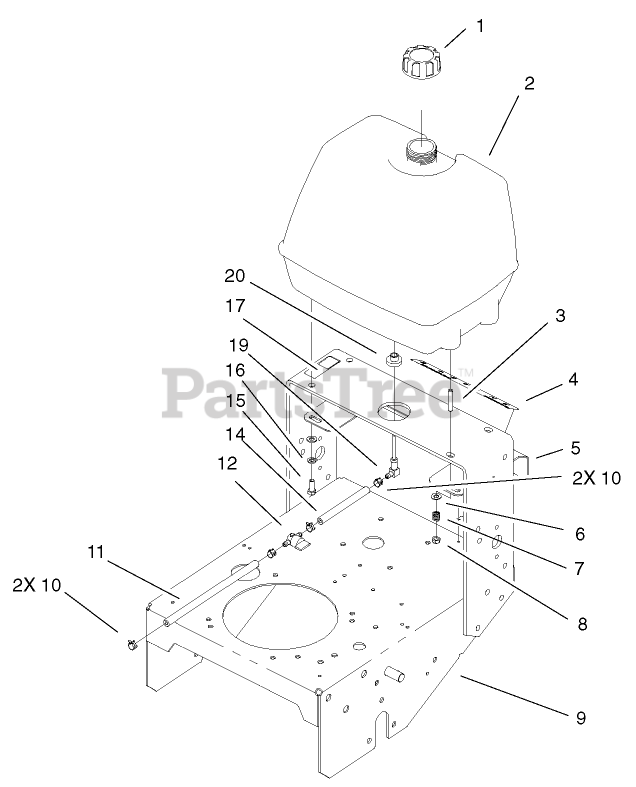

Fuel Tank Assembly Parts Diagram

  • Title

1

Toro 55-3570

GAS CAP ASM

$15.99

$

In Stock, only 2 left!

0

2

Toro 1-323551

See Supercession: 106-0730
(Superseded to 106-0730)

$

$

Not available

3

Toro 104-8121

STUD-THREADED

$

$

Not available

4

Toro 98-3264

DECAL-SPEED, GROUND

$39.99

$

Usually ships in 3-6 days

0

5

Toro 104-8102-01

PLATE-GATE, SHIFT

$

$

Not available

6

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

7

Toro 1-633349

SPRING-TANK, FUEL

$5.99

$

In Stock, Qty 17

0

8

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

9

Toro 104-8100-01

TRACTION FRAME ASM

$1611.99

$

Usually ships in 3-6 days

0

10

Toro 2412-98

CLAMP-HOSE
(Superseded to 702355)

$107.99

$

Usually ships in 3-6 days

0

11

Toro 47-2982

See Supercession: 110-4894
(Superseded to 110-4894)

$10.99

$

Usually ships in 3-6 days

0

12

Toro 1-603770

VALVE-FUEL

$9.49

$

In Stock, only 4 left!

0

14

Toro 47-2966

See Supercession: 109-0678
(Superseded to 109-0678)

$5.99

$

Usually ships in 3-6 days

0

15

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 17

0

16

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

17

Toro 93-9353

DECAL-SHUT OFF, FUEL

$

$

Not available

19

Toro 1-543277

ELBOW-TANK, FUEL

$13.99

$

In Stock, Qty 20+

0

20

Toro 1-513645

See Supercession: 46-6560
(Superseded to 46-6560)

$6.49

$

In Stock, Qty 20+

0
