30176 - Toro ProLine Walk-Behind Mower, Gear Drive, 14hp (SN: 059000001 - 059999999) (1995) Handle Assembly Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 14hp

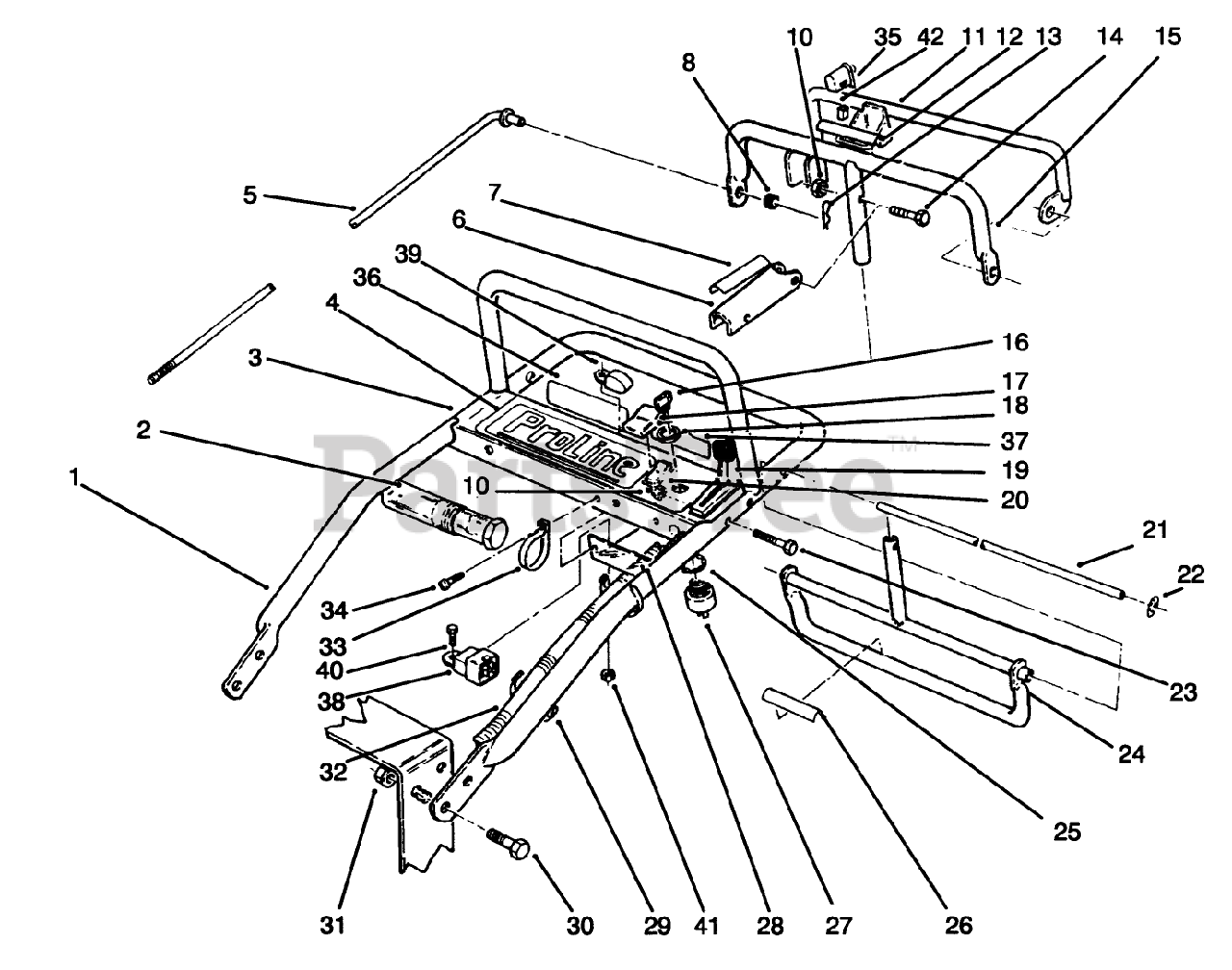

Handle Assembly Parts Diagram

  • Title

1

Toro 67-6440

DISCONTINUED
(Superseded to 67-6440-03)

$

$

Not available

2

Toro 74-0720

TUBE-MANUAL

$27.99

$

Usually ships in 3-6 days

0

3

Toro 82-2180

See Supercession: 82-2180-03
(Superseded to 82-2180-03)

$

$

Not available

4

Toro 82-7730

DISCONTINUED

$

$

Not available

5

Toro 82-7631

ROD-CONTROL

$81.99

$

Usually ships in 3-6 days

0

6

Toro 51-4850

See Supercession: 51-4850-03
(Superseded to 51-4850-03)

$43.99

$

Usually ships in 3-6 days

0

7

Toro 52-2010

DECAL-LEVER, PARKING

$6.49

$

Usually ships in 3-6 days

0

8

Toro 237-141

GROMMET-RUBBER

$2.99

$

In Stock, Qty 20+

0

10

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

11

Toro 82-7680

See Supercession: 82-7680-03
(Superseded to 82-7680-03)

$170.99

$

Usually ships in 3-6 days

0

12

Toro 82-2290

DECAL

$13.99

$

Usually ships in 3-6 days

0

13

Toro 3290-307

See Supercession: 1-806003
(Superseded to 1-806003)

$1.99

$

In Stock, Qty 20+

0

14

Toro 32105-1

SCREW-SHH

$3.99

$

In Stock, Qty 5

0

15

Toro 82-7690

See Supercession: 82-7690-03
(Superseded to 82-7690-03)

$316.99

$

Usually ships in 3-6 days

0

16

Toro 63-8360

KEY-IGNITION

$6.49

$

In Stock, Qty 20+

0

17

Toro 82-3820

BOOT-SWITCH

$

$

Not available

18

Toro 218-461

NUT-HH

$4.49

$

In Stock, only 2 left!

0

19

Toro 74-0630

CONTROL-THROTTLE

$143.99

$

Usually ships in 3-6 days

0

20

Toro 82-2300

See Supercession: 121-8032
(Superseded to 121-8032)

$60.99

$

In Stock, only 2 left!

0

21

Toro 74-0470

PIVOT ROD

$58.99

$

Usually ships in 3-6 days

0

22

Toro 32151-80

NUT-PUSH-ON, CIRCULAR

$1.99

$

In Stock, only 4 left!

0

23

Toro 32105-14

SCREW-SHH

$3.99

$

Usually ships in 3-6 days

0

24

Toro 74-0380

DISCONTINUED
(Superseded to 74-0380-03)

$

$

Not available

25

Toro 3254-5

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

26

Toro 82-2280

DECAL

$11.99

$

Usually ships in 3-6 days

0

27

Toro 29-5560

SWITCH-ON / OFF

$18.99

$

In Stock, only 2 left!

0

28

Toro 57-5811

See Supercession: 93-1187-03
(Superseded to 93-1187-03)

$54.99

$

Usually ships in 3-6 days

0

29

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

30

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

31

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

32

Wire Harness

$

$

Not available

33

Toro 2412-120

CLAMP-R

$8.49

$

Usually ships in 3-6 days

0

34

Toro 32144-19

SCREW-SHWH

$1.49

$

Usually ships in 3-6 days

0

35

Toro 82-2190

SWITCH-BAIL

$15.99

$

In Stock, Qty 20+

0

36

Toro 71-1280

DECAL-INSTRUCTION, SAFETY

$31.99

$

Usually ships in 3-6 days

0

37

Toro 65-3090

DECAL-INSTRUCTION

$

$

Not available

38

Toro 63-7590

RELAY

$91.99

$

Usually ships in 3-6 days

0

39

Toro 86-7910

See Supercession: 94-5818
(Superseded to 94-5818)

$

$

Not available

40

Toro 321-1

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

41

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

42

Toro 218-595

CONNECTOR-BODY

$

$

Not available
