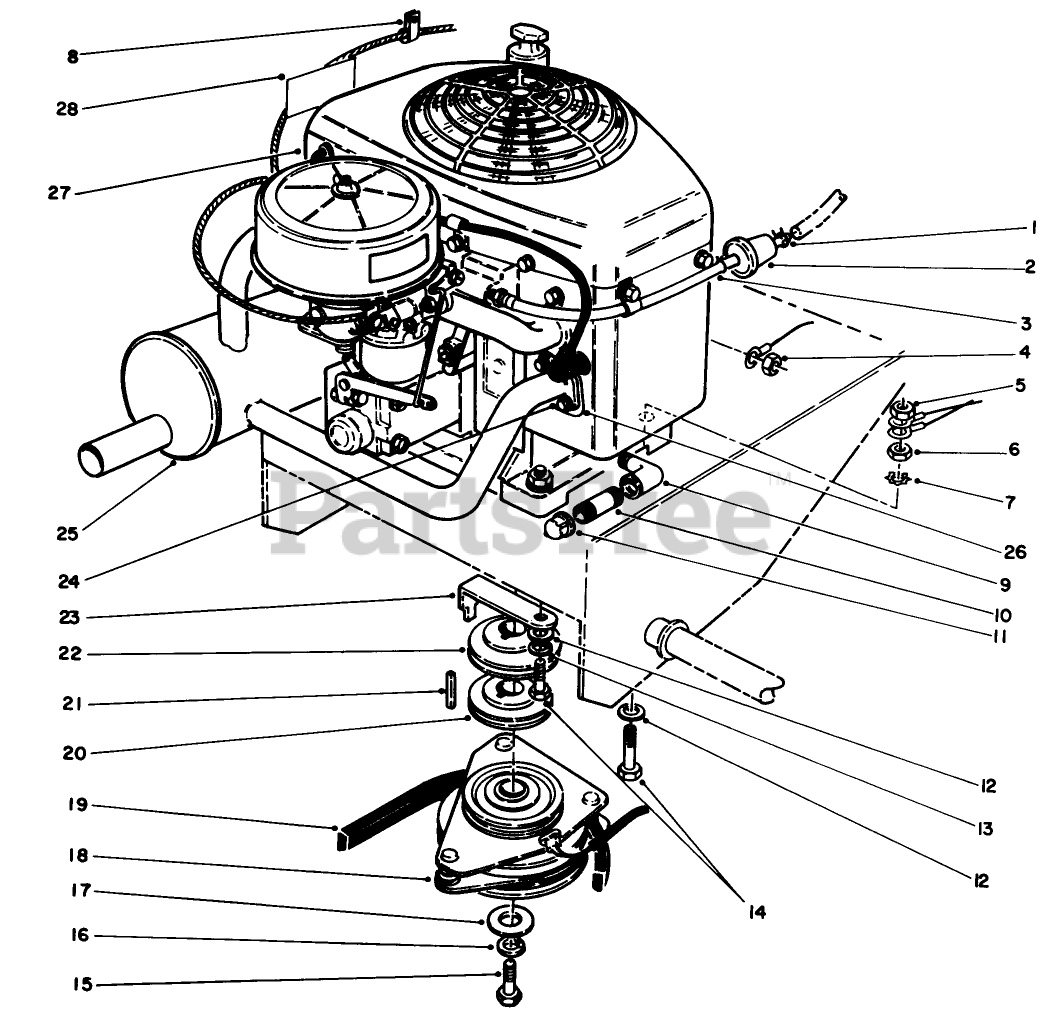

30180 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 020000001 - 029999999) (1992) Engine Assembly Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

Engine Assembly Parts Diagram

  • Title

1

Toro 2412-98

CLAMP-HOSE
(Superseded to 702355)

$107.99

$

Usually ships in 3-6 days

0

2

Fuel-Filter

$

$

Not available

3

Hose-Gas

$

$

Not available

4

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

5

Toro 32149-1

NUT-KEPS

$6.99

$

In Stock, only 2 left!

0

6

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 7

0

7

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

8

Toro 2412-73

CLAMP-R

$3.49

$

Usually ships in 3-6 days

0

9

Toro 2811-10

ELBOW-STREET, 90 DEG

$

$

Not available

10

Toro 289-48

NIPPLE

$

$

Not available

11

Toro 288-4

CAP-PIPE

$23.99

$

Usually ships in 3-6 days

0

12

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

13

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

14

Toro 322-9

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

15

Toro 3212-24

SCREW-HH

$

$

Not available

16

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 2 left!

0

17

Toro 44-8160

DISCONTINUED

$

$

Not available

18

Toro 54-3200

See Supercession: 105-2635
(Superseded to 105-2635)

$630.99

$

Usually ships in 3-6 days

0

19

Toro 54-2750

V-BELT, DRIVE

$64.99

$

Usually ships in 3-6 days

0

Toro 55-7660

V-BELT

Note: Not Illustrated.

$71.99

$

Usually ships in 3-6 days

0

20

Toro 74-0050

SHEAVE-HALF, LOWER

$25.99

$

Usually ships in 3-6 days

0

21

Toro 5-1336

KEY-SQUARE

$11.99

$

In Stock, only 2 left!

0

22

Toro 74-0060

SHEAVE-HALF, UPPER

$25.99

$

Usually ships in 3-6 days

0

23

Toro 51-4540

See Supercession: 51-4540-03
(Superseded to 51-4540-03)

$25.99

$

In Stock, only 2 left!

0

24

Toro 3274-10

SCREW-HSH

$11.99

$

In Stock, Qty 20+

0

25

Toro 68-2050

DISCONTINUED

$

$

Not available

26

Toro 68-3240

DISCONTINUED

$

$

Not available

27

Engine (Incl. Ref. #2 3)

$

$

Not available

28

Toro 63-8440

DECAL-SURFACE, HOT

$

$

Not available
