30180 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 059000001 - 059999999) (1995) Handle Assembly (continued) Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

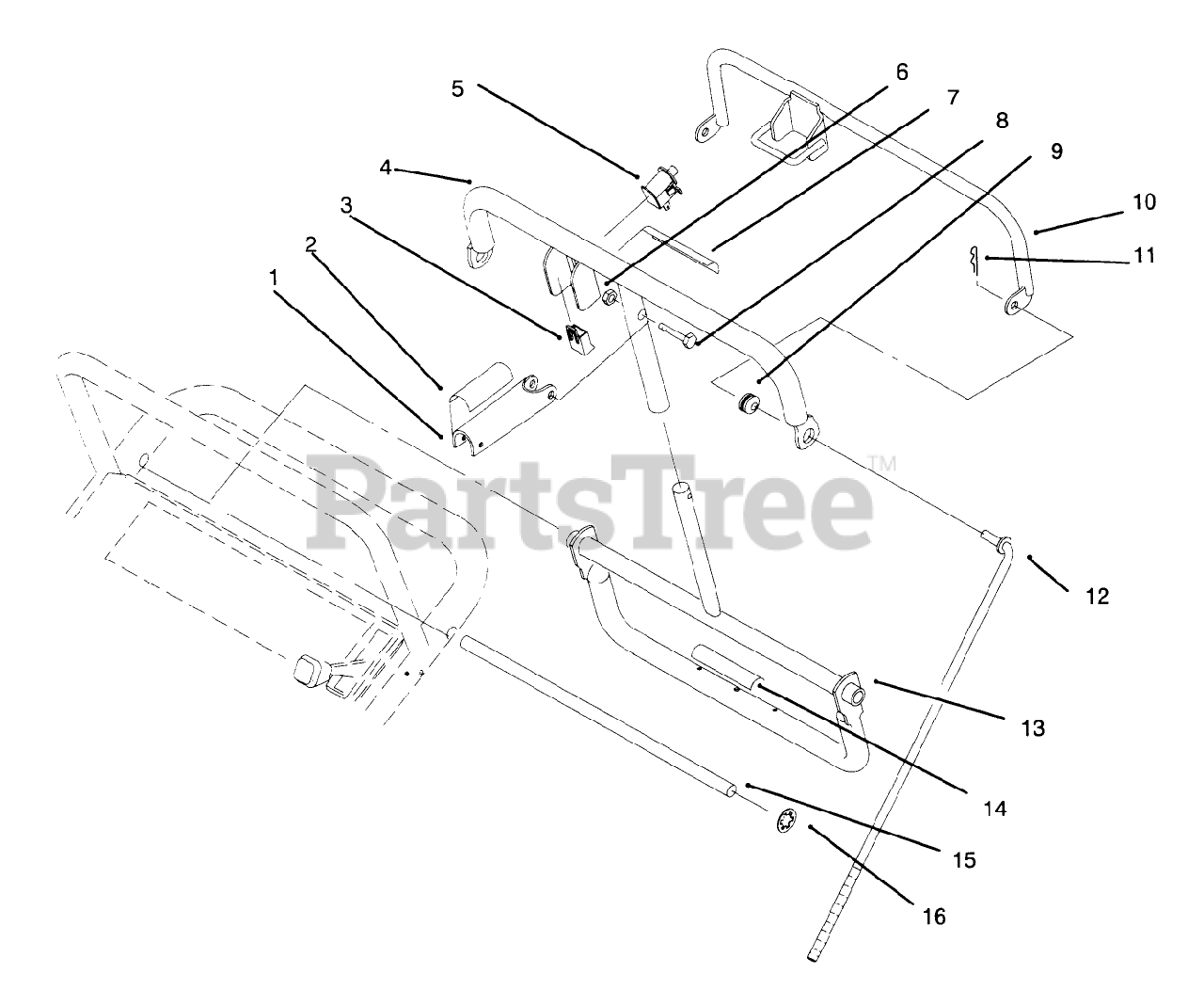

Handle Assembly (continued) Parts Diagram

  • Title

1

Toro 51-4850

See Supercession: 51-4850-03
(Superseded to 51-4850-03)

$43.99

$

Usually ships in 3-6 days

0

2

Toro 93-7442

DECAL-LEVER, PARKING

$26.99

$

Usually ships in 3-6 days

0

3

Toro 218-595

CONNECTOR-BODY

$

$

Not available

4

Toro 93-7298

DECAL-BAR, CONTROL

$43.99

$

In Stock, only 1 left!

0

5

Toro 82-2190

SWITCH-BAIL

$15.99

$

In Stock, Qty 20+

0

6

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

7

Toro 82-2290

DECAL

$13.99

$

Usually ships in 3-6 days

0

8

Toro 32105-1

SCREW-SHH

$3.99

$

In Stock, Qty 5

0

9

Toro 237-141

GROMMET-RUBBER

$2.99

$

In Stock, Qty 20+

0

10

Toro 82-7680

See Supercession: 82-7680-03
(Superseded to 82-7680-03)

$170.99

$

Usually ships in 3-6 days

0

11

Toro 3290-307

See Supercession: 1-806003
(Superseded to 1-806003)

$1.99

$

In Stock, Qty 20+

0

12

Toro 82-7631

ROD-CONTROL

$81.99

$

Usually ships in 3-6 days

0

13

Toro 74-0380

DISCONTINUED
(Superseded to 74-0380-03)

$

$

Not available

14

Toro 93-7299

DECAL-REVERSE

$37.99

$

Usually ships in 3-6 days

0

15

Toro 74-0470

PIVOT ROD

$58.99

$

Usually ships in 3-6 days

0

16

Toro 32151-80

NUT-PUSH-ON, CIRCULAR

$1.99

$

In Stock, only 4 left!

0
