30181 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 059000001 - 059999999) (1995) Battery Assembly Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

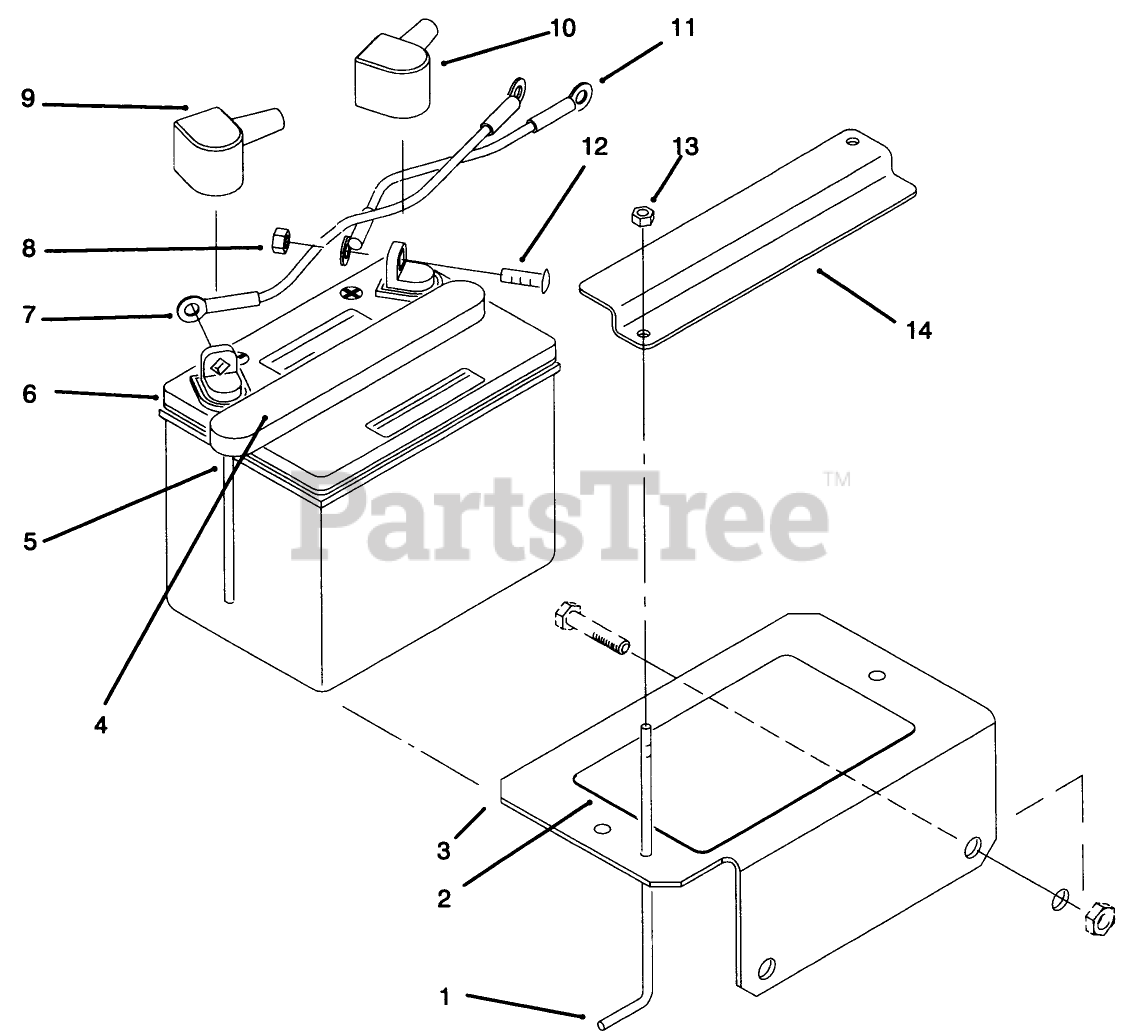

Battery Assembly Parts Diagram

  • Title

1

Toro 12-5950

ROD-SUPPORT, BATTERY

$

$

Not available

2

Toro 62-4300

PAD-SKID, ANTI

$22.99

$

Usually ships in 3-6 days

0

3

Toro 93-1180

See Supercession: 93-1180-01
(Superseded to 93-1180-01)

$165.99

$

Usually ships in 3-6 days

0

4

Toro 84-1830

DISCONTINUED

$

$

Not available

5

Toro 68-3810

TUBE-VENT

$

$

Not available

6

Toro 82-4640

See Supercession: 104-8162
(Superseded to 104-8162)

$

$

Not available

7

Toro 54-3090

WIRE ASM

$

$

Not available

8

Toro 32149-1

NUT-KEPS

$6.99

$

In Stock, only 2 left!

0

9

Toro 77-0980

BOOT-TERMINAL, BLACK

$

$

Not available

10

Toro 77-0981

BOOT-TERMINAL, RED

$18.99

$

Usually ships in 3-6 days

0

11

Toro 28-3891

WIRE-SOLENOID/STARTER

$30.99

$

Usually ships in 3-6 days

0

12

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

14

Toro 82-4620

See Supercession: 82-4620-01
(Superseded to 82-4620-01)

$

$

Not available
