30187 - Toro ProLine Walk-Behind Mower, Hydro Drive, 15hp (SN: 200000001 - 200999999) (2000) Clutch Assembly Parts Diagram
ProLine Walk-Behind Mower, Hydro Drive, 15hp

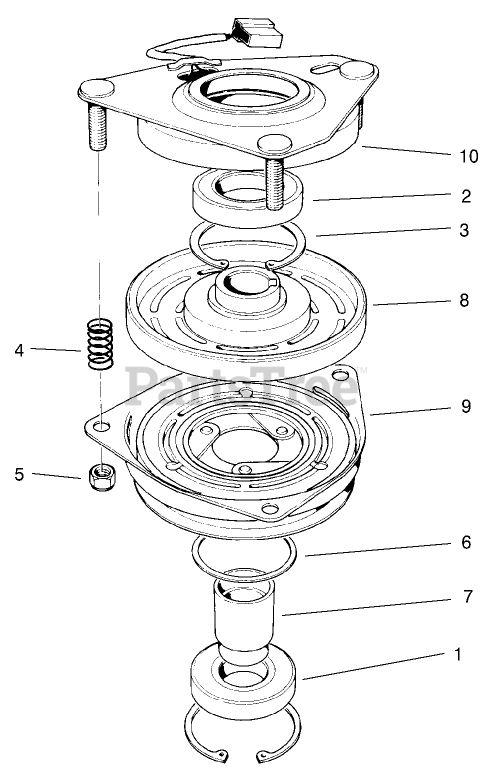

Clutch Assembly Parts Diagram
$26.99
$
Usually ships in 3-6 days
Toro 251-292
BEARING-FIELD
$151.99
$
Usually ships in 3-6 days
Toro 44-8310
RING-RETAINING
$
$
Not available
Toro 44-8320
SPRING
$
$
Not available
Toro 3296-6
NUT-LOCK
$1.99
$
In Stock, Qty 20+
Toro 44-8330
SPACER-BEARING, PULLEY
$
$
Not available
Toro 44-8340
COLLAR-BEARING
$
$
Not available
Toro 44-8360
FIELD COIL/ROTOR BEARING ASM
$735.99
$
Usually ships in 3-6 days
Toro 44-8370
DISCONTINUED
$
$
Not available
Toro 54-0230
FIELD BEARING ASM
$452.99
$
Usually ships in 3-6 days
