30187 - Toro ProLine Walk-Behind Mower, Hydro Drive, 15hp (SN: 220000001 - 220999999) (2002) Control Panel Assembly Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 15hp

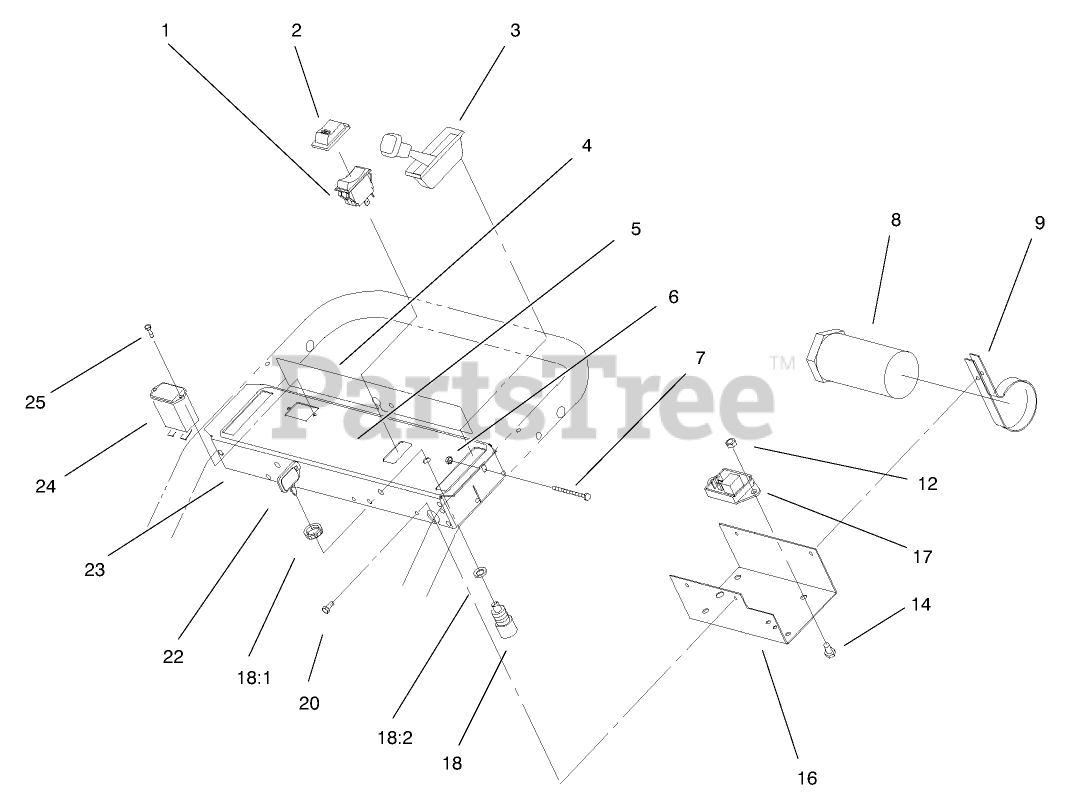

Control Panel Assembly Parts Diagram

  • Title

1

Toro 82-2300

See Supercession: 121-8032
(Superseded to 121-8032)

$60.99

$

In Stock, only 2 left!

0

2

Toro 82-3820

BOOT-SWITCH

$

$

Not available

3

Toro 74-0630

CONTROL-THROTTLE

$143.99

$

Usually ships in 3-6 days

0

4

Toro 95-1544

DECAL-WARNING

$

$

Not available

5

Toro 95-5859

DECAL-PANEL, CONTROL

$

$

Not available

6

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

7

Toro 32105-14

SCREW-SHH

$3.99

$

Usually ships in 3-6 days

0

8

Toro 74-0720

TUBE-MANUAL

$27.99

$

Usually ships in 3-6 days

0

9

Toro 2412-120

CLAMP-R

$8.49

$

Usually ships in 3-6 days

0

12

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

14

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

16

Toro 93-1187-03

PANEL-BOTTOM

$54.99

$

Usually ships in 3-6 days

0

17

Toro 100-6170

MODULE-DELAY

$67.99

$

In Stock, only 2 left!

0

18

Toro 23-0660

SWITCH-STARTER

$26.99

$

In Stock, Qty 6

0

18:1

Toro 218-461

NUT-HH

$4.49

$

In Stock, only 2 left!

0

18:2

Toro 3254-5

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

20

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

22

Toro 63-8360

KEY-IGNITION

$6.49

$

In Stock, Qty 20+

0

23

Toro 82-2181-03

CONTROL PANEL

$

$

Not available

24

Toro 75-6820

HOURMETER
(Superseded to 120-2244)

$76.99

$

In Stock, Qty 5

0

25

Toro 32144-18

SCREW-HWH

$2.49

$

Usually ships in 3-6 days

0
