30194 - Toro 36" ProLine Walk-Behind Mower, Gear Drive, 13hp (SN: 220000001 - 220999999) (2002) Spindle Assembly Parts Diagram

36" ProLine Walk-Behind Mower, Gear Drive, 13hp

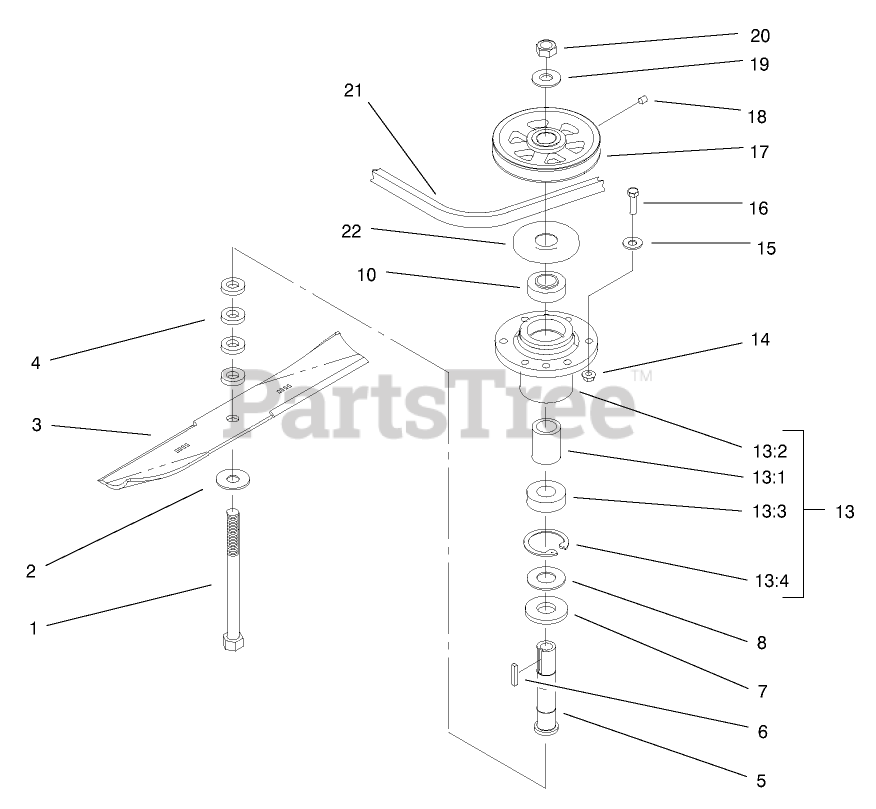

Spindle Assembly Parts Diagram

  • Title

1

Toro 1-800861

SCREW-CAP, HH

$21.99

$

In Stock, only 4 left!

0

2

Toro 1-513208

WASHER-SPRING

$10.99

$

Usually ships in 3-6 days

0

3

Toro 103-2528

BLADE-NOTCHED

$35.99

$

In Stock, Qty 20+

0

3

Toro 103-2508

BLADE-LIFT, LOW

$37.99

$

In Stock, Qty 9

0

4

Toro 1-323539

SPACER

$2.99

$

In Stock, Qty 20+

0

5

Toro 1-323529

TUBE-SPINDLE, SHORT

$101.99

$

In Stock, only 2 left!

0

6

Toro 1-807267

KEY

$2.99

$

In Stock, Qty 9

0

7

Toro 1-633573

GUARD-BEARING, BOTTOM

$5.99

$

In Stock, Qty 12

0

8

Toro 1-323533

SPACER-PULLEY/BEARING

$5.99

$

In Stock, only 4 left!

0

10

Toro 1-513016

BEARING

$92.99

$

In Stock, Qty 20+

0

13

Toro 1-634619

See Supercession: 107-4065
(Superseded to 107-4065)

$173.99

$

Usually ships in 3-6 days

0

13:1

Toro 1-323528

SPACER-BEARING

$9.99

$

In Stock, Qty 6

0

13:2

Toro 1-323532

See Supercession: 103-7975
(Superseded to 103-7975)

$68.99

$

In Stock, only 2 left!

0

13:3

Toro 1-513016

BEARING

$92.99

$

In Stock, Qty 20+

0

13:4

Toro 32120-8

RING-SNAP

$2.99

$

In Stock, Qty 20+

0

14

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

15

Toro 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 20+

0

16

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

17

Toro 1-403183

SHEAVE

$76.99

$

In Stock, only 2 left!

0

18

Toro 1-803310

SCREW-SET

$2.99

$

Usually ships in 3-6 days

0

19

Toro 1-323339

WASHER-RETAINER, SHEAVE

$5.99

$

In Stock, Qty 20+

0

20

Toro 3219-6

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

21

Toro 1-323737

BELT-BLADE, DRIVE

$118.99

$

In Stock, only 1 left!

0

22

Toro 103-1330

GUARD-BEARING, TOP

$5.99

$

In Stock, Qty 20+
