30196 - Toro 48" ProLine Walk-Behind Mower, Gear Drive, 14hp (SN: 099000001 - 099000200) (1999) Center Spindles And Blade Parts Diagram

48" ProLine Walk-Behind Mower, Gear Drive, 14hp

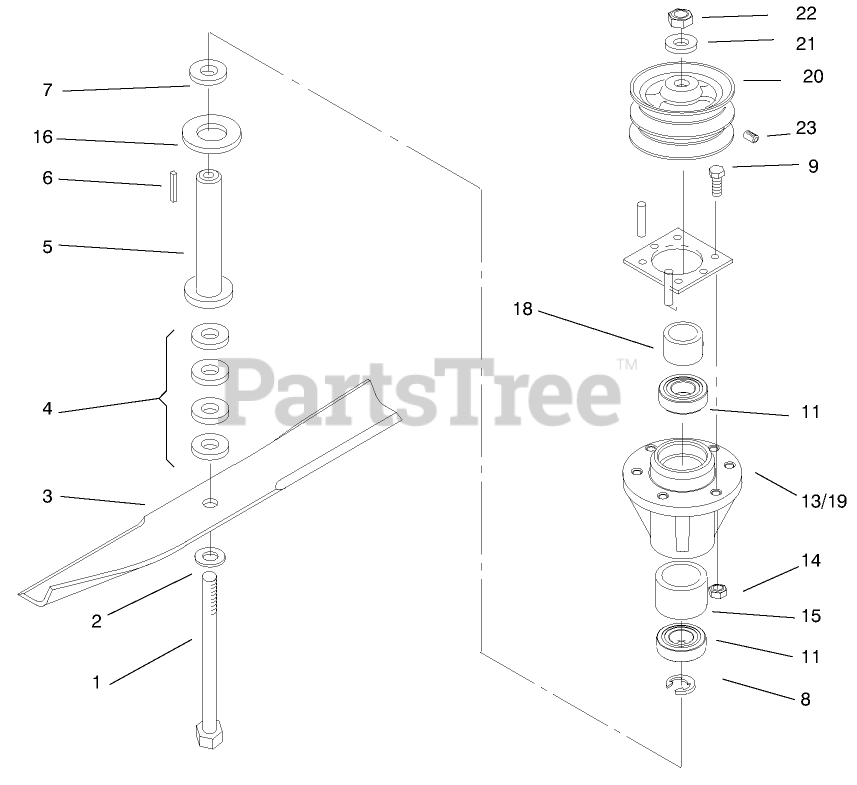

Center Spindles And Blade Parts Diagram

  • Title

1

Toro E800862

See Supercession: 1-800862
(Superseded to 1-800862)

$30.99

$

In Stock, Qty 13

0

2

Toro E513208

See Supercession: 1-513208
(Superseded to 1-513208)

$10.99

$

Usually ships in 3-6 days

0

3

Toro E323515

See Supercession: 103-2527
(Superseded to 103-2527)

$35.99

$

In Stock, Qty 20+

0

3

Toro E403149

See Supercession: 103-6738-S
(Superseded to 103-2507)

$29.99

$

In Stock, only 3 left!

0

4

Toro E323539

See Supercession: 1-323539
(Superseded to 1-323539)

$2.99

$

In Stock, Qty 20+

0

5

Toro E323530

See Supercession: 1-323530
(Superseded to 1-323530)

$

$

Not available

6

Toro E807267

See Supercession: 1-807267
(Superseded to 1-807267)

$2.99

$

In Stock, Qty 9

0

7

Toro E323533

See Supercession: 1-323533
(Superseded to 1-323533)

$5.99

$

In Stock, only 4 left!

0

8

Toro E808502

See Supercession: 32120-8
(Superseded to 32120-8)

$2.99

$

In Stock, Qty 20+

0

9

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

11

Toro E513016

See Supercession: 1-513016
(Superseded to 1-513016)

$92.99

$

In Stock, Qty 20+

0

13

Toro E323532

See Supercession: 103-7975
(Superseded to 103-7975)

$68.99

$

In Stock, only 2 left!

0

14

Toro 32146-2

See Supercession: 32153-2
(Superseded to 32153-2)

$

$

Not available

15

Toro E323528

See Supercession: 1-323528
(Superseded to 1-323528)

$9.99

$

In Stock, Qty 6

0

16

Toro E633573

See Supercession: 1-633573
(Superseded to 1-633573)

$5.99

$

In Stock, Qty 12

0

18

Toro E323538

See Supercession: 1-323538
(Superseded to 1-323538)

$

$

Not available

19

Toro E634619

See Supercession: 107-4065
(Superseded to 107-4065)

$173.99

$

Usually ships in 3-6 days

0

20

Toro E403167

See Supercession: 1-403167
(Superseded to 1-403167)

$

$

Not available

21

Toro E323399

See Supercession: 1-323399
(Superseded to 1-323399)

$9.99

$

In Stock, only 1 left!

0

22

Toro 3219-6

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

23

Toro E803310

See Supercession: 1-803310
(Superseded to 1-803310)

$2.99

$

Usually ships in 3-6 days

0
