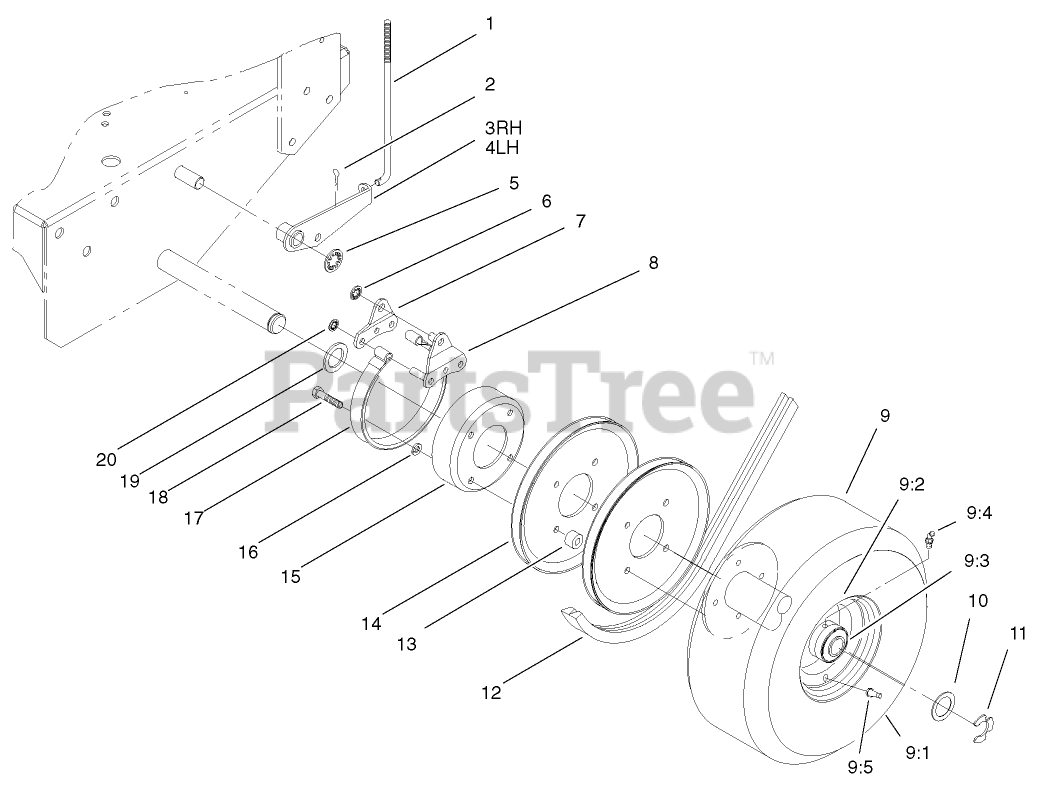

30252 - Toro 32" ProLine Walk-Behind Mower, Gear Drive, 13hp (SN: 210000001 - 210999999) (2001) Brake, Wheel Pulley And Wheel Assembly Parts Diagram

32" ProLine Walk-Behind Mower, Gear Drive, 13hp

Brake, Wheel Pulley And Wheel Assembly Parts Diagram

  • Title

1

Toro 51-4580

ROD-BRAKE

$65.99

$

Usually ships in 3-6 days

0

2

Toro 3290-307

See Supercession: 1-806003
(Superseded to 1-806003)

$1.99

$

In Stock, Qty 20+

0

3

Toro 67-6400-01

ARM-BRAKE, RH

$

$

Not available

4

Toro 67-6420-01

ARM-BRAKE, LH

$

$

Not available

5

Toro 32151-40

RING-RETAINING

$8.49

$

In Stock, only 2 left!

0

6

Toro 32151-56

RING-RETAINING, EXTERNAL

$6.99

$

Usually ships in 3-6 days

0

7

Toro 51-4660-01

PLATE-LINK, BRAKE

$41.99

$

Usually ships in 3-6 days

0

8

Toro 51-4650-01

LINK-BRAKE

$

$

Not available

9

Toro 93-1163

WHEEL AND TIRE ASM

$

$

Not available

9:1

Toro 231-94

TIRE-FRONT

$130.99

$

In Stock, only 3 left!

0

9:2

Toro 93-1181

WHEEL ASM

$

$

Not available

9:3

Toro 92-1746

BEARING-BALL

$118.99

$

Usually ships in 3-6 days

0

9:4

Toro 302-57

FITTING-GREASE

$1.99

$

Usually ships in 3-6 days

0

9:5

Toro 232-27

See Supercession: 5108
(Superseded to 5108)

$8.49

$

Usually ships in 3-6 days

0

10

Toro 10-8110

WASHER-THRUST

$1.49

$

In Stock, Qty 20+

0

11

Toro 32151-91

RING-RETAINING

$2.99

$

In Stock, Qty 12

0

12

Toro 51-4291

V-BELT

$102.99

$

In Stock, only 2 left!

0

13

Toro 51-4170

SPACER-PULLEY

$

$

Not available

14

Toro 51-4160-03

PULLEY-WHEEL

$73.99

$

Usually ships in 3-6 days

0

15

Toro 51-4180-03

DRUM-BRAKE

$84.99

$

Usually ships in 3-6 days

0

16

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

17

Toro 51-4700

BAND-BRAKE

$

$

Not available

18

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

19

Toro 51-4230

WASHER-WHEEL

$14.99

$

Usually ships in 3-6 days

0

20

Toro 32151-72

RING-RETAINING

$1.99

$

In Stock, Qty 20+

0
