30252 - Toro 32" ProLine Walk-Behind Mower, Gear Drive, 13hp (SN: 210000001 - 210999999) (2001) Engine Assembly Parts Diagram

32" ProLine Walk-Behind Mower, Gear Drive, 13hp

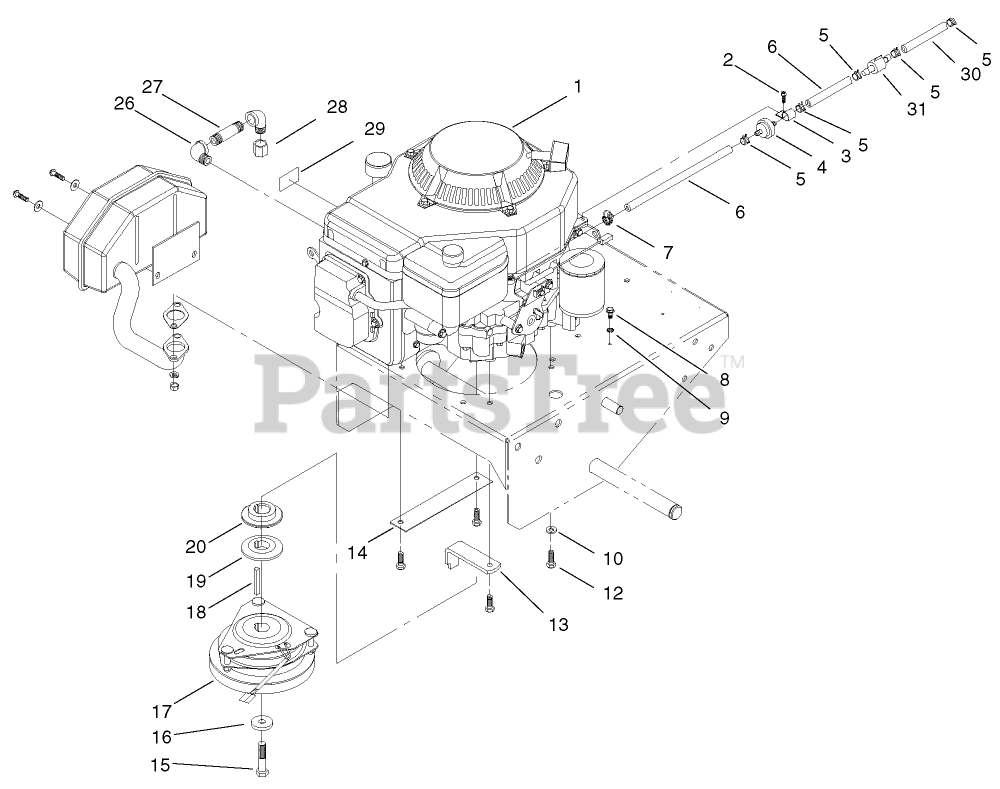

Engine Assembly Parts Diagram

  • Title

1

Engine-Kohler, Cv13t-Ps-21524

$

$

Not available

2

Toro 32144-19

SCREW-SHWH

$1.49

$

Usually ships in 3-6 days

0

3

Toro 2412-87

CLAMP-CABLE

$3.49

$

Usually ships in 3-6 days

0

4

Toro 56-6360

FILTER-FUEL

$6.99

$

In Stock, Qty 20+

0

5

Toro 2412-98

CLAMP-HOSE
(Superseded to 702355)

$107.99

$

Usually ships in 3-6 days

0

7

Toro 2412-108

CLAMP-WORM

$3.99

$

In Stock, only 1 left!

0

8

Toro 12-3270

SCREW

$3.99

$

In Stock, only 2 left!

0

9

Toro 3255-7

WASHER-LOCK/EXT

$1.99

$

In Stock, only 3 left!

0

10

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

12

Toro 33114-025

SCREW-HH

$1.99

$

In Stock, Qty 14

0

13

Toro 51-4540-03

RETAINER-CLUTCH

$25.99

$

In Stock, only 2 left!

0

14

Toro 74-0930-01

GUARD-PULLEY

$

$

Not available

15

Toro 3212-9

SCREW-HH

$13.99

$

In Stock, Qty 6

0

16

Toro 112843

WASHER

$3.99

$

In Stock, only 4 left!

0

17

Toro 54-3200

See Supercession: 105-2635
(Superseded to 105-2635)

$630.99

$

Usually ships in 3-6 days

0

18

Toro 608006

KEY-SQUARE

$5.99

$

In Stock, only 2 left!

0

19

Toro 74-0050

SHEAVE-HALF, LOWER

$25.99

$

Usually ships in 3-6 days

0

20

Toro 74-0060

SHEAVE-HALF, UPPER

$25.99

$

Usually ships in 3-6 days

0

26

Toro 74-0950

ELBOW-STREET, 90 DEG

$

$

Not available

27

Toro 289-20

NIPPLE-PIPE

$

$

Not available

28

Toro 288-4

CAP-PIPE

$23.99

$

Usually ships in 3-6 days

0

29

Toro 63-8440

DECAL-SURFACE, HOT

$

$

Not available

31

Toro 1-603770

VALVE-FUEL

$9.49

$

In Stock, only 4 left!

0
