30280 - Toro 60" Walk-Behind Mower, Floating Deck, Pistol Grip, Hydro Drive (SN: 270000001 - 270999999) (2007) CARRIER FRAME ASSEMBLY Parts Diagram

60" Walk-Behind Mower, Floating Deck, Pistol Grip, Hydro Drive

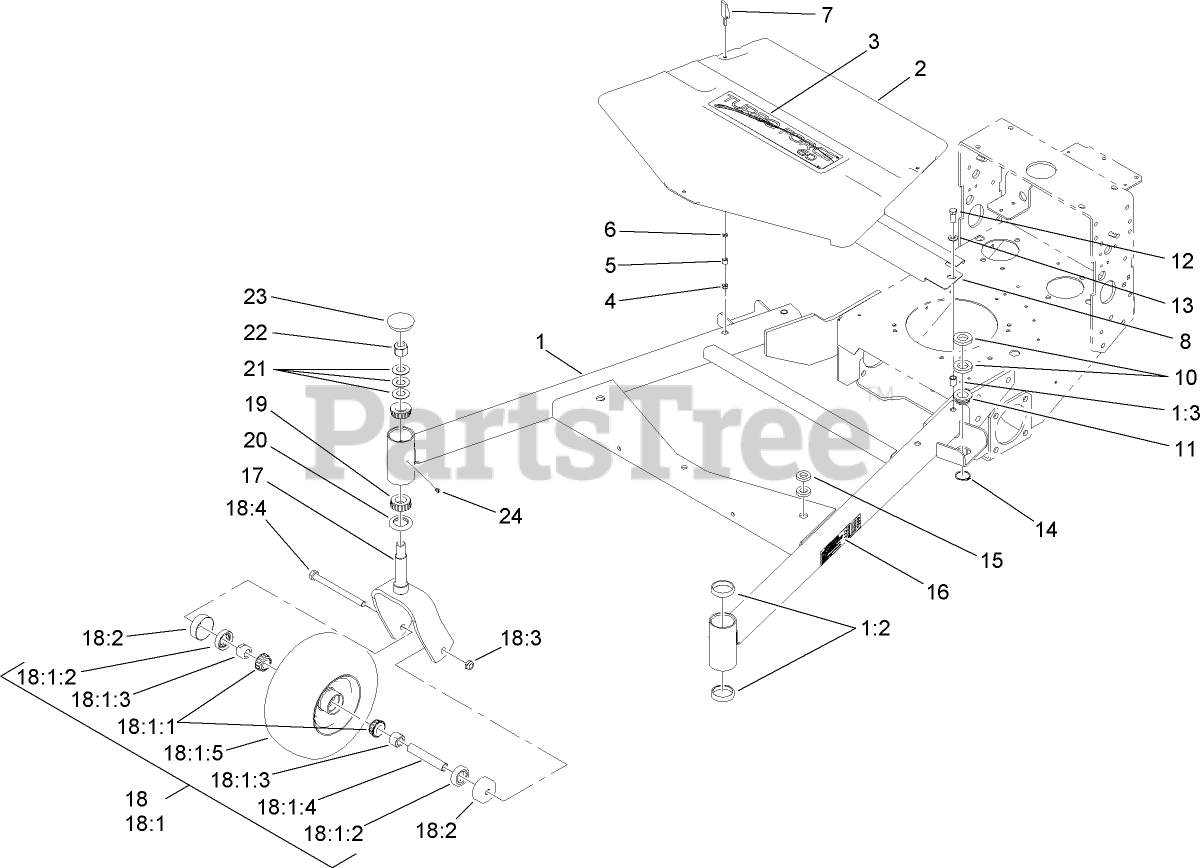

CARRIER FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 112-9986

CARRIER FRAME ASM

$

$

Not available

1:2

Toro 1-543508

CUP-BEARING

$8.99

$

In Stock, Qty 20+

0

1:3

Toro 32148-9

INSERT-NUT

$3.99

$

In Stock, only 2 left!

0

2

Toro 110-0748

COVER-CARRIER FRAME

$394.99

$

Usually ships in 3-6 days

0

3

Toro 112-9714

DECAL

$95.99

$

Usually ships in 3-6 days

0

4

Toro 1-804254

NUT-LOCK, HH

$1.49

$

In Stock, Qty 20+

0

5

Toro 106-6778

BUSHING-LATCH, SWELL

$1.99

$

In Stock, Qty 20+

0

6

Toro 99-3058

WASHER

$3.99

$

In Stock, Qty 20+

0

7

Toro 106-6777

HANDLE-LATCH, SWELL

$29.99

$

In Stock, only 1 left!

0

8

Toro 112-7051-01

SHIELD-BELT

$

$

Not available

10

Toro 104-1105

SPACER-SUPPORT, DECK

$11.99

$

In Stock, only 3 left!

0

11

Toro 1-513336

BUSHING-DECK

$27.99

$

In Stock, Qty 20+

0

12

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

13

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 32120-33

RING-RETAINING

$7.99

$

In Stock, Qty 20+

0

15

Toro 1-323539

SPACER

$2.99

$

In Stock, Qty 20+

0

16

Toro 106-0635

DECAL-HOC

$9.49

$

Usually ships in 3-6 days

0

17

Toro 103-1891-01

WLD, CASTER FORK

$131.99

$

Usually ships in 3-6 days

0

18

Toro 112-3810

WHEEL/TIRE AND BEARING ASM

$235.99

$

In Stock, only 3 left!

0

18:1

WHEEL AND BEARING ASM

$

$

Not available

18:1:1

Toro 1-633585

BEARING-CONE, TAPER

$25.99

$

In Stock, Qty 20+

0

18:1:2

Toro 103-0063

SEAL-CASTER

$10.99

$

In Stock, Qty 20+

0

18:1:3

Toro 103-3051

SPACER-NUT

$9.49

$

In Stock, Qty 20+

0

18:1:4

Toro 103-3157

AXLE-CASTER
(Superseded to 126-5359)

$20.99

$

In Stock, only 2 left!

0

18:1:5

Toro 110-9965

WHEEL AND TIRE ASM

$197.99

$

In Stock, only 3 left!

0

18:2

Toro 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 20+

0

18:3

Toro 3296-45

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

18:4

Toro 325-20

SCREW-HH

$8.49

$

In Stock, Qty 10

0

19

Toro 1-543509

BEARING-ROLLER, TAPERED

$15.99

$

In Stock, Qty 20+

0

20

Toro 1-543511

SEAL-GREASE

$12.99

$

In Stock, Qty 14

0

21

Toro 1-633508

WASHER-BELLVILLE

$3.99

$

In Stock, Qty 20+

0

22

Toro 3296-51

NUT-LOCK, NI

$7.49

$

In Stock, Qty 20+

0

23

Toro 103-4882

CAP-GREASE

$8.99

$

In Stock, Qty 20+

0

24

Toro 1-811010

PLUG

$5.99

$

In Stock, only 3 left!

0
