30317 - Toro 36" ProLine Walk-Behind Mower, T-Bar, Gear Drive, 15hp (SN: 240000001 - 240002000) (2004) Fuel Tank Assembly Parts Diagram

36" ProLine Walk-Behind Mower, T-Bar, Gear Drive, 15hp

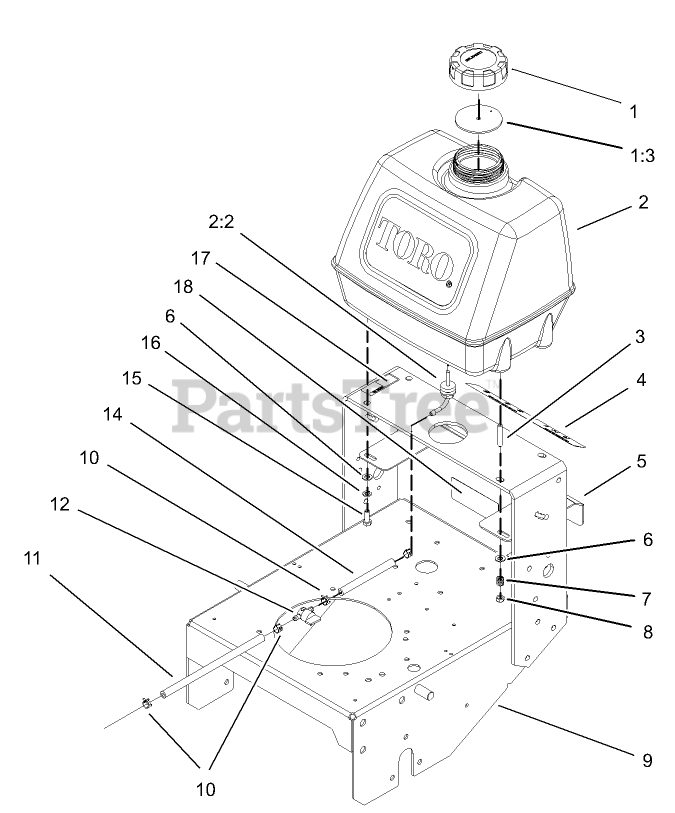

Fuel Tank Assembly Parts Diagram

  • Title

1

Toro 88-3980

GAS CAP ASM

$37.99

$

In Stock, Qty 12

0

1:3

Toro 88-4010

GASKET-CAP, GAS

$40.99

$

In Stock, only 2 left!

0

2

Toro 106-0730

FUEL TANK ASM

$

$

Not available

2:2

Toro 103-2605

FITTING-FUEL, BULKHEAD

$41.99

$

In Stock, Qty 6

0

3

Toro 104-8121

STUD-THREADED

$

$

Not available

4

Toro 106-5494

DECAL-GROUND SPEED

$

$

Not available

5

Toro 104-8102-01

PLATE-GATE, SHIFT

$

$

Not available

6

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

7

Toro 1-633349

SPRING-TANK, FUEL

$5.99

$

In Stock, Qty 17

0

8

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

9

Toro 106-0546-01

GEAR FRAME ASM

$

$

Not available

10

Toro 2412-98

CLAMP-HOSE
(Superseded to 702355)

$107.99

$

Usually ships in 3-6 days

0

11

Toro 47-2982

See Supercession: 110-4894
(Superseded to 110-4894)

$10.99

$

Usually ships in 3-6 days

0

12

Toro 1-603770

VALVE-FUEL

$9.49

$

In Stock, only 4 left!

0

14

Toro 47-2966

See Supercession: 109-0678
(Superseded to 109-0678)

$5.99

$

Usually ships in 3-6 days

0

15

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 16

0

16

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

17

Toro 95-2814

DECAL-SHUT OFF, FUEL

$

$

Not available

18

Toro 98-0776

DECAL-CAUTION

$

$

Not available
