30333 - Toro 52" ProLine Walk-Behind Mower, Gear Drive, 15hp (SN: 210000001 - 210999999) (2001) Spindle, Idler Pulley, And Belt Assembly Parts Diagram

52" ProLine Walk-Behind Mower, Gear Drive, 15hp

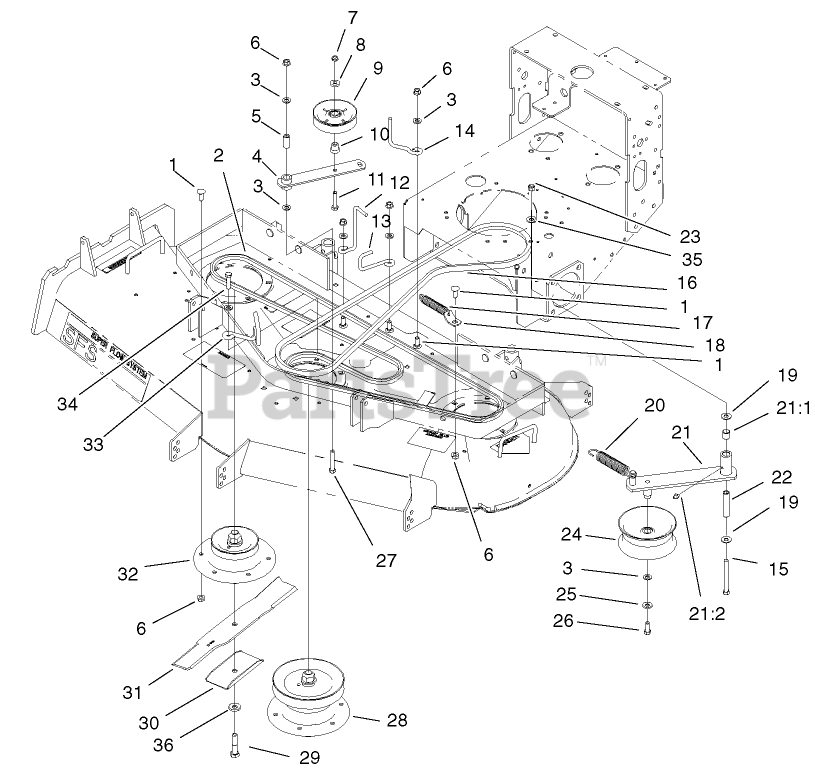

Spindle, Idler Pulley, And Belt Assembly Parts Diagram

  • Title

1

Toro 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

2

Toro 104-6397

V-BELT

$292.99

$

In Stock, only 1 left!

0

3

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Toro 104-6375

IDLER ARM ASM

$120.99

$

Usually ships in 3-6 days

0

5

Toro 51-3640

SLEEVE

$18.99

$

In Stock, only 2 left!

0

6

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

7

Toro 3296-5

NUT-HEX

$3.99

$

In Stock, Qty 15

0

8

Toro 7-0081

WASHER-FLAT

$1.49

$

In Stock, Qty 9

0

9

Toro 65-5940

PULLEY-IDLER

$41.99

$

In Stock, Qty 5

0

10

Toro 104-6379

BUSHING-PULLEY

$

$

Not available

11

Toro 3211-8

SCREW-HH

$4.49

$

In Stock, Qty 9

0

12

Toro 98-5980

GUIDE-BELT

$90.99

$

Usually ships in 3-6 days

0

13

Toro 104-6396

GUIDE-BELT

$

$

Not available

14

Toro 52-4780

ROD-BELT

$15.99

$

In Stock, Qty 5

0

15

Toro 323-42

SCREW-HH
(Superseded to 325-14)

$4.99

$

In Stock, only 2 left!

0

16

Toro 104-6398

V-BELT-PTO

$248.99

$

In Stock, only 1 left!

0

17

Toro 51-3650

SPRING-EXTENSION

$27.99

$

In Stock, only 2 left!

0

18

Toro 104-6374

PLATE-SPRING

$22.99

$

Usually ships in 3-6 days

0

19

Toro 1-809107

WASHER-HARDENED

$5.99

$

In Stock, only 2 left!

0

20

Toro 104-8161

See Supercession: 105-8443
(Superseded to 105-8443)

$42.99

$

In Stock, only 2 left!

0

21

Toro 104-6370

DISCONTINUED

$

$

Not available

21:1

Toro 1-513034

SLEEVE-BEARING

$7.99

$

In Stock, Qty 20+

0

21:2

Toro 302-5

FITTING-GREASE

$3.99

$

In Stock, Qty 20+

0

22

Toro 104-6377

TUBE-IDLER

$23.99

$

In Stock, only 2 left!

0

23

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

24

Toro 1-413099

See Supercession: 116-4666
(Superseded to 116-4666)

$75.99

$

In Stock, Qty 16

0

25

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

26

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

27

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

28

Toro 104-6315

See Supercession: 106-0802
(Superseded to 106-0802)

$

$

Not available

29

Toro 44-2200

SCREW-BLADE

$5.49

$

In Stock, Qty 13

0

30

Toro 92-9820

STIFFENER-BLADE

$71.99

$

Usually ships in 3-6 days

0

31

Toro 27-0990

See Supercession: 27-0990-03
(Superseded to 27-0990-03)

$22.99

$

In Stock, Qty 17

0

32

Toro 104-6317

See Supercession: 106-0804
(Superseded to 106-0804)

$769.99

$

Usually ships in 3-6 days

0

33

Toro 105-0850

GUIDE-BELT

$42.99

$

Usually ships in 3-6 days

0

34

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

35

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

36

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 11

0
