30432 - Toro 52" ProLine Walk-Behind Mower, Pistol Grip, Gear Drive, 17hp (SN: 230000001 - 230999999) (2003) Upper Handle Assembly Parts Diagram

52" ProLine Walk-Behind Mower, Pistol Grip, Gear Drive, 17hp

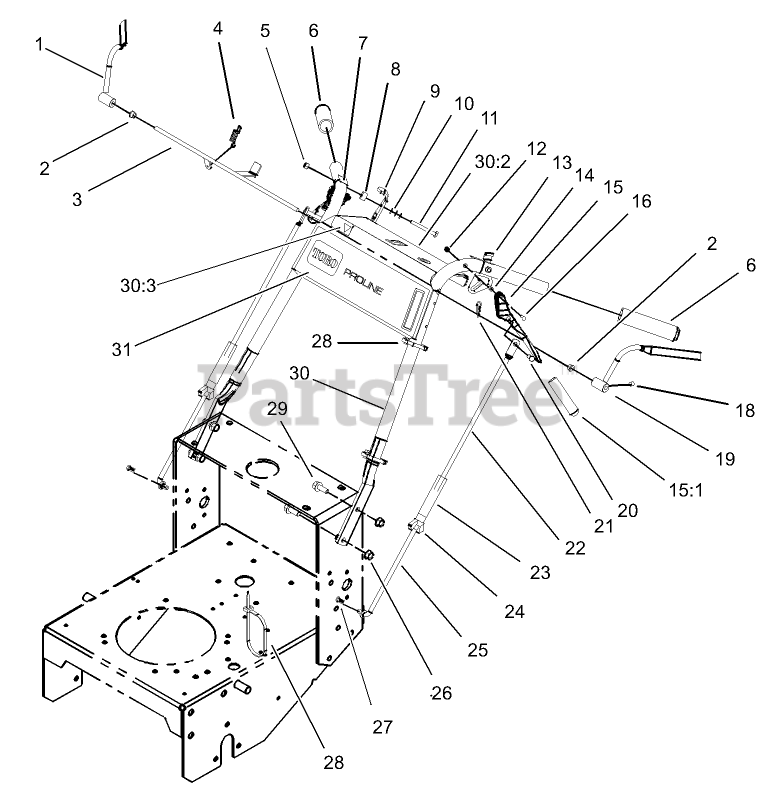

Upper Handle Assembly Parts Diagram

  • Title

1

Toro 106-5486

RH OPERATOR PRESENCE CONTROL LEVER ASM

$65.99

$

Usually ships in 3-6 days

0

2

Toro 1-303365

BUSHING-NYLON

$5.99

$

In Stock, Qty 20+

0

3

Toro 104-9803

ROD ASM

$169.99

$

Usually ships in 3-6 days

0

4

Toro 1-303363

SPRING-EXTENSION

$7.49

$

In Stock, Qty 15

0

5

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

6

Toro 104-9838

GRIP-FOAM

$6.49

$

In Stock, Qty 20+

0

7

Toro 105-4111

DECAL-LOCK, NEUTRAL

$

$

Not available

8

Toro 1-323549

SPACER

$14.99

$

Usually ships in 3-6 days

0

9

Toro 106-5521

LATCH-THUMB, RH

$

$

Not available

10

Toro 1-303435

WASHER-SPRING

$1.99

$

In Stock, Qty 20+

0

11

Toro 321-18

SCREW-HH

$2.49

$

In Stock, Qty 17

0

12

Toro 1-803001

NUT-PUSH

$1.49

$

In Stock, Qty 20+

0

13

Toro 106-5520

LATCH-THUMB, LH

$

$

Not available

14

Toro 1-806340

PIN-ROLL

$5.99

$

In Stock, Qty 8

0

15

Toro 1-302006

DRIVE LEVER ASM

$63.99

$

In Stock, Qty 7

0

15:1

Toro 1-303021

GRIP-LEVER, DRIVE

$1.99

$

In Stock, Qty 20+

0

16

Toro 1-808250

PIN-LEVER, DRIVE

$2.99

$

In Stock, Qty 20+

0

18

Toro 1-803322

SCREW-SET

$1.49

$

In Stock, Qty 20+

0

19

Toro 106-5485

LH OPERATOR PRESENCE CONTROL LEVER ASM

$72.99

$

Usually ships in 3-6 days

0

20

Toro 1-808286

PIN-CLEVIS

$5.99

$

In Stock, Qty 20+

0

21

Toro 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

22

Toro 106-0613

LINKAGE-DRIVE WHEEL

$

$

Not available

23

Toro 95-1504

TURNBUCKLE

$80.99

$

Usually ships in 3-6 days

0

24

Toro 32103-3

NUT-WING

$1.99

$

Usually ships in 3-6 days

0

25

Toro 95-1506

ROD-CONTROL, LOWER

$

$

Not available

26

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

27

Toro 3290-307

See Supercession: 1-806003
(Superseded to 1-806003)

$1.99

$

In Stock, Qty 20+

0

28

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

29

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

30

Toro 105-3174

GEAR/PG HANDLE ASM

$

$

Not available

30:2

Toro 106-5514

DECAL-CONTROL PANEL

$

$

Not available

30:3

Toro 98-4387

DECAL-PROTECTION, EAR

$7.99

$

Usually ships in 3-6 days

0

31

Toro 106-5501

DECAL-CONTROL, THROTTLE

$

$

Not available
