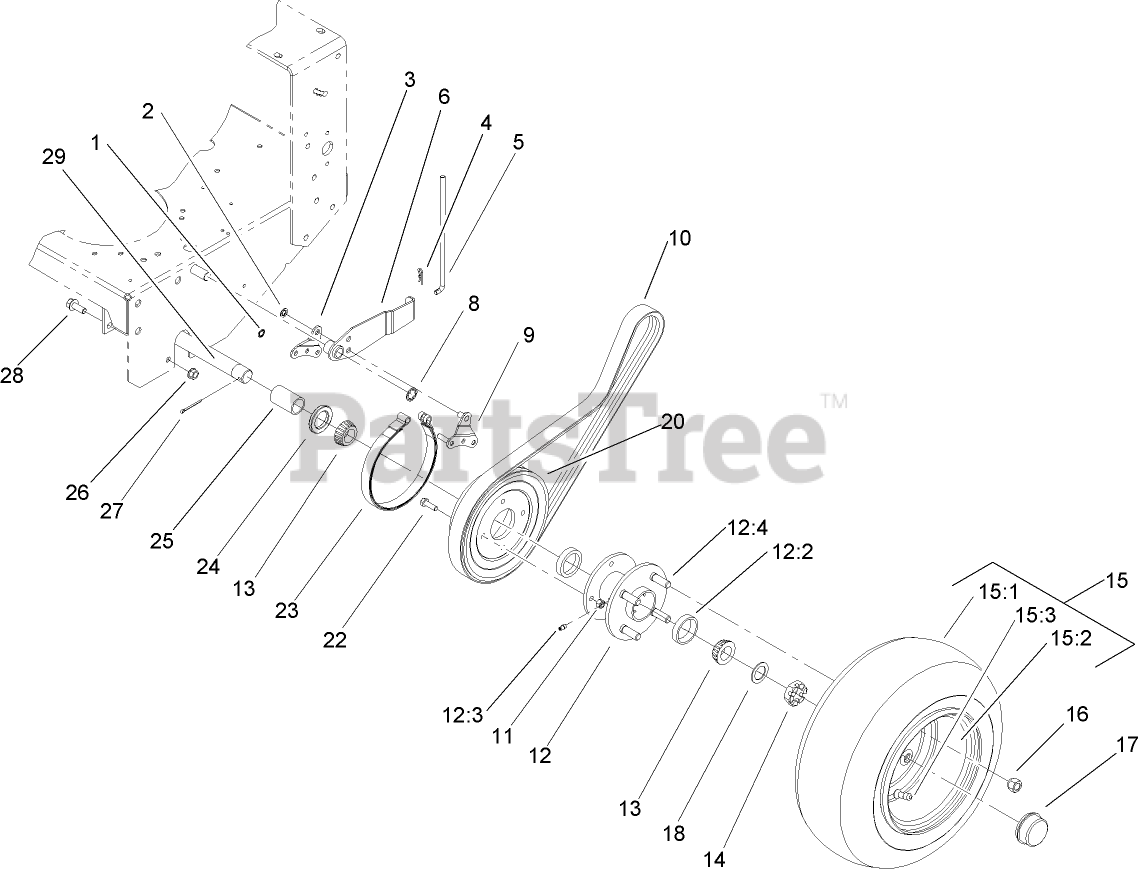

30438 - Toro 52" ProLine Walk-Behind Mower, Pistol Grip, Gear Drive, 17hp (SN: 240000001 - 240999999) (2004) Wheel Drive and Brake Assembly Parts Diagram

52" ProLine Walk-Behind Mower, Pistol Grip, Gear Drive, 17hp

Wheel Drive and Brake Assembly Parts Diagram

  • Title

1

Toro 32151-56

RING-RETAINING, EXTERNAL

$6.99

$

Usually ships in 3-6 days

0

2

Toro 32151-72

RING-RETAINING

$1.99

$

In Stock, Qty 20+

0

3

Toro 106-8792

PLATE-LINK, BRAKE

$27.99

$

Usually ships in 3-6 days

0

4

Toro 3290-307

See Supercession: 1-806003
(Superseded to 1-806003)

$1.99

$

In Stock, Qty 20+

0

5

Toro 51-4580

ROD-BRAKE

$65.99

$

Usually ships in 3-6 days

0

6

Toro 106-8779-01

BRAKE ARM ASM

$

$

Not available

8

Toro 32151-40

RING-RETAINING

$8.49

$

In Stock, only 2 left!

0

9

Toro 106-8773

BRAKE LINK ASM

$79.99

$

Usually ships in 3-6 days

0

10

Toro 51-4290

V-BELT

$117.99

$

In Stock, Qty 5

0

11

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

12

Toro 1-413333

HUB/WHEEL ASM

$

$

Not available

12:2

Toro 254-72

BEARING-CUP, TAPERED

$11.99

$

In Stock, Qty 20+

0

12:3

Toro 302-19

FITTING-GREASE

$2.99

$

In Stock, Qty 20+

0

12:4

Toro 1-633926

STUD-WHEEL

$4.99

$

In Stock, Qty 20+

0

13

Toro 254-94

BEARING-CONE, TAPERED

$9.99

$

In Stock, Qty 11

0

14

Toro 1-809082

NUT-SHH

$15.99

$

In Stock, only 3 left!

0

15

Toro 106-0892

WHEEL AND TIRE ASM

$334.99

$

Usually ships in 3-6 days

0

15:1

Toro 104-6322

TIRE

$144.99

$

In Stock, only 2 left!

0

15:2

Toro 106-0893

WHEEL

$188.99

$

Usually ships in 3-6 days

0

15:3

Toro 232-27

See Supercession: 5108
(Superseded to 5108)

$8.49

$

In Stock, only 2 left!

0

16

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, Qty 20+

0

17

Toro 241-119

CAP-DUST

$15.99

$

In Stock, only 2 left!

0

18

Toro 1-523157

WASHER-SPACER

$1.99

$

In Stock, Qty 20+

0

20

Toro 106-5544

PULLEY-WHEEL

$

$

Not available

22

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

23

Toro 1-323262

BAND-BRAKE

$98.99

$

In Stock, Qty 13

0

24

Toro 1-543511

SEAL-GREASE

$12.99

$

In Stock, Qty 14

0

25

Toro 104-1197

SPACER-WHEEL

$19.99

$

Usually ships in 3-6 days

0

26

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

27

Toro 1-806800

PIN-COTTER

$2.99

$

In Stock, Qty 20+

0

28

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

29

Toro 104-1196-01

AXLE ASM

$447.99

$

Usually ships in 3-6 days

0
