30441 - Toro 52" ProLine Walk-Behind Mower, Pistol Grip, Hydro Drive, 17hp (SN: 250000001 - 250999999) (2005) Spindle, Pulley and Belt Assembly Parts Diagram

52" ProLine Walk-Behind Mower, Pistol Grip, Hydro Drive, 17hp

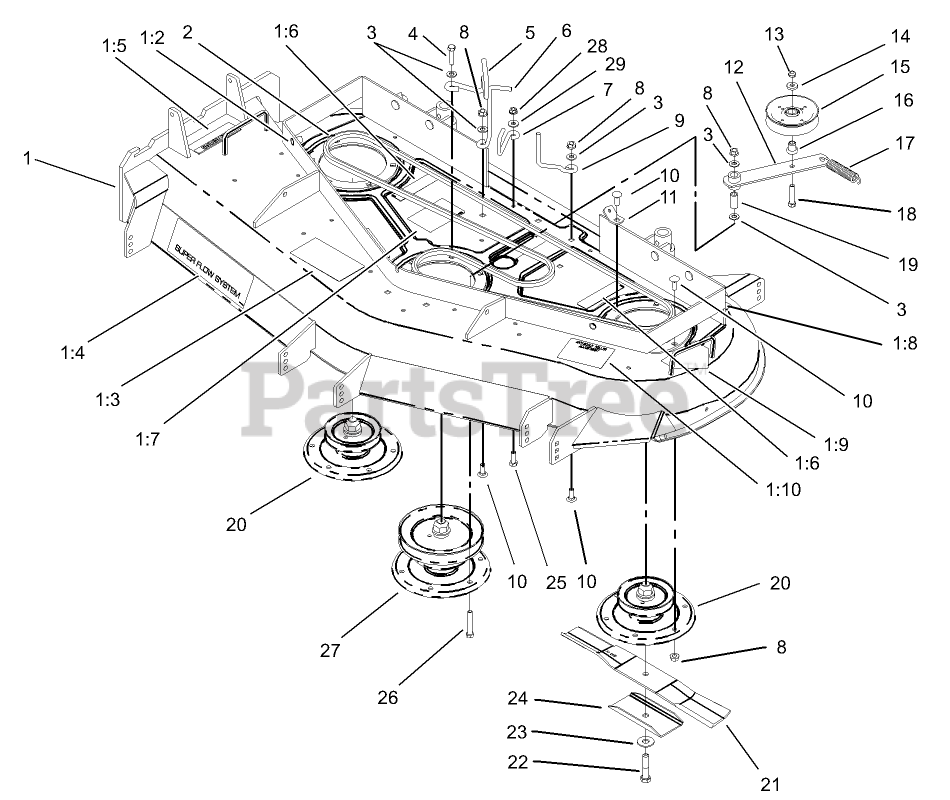

Spindle, Pulley and Belt Assembly Parts Diagram

  • Title

1

Toro 106-0619

DECK ASM

$4719.99

$

Usually ships in 3-6 days

0

1:2

Toro 32148-10

NUT-CLINCH

$9.49

$

Usually ships in 3-6 days

0

1:3

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$11.99

$

In Stock, Qty 6

0

1:4

Toro 106-0705

DECAL

$

$

Not available

1:5

Toro 93-1122

DECAL-DANGER

$10.99

$

In Stock, Qty 9

0

1:6

Toro 67-5360

DECAL-DANGER

$17.99

$

In Stock, only 1 left!

0

1:7

Toro 104-8186

DECAL-ROUTING, BELT

$10.99

$

Usually ships in 3-6 days

0

1:8

Toro 68-8340

DECAL-TORQUE

$23.99

$

In Stock, only 2 left!

0

1:9

Toro 43-8480

DECAL-DANGER

$7.99

$

In Stock, only 3 left!

0

1:10

Toro 106-5532

DECAL-ANTI SCALP

$

$

Not available

2

Toro 104-6397

V-BELT

$292.99

$

In Stock, only 1 left!

0

3

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

5

Toro 105-0850

GUIDE-BELT

$42.99

$

Usually ships in 3-6 days

0

6

Toro 98-5980

GUIDE-BELT

$90.99

$

Usually ships in 3-6 days

0

7

Toro 104-6396

GUIDE-BELT

$

$

Not available

8

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

9

Toro 52-4780

ROD-BELT

$15.99

$

In Stock, Qty 5

0

10

Toro 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

11

Toro 104-6374

PLATE-SPRING

$22.99

$

Usually ships in 3-6 days

0

12

Toro 104-6375

IDLER ARM ASM

$120.99

$

Usually ships in 3-6 days

0

13

Toro 3296-5

NUT-HEX

$3.99

$

In Stock, Qty 15

0

14

Toro 7-0081

WASHER-FLAT

$1.49

$

In Stock, Qty 9

0

15

Toro 65-5940

PULLEY-IDLER

$41.99

$

In Stock, Qty 5

0

16

Toro 104-6379

BUSHING-PULLEY

$

$

Not available

17

Toro 51-3650

SPRING-EXTENSION

$27.99

$

In Stock, only 2 left!

0

18

Toro 3211-8

SCREW-HH

$4.49

$

In Stock, Qty 9

0

19

Toro 51-3640

SLEEVE

$18.99

$

In Stock, only 2 left!

0

20

Toro 106-0787

SPINDLE HOUSING ASM

$645.99

$

Usually ships in 3-6 days

0

21

Toro 27-0990

See Supercession: 27-0990-03
(Superseded to 27-0990-03)

$22.99

$

In Stock, Qty 17

0

22

Toro 44-2200

SCREW-BLADE

$5.49

$

In Stock, Qty 13

0

23

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 11

0

24

Toro 92-9820

STIFFENER-BLADE

$71.99

$

Usually ships in 3-6 days

0

25

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

26

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

27

Toro 106-0785

SPINDLE HOUSING ASM

$

$

Not available

28

Toro 32128-25

NUT-HF

$3.99

$

In Stock, Qty 5

0

29

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
