30488 - Toro 48" Walk-Behind Mower, Floating Deck, Split Lever, Hydro Drive (SN: 314000001 - 314999999) (2014) HYDRAULIC SYSTEM ASSEMBLY Parts Diagram

48" Walk-Behind Mower, Floating Deck, Split Lever, Hydro Drive

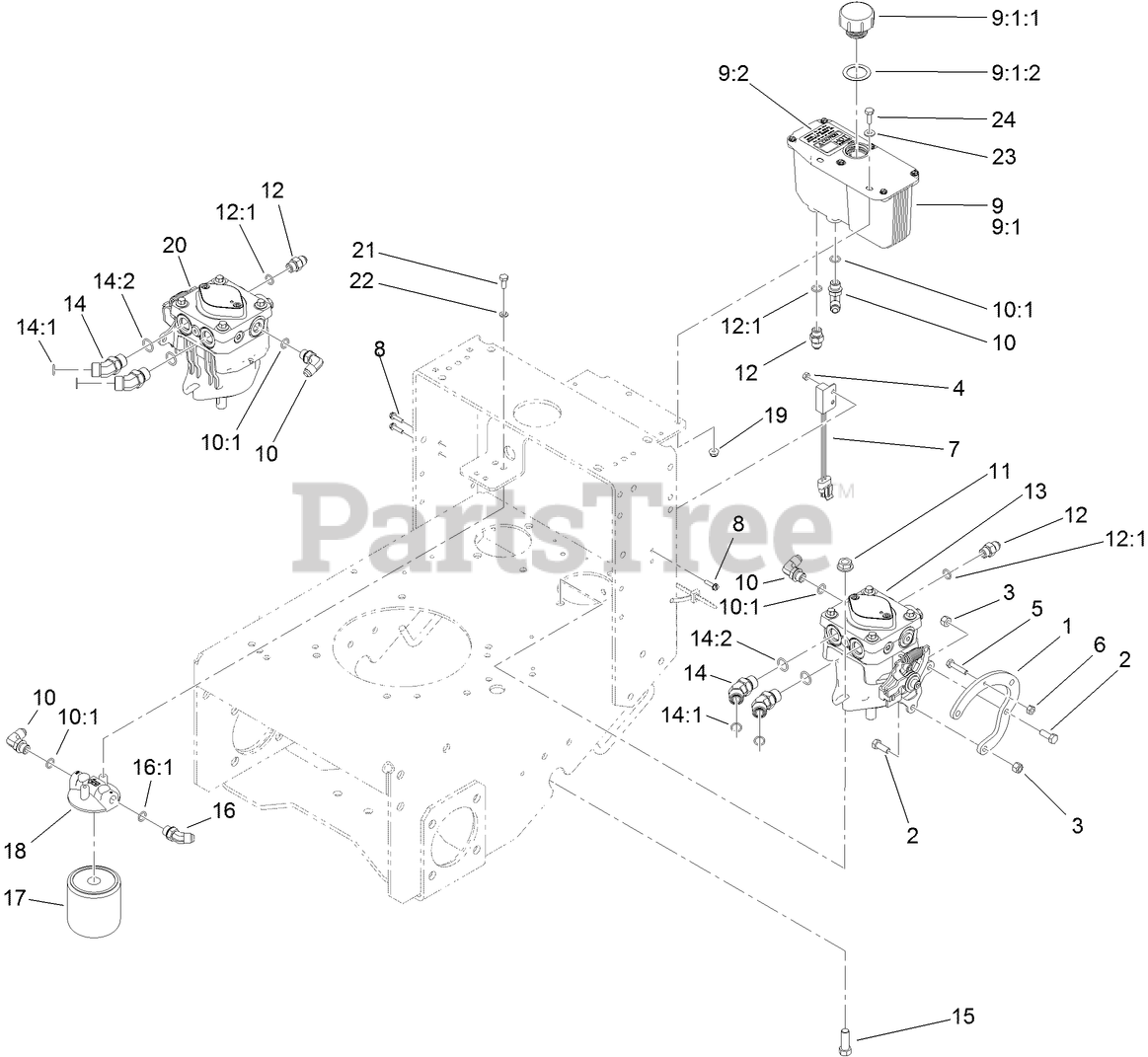

HYDRAULIC SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Toro 114-0227

BRACKET-ADAPTER, PUMP

$87.99

$

Usually ships in 3-6 days

0

2

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 17

0

3

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

4

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 114-0282

SCREW-HH

$5.49

$

In Stock, only 2 left!

0

6

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 9

0

7

Toro 105-0023

SWITCH-PROXIMITY

$158.99

$

In Stock, only 1 left!

0

8

Toro 32105-13

SCREW-HWH

$1.99

$

In Stock, Qty 5

0

9

Toro 107-8433

HYD RESERVOIR ASM

$432.99

$

Usually ships in 3-6 days

0

9:1

Reservoir-HYD

Note: Not serviced separately

$

$

Not available

9:1:1

Toro 103-1948

CAP-RESERVOIR, HYD

$37.99

$

In Stock, Qty 20+

0

9:1:2

Toro 103-1949

GASKET-CAP
(Superseded to 142-2792)

$1.49

$

In Stock, Qty 20+

0

9:2

Toro 115-4212

DECAL-WARNING

$13.99

$

Usually ships in 3-6 days

0

10

Toro 353-374

FITTING-ELBOW, 90 DEG
(Superseded to 103-1802)

$27.99

$

In Stock, only 2 left!

0

10:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

11

Toro 32128-42

NUT-HF

$1.49

$

Usually ships in 3-6 days

0

12

Toro 353-384

FITTING-STRAIGHT

$6.99

$

Usually ships in 3-6 days

0

12:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

13

Toro 115-4480

HYD PUMP ASM

$1619.99

$

Usually ships in 3-6 days

0

14

Toro 340-101

FITTING-HYD, 45 DEG

$41.99

$

Usually ships in 3-6 days

0

14:1

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

14:2

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

15

Toro 324-5

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

16

Toro 353-212

FITTING-ELBOW, 45 DEG

$27.99

$

Usually ships in 3-6 days

0

16:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

17

Toro 1-633750

FILTER-OIL, HYD

$28.99

$

In Stock, Qty 20+

0

17

Toro 1-633752

FILTER-OIL, HYD (WINTER)

$37.99

$

In Stock, only 3 left!

0

18

Toro 104-7836

HEAD-FILTER

$19.99

$

In Stock, only 1 left!

0

19

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

20

Toro 115-4481

HYD PUMP ASM

$1619.99

$

Usually ships in 3-6 days

0

21

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

22

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

23

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 5

0
