30524 - Toro 36" ProLine Walk-Behind Mower, Pistol Grip, Hydro Drive, 15hp (SN: 220000001 - 220999999) (2002) Upper Handle Assembly Parts Diagram

36" ProLine Walk-Behind Mower, Pistol Grip, Hydro Drive, 15hp

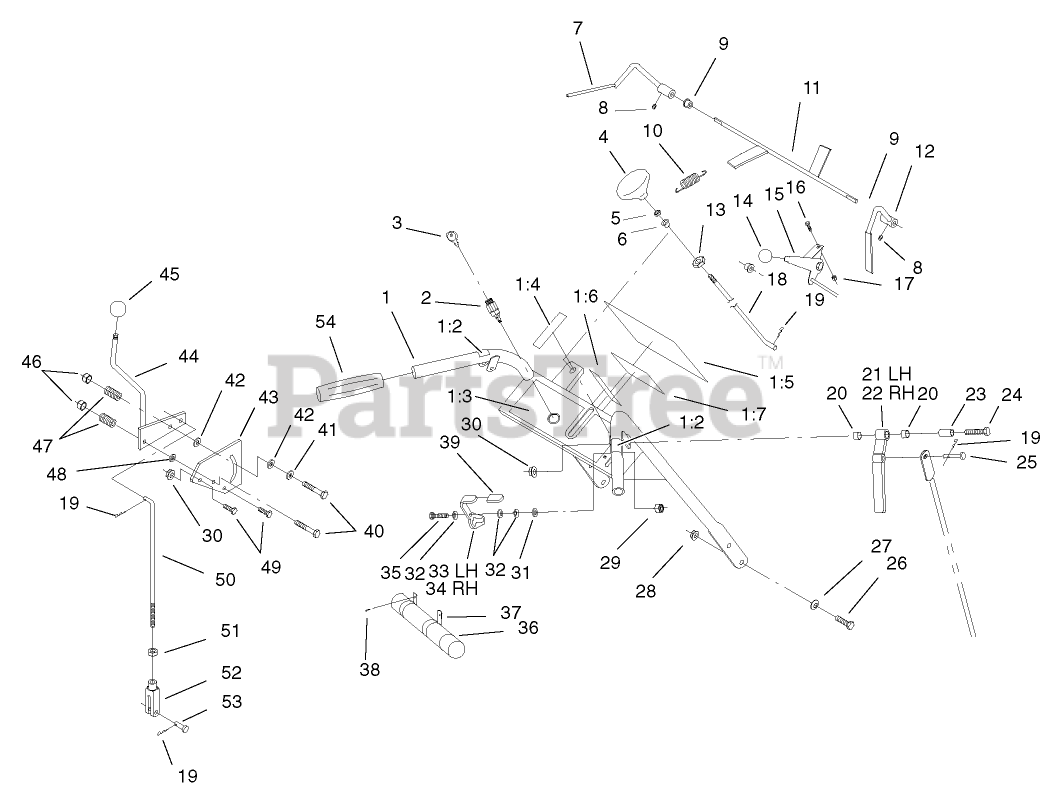

Upper Handle Assembly Parts Diagram

  • Title

1

Toro 106-2732

HANDLE ASM

$

$

Not available

1:2

Toro 105-4110

See Supercession: 130-8370
(Superseded to 130-8370)

$9.49

$

Usually ships in 3-6 days

0

1:3

Toro 106-2738

DECAL-WARNING

$37.99

$

Usually ships in 3-6 days

0

1:4

Toro 106-2733

DECAL-THROTTLE

$11.99

$

Usually ships in 3-6 days

0

1:5

Toro 106-2735

DECAL-PROLINE

$

$

Not available

1:6

Toro 95-5537

DECAL-ENGAGE, DECK

$11.99

$

Usually ships in 3-6 days

0

1:7

Toro 106-2743

DECAL-CAUTION, BRAKE

$13.99

$

Usually ships in 3-6 days

0

2

Toro 1-403121

SWITCH & KEY (INCLUDES NUT & WASHER)

$25.99

$

In Stock, only 2 left!

0

3

Toro 63-8360

KEY-IGNITION

$6.49

$

In Stock, Qty 20+

0

4

Toro 1-323134

KNOB-PUSH / PULL

$31.99

$

Usually ships in 3-6 days

0

5

Toro 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

6

Toro 1-323143

BEARING-NYLON

$7.49

$

In Stock, only 4 left!

0

7

Toro 1-412183-03

LEVER-LH

$87.99

$

In Stock, only 4 left!

0

8

Toro 1-803322

SCREW-SET

$1.49

$

In Stock, Qty 20+

0

9

Toro 1-303365

BUSHING-NYLON

$5.99

$

In Stock, Qty 20+

0

10

Toro 1-303363

SPRING-EXTENSION

$7.49

$

In Stock, Qty 15

0

11

Toro 106-2717-03

ROD-CONTROL, OPERATOR PRESENCE

$71.99

$

Usually ships in 3-6 days

0

12

Toro 1-412185-03

LEVER-RH

$91.99

$

In Stock, only 3 left!

0

13

Toro 1-323142

NUT-PUSH

$2.99

$

Usually ships in 3-6 days

0

14

Toro 1-513592

KNOB-BALL

$7.49

$

In Stock, Qty 16

0

15

Toro 1-633696

THROTTLE CABLE ASM

$68.99

$

In Stock, Qty 18

0

16

Toro 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0

17

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

18

Toro 1-323181

LINKAGE-BLADE

$136.99

$

Usually ships in 3-6 days

0

19

Toro 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

20

Toro 1-413152

BUSHING-SLEEVE

$2.99

$

In Stock, Qty 20+

0

21

Toro 103-0218

LH DRIVE LEVER ASM

$176.99

$

Usually ships in 3-6 days

0

22

Toro 103-0219

RH DRIVE LEVER ASM

$176.99

$

Usually ships in 3-6 days

0

23

Toro 1-603749

BUSHING-LEVER, DRIVE

$8.99

$

In Stock, Qty 5

0

24

Toro 321-9

SCREW-HH

$5.49

$

In Stock, only 3 left!

0

25

Toro 1-613055

PIN-CLEVIS

$9.99

$

Usually ships in 3-6 days

0

26

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

27

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

28

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

29

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

30

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

31

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

32

Toro 1-303435

WASHER-SPRING

$1.99

$

In Stock, Qty 20+

0

33

Toro 1-413148

LATCH-LEVER, LH DRIVE

$

$

Not available

34

Toro 1-413150

LATCH-LEVER, RH DRIVE
(Superseded to 137-9514)

$50.99

$

Usually ships in 3-6 days

0

35

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

36

Toro 74-0720

TUBE-MANUAL

$27.99

$

Usually ships in 3-6 days

0

37

Toro 2412-120

CLAMP-R

$8.49

$

Usually ships in 3-6 days

0

38

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

39

Toro 1-303019

GRIP-LATCH

$2.99

$

In Stock, only 2 left!

0

40

Toro 322-10

SCREW-HH

$0.99

$

In Stock, only 4 left!

0

41

Toro 1-603716

WASHER-FRICTION

$5.99

$

In Stock, Qty 20+

0

42

Toro 1-323244

WASHER-FRICTION
(Superseded to 93-1633)

$3.49

$

In Stock, only 2 left!

0

43

Toro 1-603730

PLATE-LEVER, SHIFTER

$42.99

$

Usually ships in 3-6 days

0

44

Toro 106-2748

LEVER-SHIFT

$127.99

$

In Stock, only 2 left!

0

45

Toro 1-603175

KNOB-BALL

$12.99

$

In Stock, only 3 left!

0

46

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

47

Toro 1-323245

SPRING-COMPRESSION

$7.49

$

In Stock, Qty 20+

0

48

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

49

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

50

Toro 1-323522

ROD-CONTROL, SPEED

$15.99

$

Usually ships in 3-6 days

0

51

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 19

0

52

Toro 1-303105

YOKE-ADJUSTABLE

$13.99

$

In Stock, Qty 7

0

53

Toro 1-808280

PIN-CLEVIS

$2.99

$

In Stock, Qty 20+

0

54

Toro 1-303097

See Supercession: 104-9838
(Superseded to 104-9838)

$6.49

$

In Stock, Qty 20+

0
