30526 - Toro 48" ProLine Walk-Behind Mower, Pistol Grip, Hydro Drive, 15hp (SN: 220000001 - 220999999) (2002) Hydraulic Assembly Parts Diagram

48" ProLine Walk-Behind Mower, Pistol Grip, Hydro Drive, 15hp

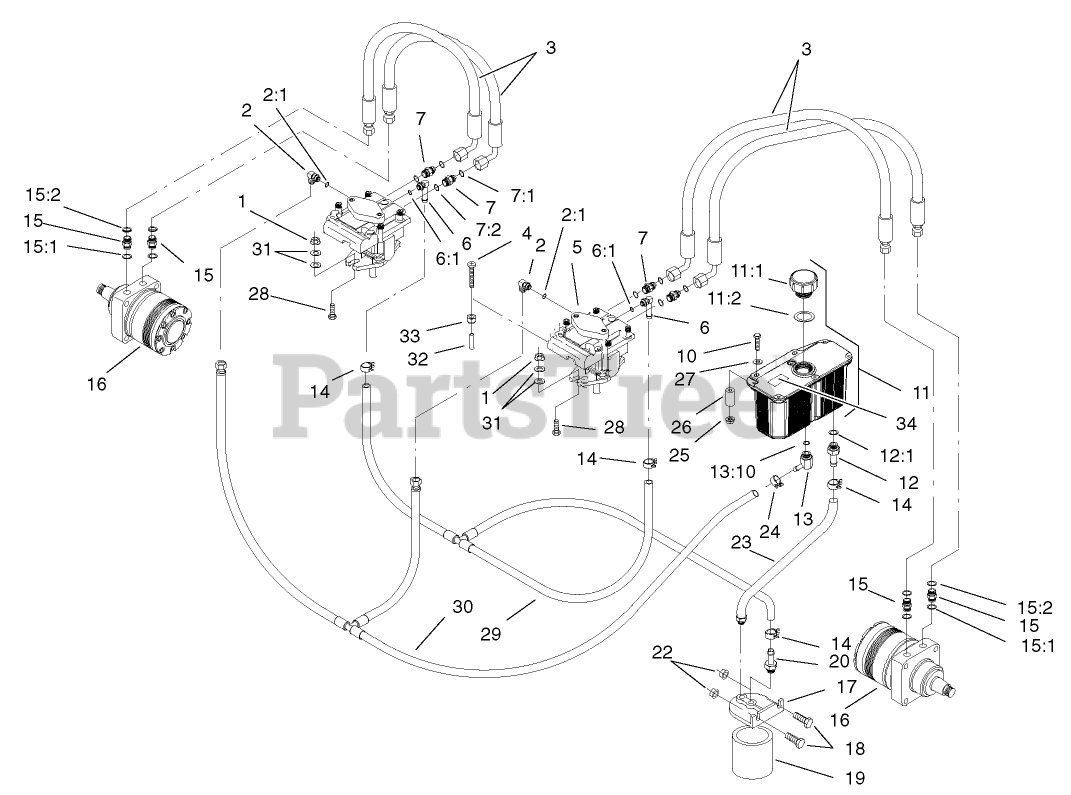

Hydraulic Assembly Parts Diagram

  • Title

1

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

2

Toro 1-513840

FITTING-90 DEG

$29.99

$

Usually ships in 3-6 days

0

2:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

3

Toro 1-403102

HOSE-PRESSURE, HIGH

$136.99

$

In Stock, only 2 left!

0

4

Toro 1-801063

SCREW

$5.99

$

In Stock, only 2 left!

0

5

Toro 1-613042

PUMP

$1566.99

$

Usually ships in 3-6 days

0

6

Toro 1-603989

FITTING

$42.99

$

Usually ships in 3-6 days

0

6:1

Toro 237-78

O-RING

$4.99

$

In Stock, Qty 11

0

7

Toro 1-603990

FITTING-STRAIGHT

$19.99

$

In Stock, only 4 left!

0

7:1

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

7:2

Toro 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

10

Toro 321-15

SCREW-HH

$1.49

$

In Stock, Qty 14

0

11

Toro 103-1946

Reservoir-HYD

$

$

Not available

11:1

Toro 103-1948

CAP-RESERVOIR, HYD

$37.99

$

In Stock, Qty 20+

0

11:2

Toro 103-1949

GASKET-CAP
(Superseded to 142-2792)

$1.49

$

In Stock, Qty 20+

0

12

Toro 103-1912

ADAPTER-STRAIGHT

$26.99

$

Usually ships in 3-6 days

0

12:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

13

Toro 103-2112

ELBOW-45 DEG

$

$

Not available

13:10

Toro 1-603921

See Supercession: 237-42
(Superseded to 237-42)

$3.49

$

In Stock, Qty 14

0

14

Toro 103-1988

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

15

Toro 1-603991

FITTING-STRAIGHT

$25.99

$

In Stock, only 4 left!

0

15:1

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

15:2

Toro 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

16

Toro 1-603718

HYD MOTOR ASM

$1243.99

$

Usually ships in 3-6 days

0

16:1

Toro 1-000119

SEAL KIT

Note: Not illustrated

$242.99

$

In Stock, only 1 left!

0

17

Toro 1-603720

DISCONTINUED

$

$

Not available

18

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Toro 1-633750

FILTER-OIL, HYD

$28.99

$

In Stock, Qty 20+

0

20

Toro 103-1804

FITTING-STR

$

$

Not available

22

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

23

Toro 103-1805

HYD HOSE ASM

$

$

Not available

24

Toro 103-1716

CLAMP-HOSE

$1.49

$

In Stock, Qty 9

0

25

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

26

Toro 103-2191

SPACER

$8.49

$

Usually ships in 3-6 days

0

27

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

29

Toro 103-2057

HYD HOSE ASM

$59.99

$

Usually ships in 3-6 days

0

30

Toro 103-2073

HYD HOSE ASM

$77.99

$

Usually ships in 3-6 days

0

31

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

32

Toro 1-613073

GRIP-VALVE, DUMP

$6.49

$

Usually ships in 3-6 days

0

33

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

34

Toro 1-523552

DECAL-TANK, HYD

$2.49

$

In Stock, Qty 11

0
