30526 - Toro 48" ProLine Walk-Behind Mower, Pistol Grip, Hydro Drive, 15hp (SN: 220000001 - 220999999) (2002) Spindle Assembly Parts Diagram

48" ProLine Walk-Behind Mower, Pistol Grip, Hydro Drive, 15hp

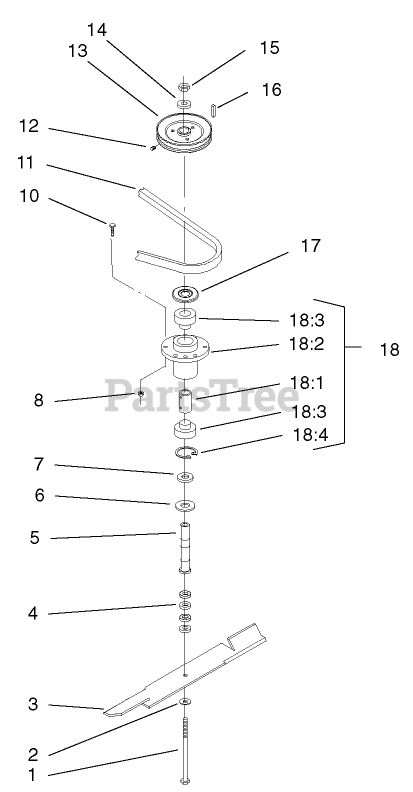

Spindle Assembly Parts Diagram

  • Title

1

Toro 1-800861

SCREW-CAP, HH

$21.99

$

In Stock, only 4 left!

0

2

Toro 1-513208

WASHER-SPRING

$10.99

$

Usually ships in 3-6 days

0

3

Toro 103-2527

BLADE-NOTCHED

$35.99

$

In Stock, Qty 20+

0

3

Toro 103-2507

BLADE-LIFT, LOW

$29.99

$

In Stock, only 3 left!

0

4

Toro 1-323539

SPACER

$2.99

$

In Stock, Qty 20+

0

5

Toro 1-323529

TUBE-SPINDLE, SHORT

$101.99

$

In Stock, only 2 left!

0

6

Toro 1-633573

GUARD-BEARING, BOTTOM

$5.99

$

In Stock, Qty 12

0

7

Toro 1-323533

SPACER-PULLEY/BEARING

$5.99

$

In Stock, only 4 left!

0

8

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

10

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

11

Toro 1-403171

BELT-DRIVE, BLADE

$155.99

$

In Stock, only 3 left!

0

12

Toro 1-803310

SCREW-SET

$2.99

$

Usually ships in 3-6 days

0

13

Toro 1-403183

SHEAVE

$76.99

$

In Stock, only 2 left!

0

14

Toro 1-323339

WASHER-RETAINER, SHEAVE

$5.99

$

In Stock, Qty 20+

0

15

Toro 3219-6

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

16

Toro 1-807267

KEY

$2.99

$

In Stock, Qty 9

0

17

Toro 103-1330

GUARD-BEARING, TOP

$5.99

$

In Stock, Qty 20+

0

18

Toro 1-634619

See Supercession: 107-4065
(Superseded to 107-4065)

$173.99

$

Usually ships in 3-6 days

0

18:1

Toro 1-323528

SPACER-BEARING

$9.99

$

In Stock, Qty 6

0

18:2

Toro 1-323532

See Supercession: 103-7975
(Superseded to 103-7975)

$68.99

$

In Stock, only 2 left!

0

18:3

Toro 1-513016

BEARING

$92.99

$

In Stock, Qty 20+

0

18:4

Toro 32120-8

RING-SNAP

$2.99

$

In Stock, Qty 20+

0
