30526 - Toro 48" ProLine Walk-Behind Mower, Pistol Grip, Hydro Drive, 15hp (SN: 230000001 - 230999999) (2003) Deck Assembly Parts Diagram

48" ProLine Walk-Behind Mower, Pistol Grip, Hydro Drive, 15hp

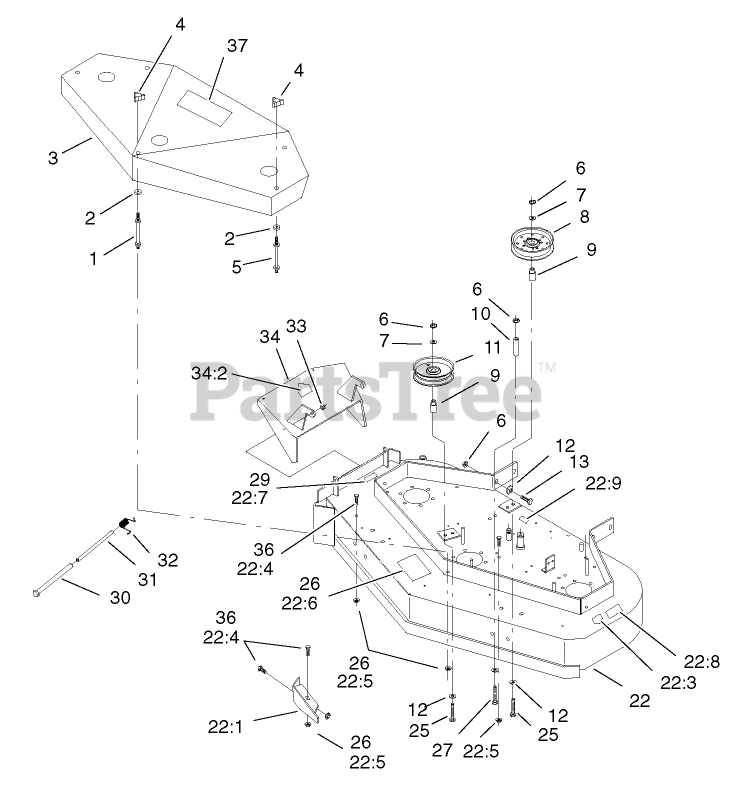

Deck Assembly Parts Diagram

  • Title

1

Toro 1-303536

STUD-SHIELD, BELT (LONG)

$8.49

$

In Stock, Qty 20+

0

2

Toro 1-323417

WASHER

$3.99

$

In Stock, Qty 20+

0

3

Toro 1-404246

SHIELD-BELT

$

$

Not available

4

Toro 1-323385

KNOB-3 PRONG

$5.99

$

In Stock, Qty 20+

0

5

Toro 1-303537

STUD-SHIELD, BELT (SHORT)

$6.99

$

In Stock, Qty 9

0

6

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

7

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 1-403186

See Supercession: 136-5405
(Superseded to 136-5405)

$52.99

$

In Stock, only 3 left!

0

9

Toro 1-403184

See Supercession: 1-413113
(Superseded to 1-413113)

$6.49

$

In Stock, Qty 20+

0

10

Toro 1-403188

SPACER

$15.99

$

Usually ships in 3-6 days

0

11

Toro 1-613098

PULLEY-IDLER

$51.99

$

In Stock, Qty 20+

0

12

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

13

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

22

Toro 1-404270

DISCONTINUED

$

$

Not available

22:1

Toro 1-402107-01

BAFFLE-DOGLEG

$

$

Not available

22:3

Toro 1-403005

DECAL-DANGER

$5.99

$

In Stock, Qty 20+

0

22:4

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

22:5

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

22:6

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$11.99

$

In Stock, Qty 6

0

22:7

Toro 67-5360

DECAL-DANGER

$17.99

$

In Stock, only 1 left!

0

22:8

Toro 98-5130

DECAL-TORQUE, BOLT

$34.99

$

Usually ships in 3-6 days

0

22:9

Toro 99-3943

DECAL-ROUTING, BELT

$8.49

$

In Stock, Qty 6

0

25

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$2.49

$

In Stock, Qty 20+

0

26

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

27

Toro 323-20

SCREW-HH

$3.99

$

In Stock, only 2 left!

0

29

Toro 98-5954

DECAL-COVER, MISSING

$10.99

$

In Stock, Qty 8

0

30

Toro 1-800291

SCREW-HH

$

$

Not available

31

Toro 1-323636

SPACER-SPRING

$

$

Not available

32

Toro 98-3280

SPRING-DEFLECTOR

$32.99

$

Usually ships in 3-6 days

0

33

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

34

Toro 1-404245

CHUTE

$

$

Not available

34:2

Toro 54-9220

See Supercession: 93-1122
(Superseded to 93-1122)

$10.99

$

In Stock, Qty 9

0

36

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

37

Toro 95-5512

DECAL

$

$

Not available
