Toro 30526 - Toro 48" ProLine Walk-Behind Mower, Pistol Grip, Hydro Drive, 15hp (SN: 230000001 - 230999999) (2003) Hydraulic Assembly Parts Lookup with Diagrams

1

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

2

Toro 1-513840

FITTING-90 DEG

$29.99

$

Usually ships in 3-6 days

2:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

3

Toro 1-403102

HOSE-PRESSURE, HIGH

$136.99

$

In Stock, only 2 left!

4

Toro 1-801063

SCREW

$5.99

$

In Stock, only 2 left!

5

Toro 1-613042

PUMP

$1566.99

$

Usually ships in 3-6 days

6

Toro 1-603989

FITTING

$42.99

$

Usually ships in 3-6 days

6:1

Toro 237-78

O-RING

$4.99

$

In Stock, Qty 11

7

Toro 1-603990

FITTING-STRAIGHT

$19.99

$

In Stock, only 4 left!

7:1

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

7:2

Toro 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

10

Toro 321-15

SCREW-HH

$1.49

$

In Stock, Qty 14

11

Toro 103-1946

Reservoir-HYD

$

Not available 

11:1

Toro 103-1948

CAP-RESERVOIR, HYD

$37.99

$

In Stock, Qty 20+

11:2

Toro 103-1949

GASKET-CAP

(Superseded to 142-2792) 

$1.49

$

In Stock, Qty 20+

12

Toro 103-1801

ADAPTER-STRAIGHT

$35.99

$

Usually ships in 3-6 days

12:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

13

Toro 103-1807

FITTING-BARBED, 45 DEG

$31.99

$

Usually ships in 3-6 days

13:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

14

Toro 103-1988

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

15

Toro 1-603991

FITTING-STRAIGHT

$25.99

$

In Stock, only 4 left!

15:1

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

15:2

Toro 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

16

Toro 1-603718

HYD MOTOR ASM

$1243.99

$

Usually ships in 3-6 days

17

Toro 103-2889

FILTER HEAD ASM

$120.99

$

Usually ships in 3-6 days

18

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

19

Toro 1-633750

FILTER-OIL, HYD

$28.99

$

In Stock, Qty 20+

20

Toro 1-805004

WASHER-LOCK

$1.49

$

In Stock, Qty 13

23

Toro 103-2959

HOSE-CHARGE

$9.49

$

Usually ships in 3-6 days

24

Toro 103-1716

CLAMP-HOSE

$1.49

$

In Stock, Qty 9

25

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

26

Toro 103-2191

SPACER

$8.49

$

Usually ships in 3-6 days

27

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

28

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

29

Toro 103-2057

HYD HOSE ASM

$59.99

$

Usually ships in 3-6 days

30

Toro 103-2073

HYD HOSE ASM

$77.99

$

Usually ships in 3-6 days

31

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

32

Toro 1-613073

GRIP-VALVE, DUMP

$6.49

$

Usually ships in 3-6 days

33

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

34

Toro 1-523552

DECAL-TANK, HYD

$2.49

$

In Stock, Qty 11

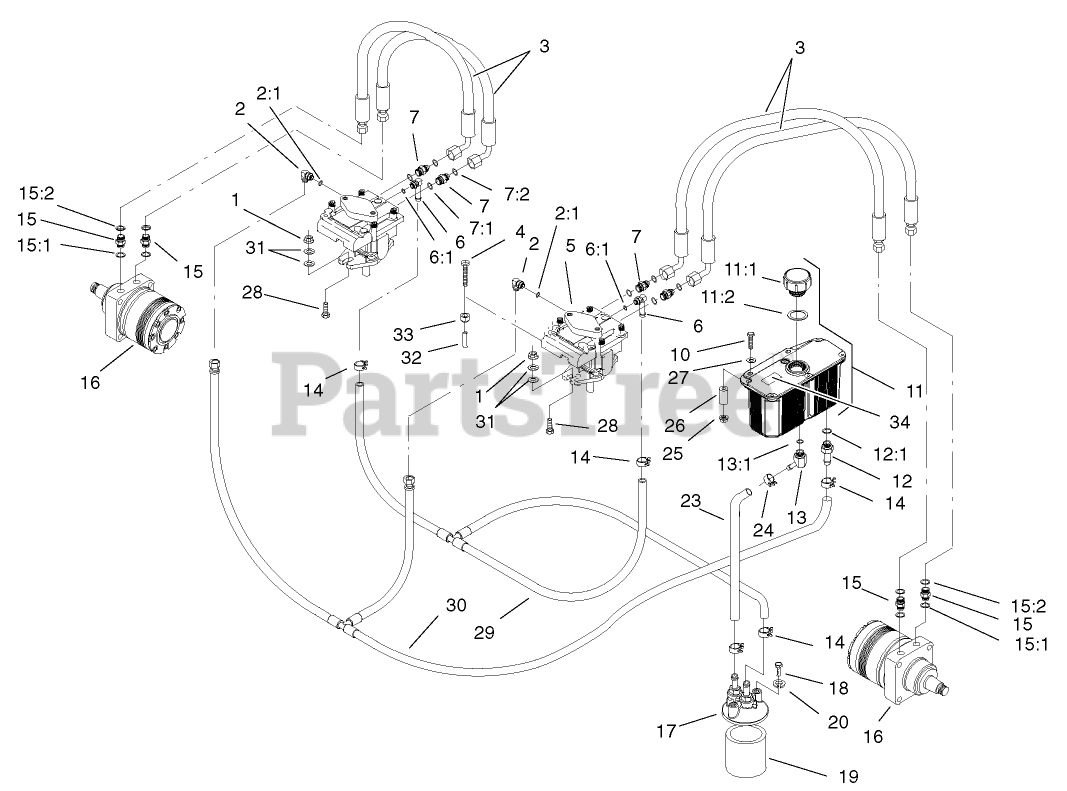

30526 - Toro 48" ProLine Walk-Behind Mower, Pistol Grip, Hydro Drive, 15hp (SN: 230000001 - 230999999) (2003) Hydraulic Assembly Parts Diagram

Hydraulic Assembly Parts Diagram
