30544 - Toro 44" Mower Deck for Groundsmaster 120 (SN: 059000001 - 059999999) (1995) Deck Spindle Assembly Parts Diagram

44" Mower Deck for Groundsmaster 120

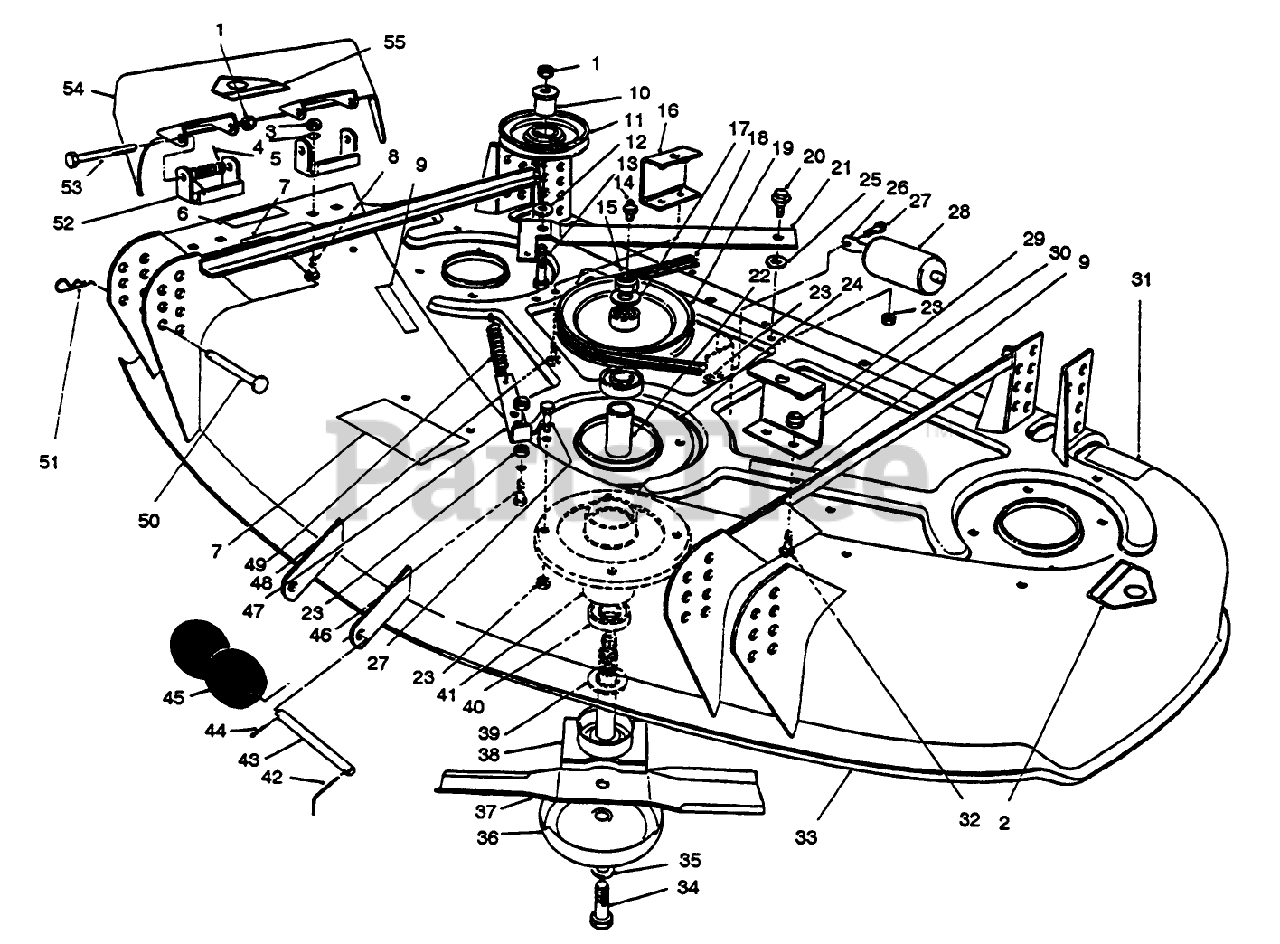

Deck Spindle Assembly Parts Diagram

  • Title

1

Toro 3296-5

NUT-HEX

$3.99

$

In Stock, Qty 15

0

2

Toro 43-8480

DECAL-DANGER

$7.99

$

In Stock, only 3 left!

0

3

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

4

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

5

Toro 40-6230

SPRING

$

$

Not available

6

Toro 66-6380

DECAL-DANGER

$10.99

$

Usually ships in 3-6 days

0

7

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$11.99

$

In Stock, Qty 6

0

8

Toro 3230-20

See Supercession: 3230-1
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

9

Toro 67-5360

DECAL-DANGER

$17.99

$

In Stock, only 1 left!

0

10

Toro 65-5950

BUSHING-PULLEY

$5.99

$

In Stock, Qty 20+

0

11

Toro 65-5940

PULLEY-IDLER

$41.99

$

In Stock, Qty 5

0

12

Toro 7-0081

WASHER-FLAT

$1.49

$

In Stock, Qty 9

0

13

Toro 3211-8

SCREW-HH

$4.49

$

In Stock, Qty 9

0

14

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, Qty 20+

0

15

Toro 32146-20

NUT-HEX

$4.49

$

In Stock, Qty 16

0

16

Toro 55-7050

See Supercession: 55-7050-03
(Superseded to 55-7050-03)

$

$

Not available

17

Toro 7-4150

WASHER

$1.49

$

In Stock, Qty 20+

0

18

Toro 54-1370

V-BELT-DECK

$146.99

$

Usually ships in 3-6 days

0

19

Toro 67-7690

PULLEY-DECK

$102.99

$

Usually ships in 3-6 days

0

20

Toro 19-1470

SCREW-SHOULDER

$4.49

$

In Stock, only 3 left!

0

21

Toro 55-7430

See Supercession: 55-7430-01
(Superseded to 55-7430-01)

$

$

Not available

22

Toro 67-7580

SPACER-BEARING

$

$

Not available

23

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 7

0

24

Toro 55-8280

See Supercession: 55-8280-01
(Superseded to 55-8280-01)

$

$

Not available

25

Toro 23-1120

WASHER

$21.99

$

Usually ships in 3-6 days

0

26

Toro 62-4480

ROD-ROLLER

$22.99

$

Usually ships in 3-6 days

0

27

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 17

0

28

Toro 36-1740

ROLLER-DECK

$49.99

$

In Stock, only 2 left!

0

29

Toro 3296-16

NUT-LOCK, NI

$1.99

$

In Stock, only 3 left!

0

30

Toro 55-7060

See Supercession: 55-7060-03
(Superseded to 55-7060-03)

$

$

Not available

31

Toro 68-8340

DECAL-TORQUE

$23.99

$

In Stock, only 2 left!

0

32

Toro 3229-3

SCREW-CARR

$5.99

$

Usually ships in 3-6 days

0

33

Toro 13-4029

DISCONTINUED
(Superseded to 94-6024)

$

$

Not available

34

Toro 51-4060

SCREW-BLADE

$8.99

$

In Stock, Qty 20+

0

35

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

36

Toro 67-7561

CUP-SCALP, ANTI

$47.99

$

In Stock, only 2 left!

0

37

Toro 54-0010

See Supercession: 54-0010-03
(Superseded to 54-0010-03)

$33.99

$

In Stock, Qty 20+

0

38

Toro 71-2780

See Supercession: 71-2780-03
(Superseded to 71-2780-03)

$

$

Not available

39

Toro 67-7570

SPACER-SPINDLE

$

$

Not available

40

Toro 251-257

BEARING-BALL

$18.99

$

In Stock, only 4 left!

0

41

Toro 67-7590

HOUSING-SPINDLE

$360.99

$

Usually ships in 3-6 days

0

42

Toro 57-0690

PIN-SPECIAL

$4.99

$

In Stock, only 3 left!

0

43

Toro 40-6400

SHAFT-ROLLER

$45.99

$

In Stock, only 3 left!

0

44

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, only 3 left!

0

45

Toro 29-4820

ROLLER

$19.99

$

In Stock, Qty 6

0

46

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

47

Toro 54-1180

See Supercession: 54-1180-01
(Superseded to 54-1180-01)

$21.99

$

Usually ships in 3-6 days

0

48

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

49

Toro 54-1160

SPRING-EXTENSION, DECK

$62.99

$

Usually ships in 3-6 days

0

50

Toro 283-55

PIN-CLEVIS

$13.99

$

In Stock, Qty 6

0

51

Toro 3290-355

PIN-HAIR

$2.99

$

In Stock, Qty 20+

0

52

Toro 29-5590

See Supercession: 29-5590-03
(Superseded to 29-5590-03)

$

$

Not available

53

Toro 3211-15

SCREW-HH

$9.49

$

Usually ships in 3-6 days

0

54

Toro 13-3899

DEFLECTOR

$

$

Not available

55

Toro 54-9220

See Supercession: 93-1122
(Superseded to 93-1122)

$10.99

$

In Stock, Qty 9

0

Toro 67-7660

SPINDLE HOUSING ASM

Note: Not illustrated

$1062.99

$

Usually ships in 3-6 days

0
