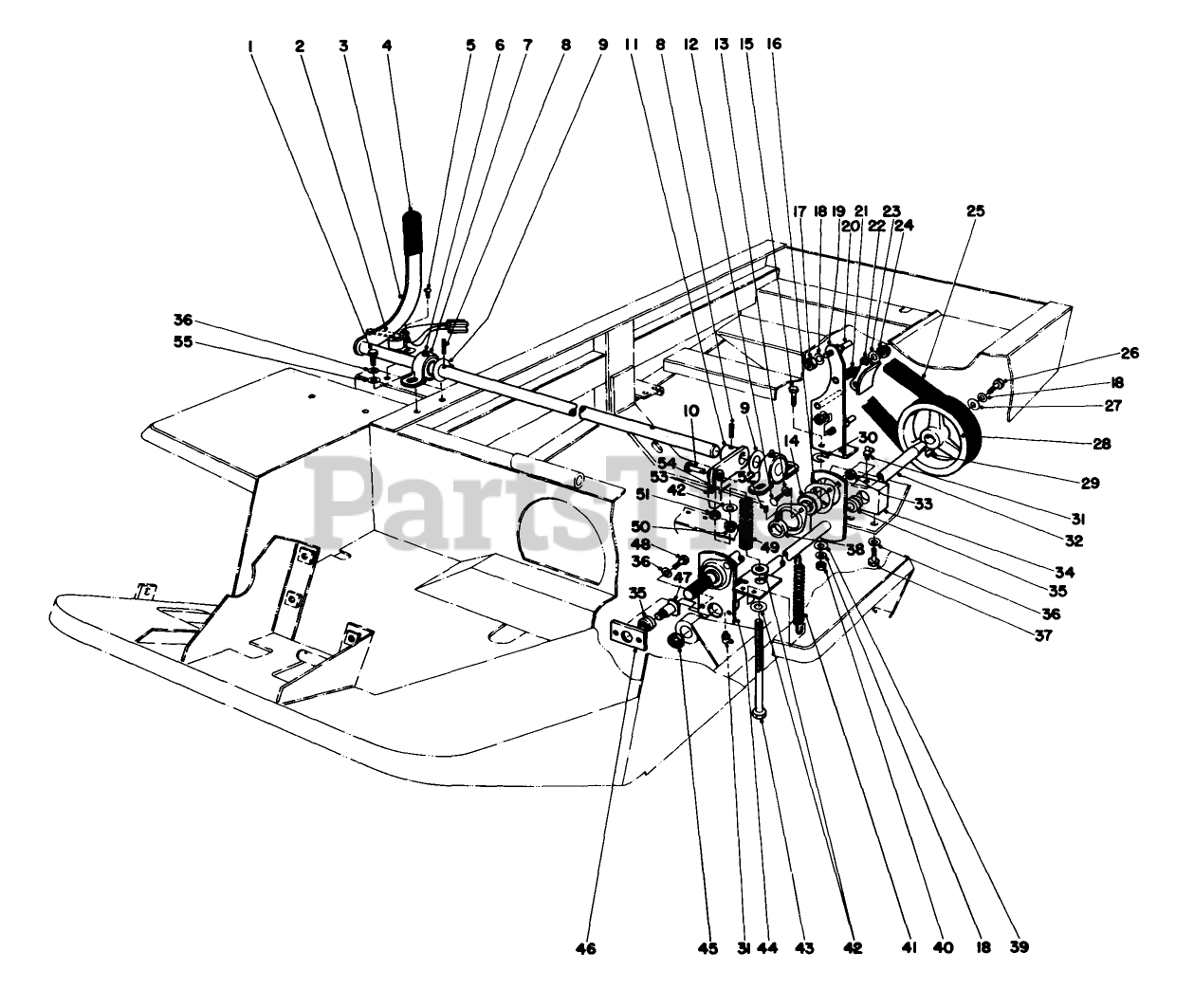

30545 - Toro 52" Walk-Behind Mower (SN: 080000001 - 089999999) (1978) Power Take Off Assembly Parts Diagram

52" Walk-Behind Mower

Power Take Off Assembly Parts Diagram

  • Title

1

Toro 32104-95

SCREW-HWH

$0.99

$

In Stock, Qty 7

0

2

Toro 33-0300

DISCONTINUED

$

$

Not available

3

Toro 27-4910

See Supercession: 27-4910-01
(Superseded to 27-4910-01)

$

$

Not available

4

Toro 21-1880

GRIP-HANDLE

$13.99

$

Usually ships in 3-6 days

0

5

Toro 32104-116

SCREW-HWHTF

$0.99

$

Usually ships in 3-6 days

0

6

Toro 302-5

FITTING-GREASE

$3.99

$

In Stock, Qty 20+

0

7

Toro 251-269

BEARING

$

$

Not available

8

Toro 32121-31

PIN-SPRING

$

$

Not available

9

Toro 3-6514

THRUST WASHER

$

$

Not available

10

Toro 283-42

PIN-CLEVIS

$53.99

$

Usually ships in 3-6 days

0

11

Toro 27-4940

ENGAGE ARM WA

$246.99

$

Usually ships in 3-6 days

0

12

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 5

0

13

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

14

Toro 251-253

BEARING

$30.99

$

Usually ships in 3-6 days

0

15

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

16

Toro 251-255

FLANGE

$17.99

$

Usually ships in 3-6 days

0

17

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 5

0

18

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, only 4 left!

0

19

Toro 27-8410

PTO BRAKE BRKT WA *BO

$241.99

$

Usually ships in 3-6 days

0

20

Toro 27-8450

DISCONTINUED

$

$

Not available

21

Toro 27-9220

COMP SPRING *O

$29.99

$

Usually ships in 3-6 days

0

22

Toro 33-0890

DISCONTINUED

$

$

Not available

23

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Toro 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

25

Toro 27-4630

See Supercession: 41-9150
(Superseded to 41-9150)

$

$

Not available

26

Toro 323-18

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

27

Toro 29-4730

WASHER-FLAT

$17.99

$

Usually ships in 3-6 days

0

28

Toro 27-4530

DISCONTINUED

$

$

Not available

29

Toro 3257-5

KEY-WOODRUFF

$6.49

$

In Stock, Qty 19

0

30

Toro 28-5640

SPECIAL WASHER

$

$

Not available

31

Toro 302-40

FITTING-GREASE, 90 DEG

$3.99

$

In Stock, Qty 20+

0

32

Toro 27-4980

DISCONTINUED

$

$

Not available

33

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

34

Toro 28-9050

DISCONTINUED

$

$

Not available

35

Toro 251-268

BEARING

$97.99

$

Usually ships in 3-6 days

0

36

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

37

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 5

0

38

Toro 251-77

COLLAR-LOCK, BEARING

$13.99

$

Usually ships in 3-6 days

0

39

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

40

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 15

0

41

Toro 28-8950

DISCONTINUED

$

$

Not available

42

Toro 3256-41

WASHER

$1.99

$

Usually ships in 3-6 days

0

43

Toro 27-7900

SCREW-ADJUSTING

$28.99

$

Usually ships in 3-6 days

0

44

Toro 27-4850

See Supercession: 44-9350
(Superseded to 44-9350)

$

$

Not available

45

Toro 3296-33

NUT-LOCK, NI

$2.99

$

In Stock, only 2 left!

0

46

Toro 27-6650

BRG RETAINER

$

$

Not available

47

Toro 27-6970

BEARING STUD

$

$

Not available

48

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

49

Toro 21-0400

See Supercession: 21-0400-01
(Superseded to 21-0400-01)

$24.99

$

Usually ships in 3-6 days

0

50

Toro 3296-5

NUT-HEX

$3.99

$

In Stock, Qty 15

0

51

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 20+

0

52

Toro 3245-1

SCREW-SET, HSH

$1.99

$

In Stock, Qty 5

0

53

Toro 282-1

DISCONTINUED
(Superseded to 282-1-01)

$

$

Not available

54

Toro 3272-5

PIN-COTTER

$1.99

$

In Stock, Qty 11

0

55

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
