30548 - Toro 48" Recycler Mower Deck for ProLine 118 (SN: 020000001 - 029999999) (1992) Cutting Deck Spindle Assembly Parts Diagram

48" Recycler Mower Deck for ProLine 118

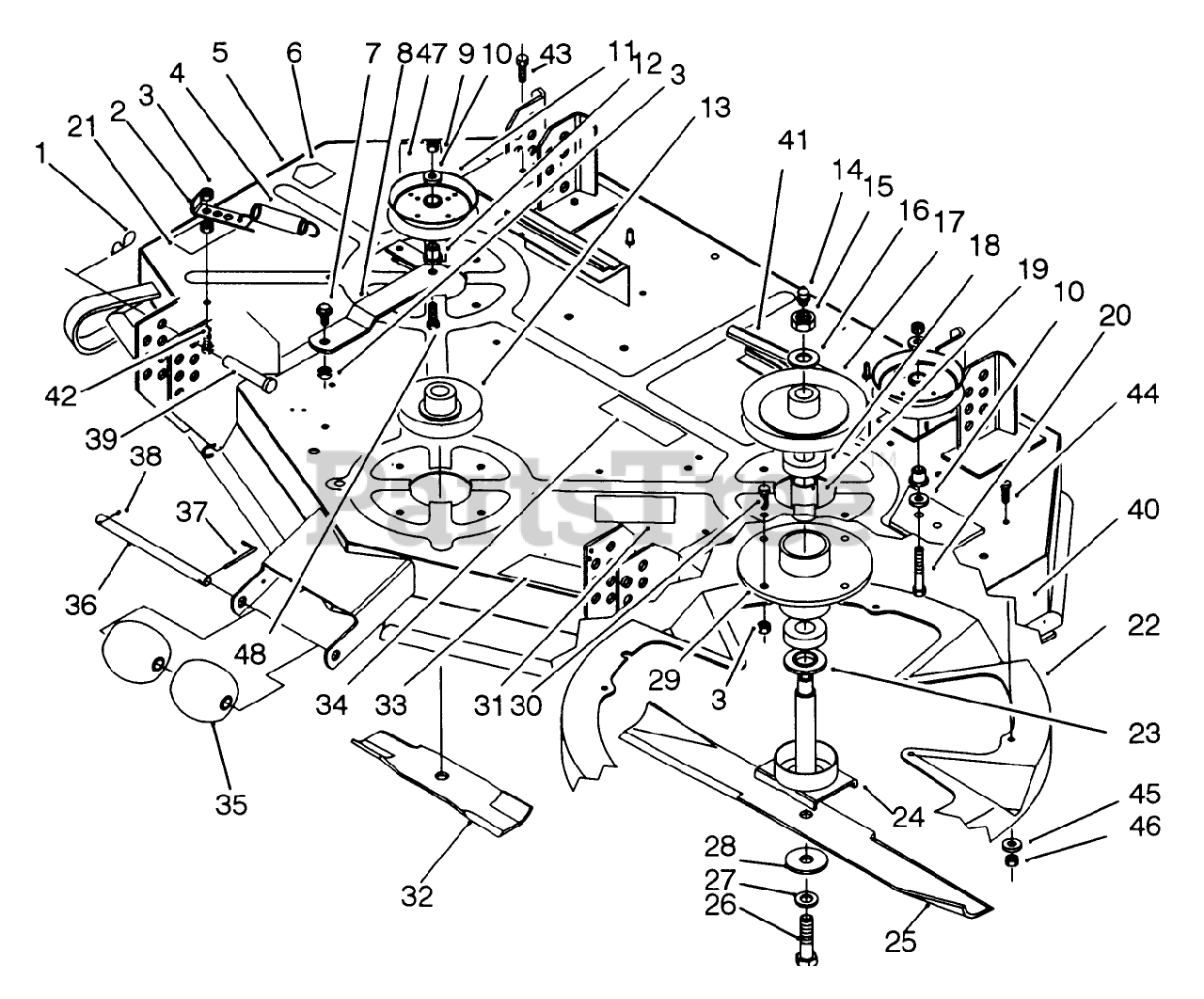

Cutting Deck Spindle Assembly Parts Diagram

  • Title

1

Toro 3290-355

PIN-HAIR

$2.99

$

In Stock, Qty 20+

0

2

Toro 72-7590

ANCHOR SPRING *R

$14.99

$

Usually ships in 3-6 days

0

3

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

4

Toro 54-1160

SPRING-EXTENSION, DECK

$62.99

$

Usually ships in 3-6 days

0

5

Toro 14-3739

DECK W/DECALS

$6394.99

$

Usually ships in 3-6 days

0

6

Toro 43-8480

DECAL-DANGER

$7.99

$

In Stock, only 3 left!

0

7

Toro 19-1470

SCREW-SHOULDER

$4.49

$

In Stock, only 3 left!

0

8

Toro 72-7610

IDLER LEVER WA

$112.99

$

Usually ships in 3-6 days

0

9

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

10

Toro 7-0081

WASHER-FLAT

$1.49

$

In Stock, Qty 9

0

11

Toro 65-5940

PULLEY-IDLER

$41.99

$

In Stock, Qty 5

0

12

Toro 65-5950

BUSHING-PULLEY

$5.99

$

In Stock, Qty 20+

0

13

Toro 72-8200

DISCONTINUED

$

$

Not available

14

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, Qty 20+

0

15

Toro 32146-20

NUT-HEX

$4.49

$

In Stock, Qty 16

0

16

Toro 7-4150

WASHER

$1.49

$

In Stock, Qty 20+

0

17

Toro 67-7690

PULLEY-DECK

$102.99

$

Usually ships in 3-6 days

0

18

Toro 251-257

BEARING-BALL

$18.99

$

In Stock, only 4 left!

0

19

Toro 67-7580

SPACER-BEARING

$

$

Not available

20

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

21

Toro 72-7890

DISCONTINUED

$

$

Not available

22

Toro 82-9890

DISCONTINUED

$

$

Not available

23

Toro 67-7570

SPACER-SPINDLE

$

$

Not available

24

Toro 71-2780

See Supercession: 71-2780-03
(Superseded to 71-2780-03)

$

$

Not available

25

Toro 72-7730

DISCONTINUED

$

$

Not available

Toro 72-7740

See Supercession: 72-7740-03
(Superseded to 72-7740-03)

$63.99

$

Usually ships in 3-6 days

0

26

Toro 51-4060

SCREW-BLADE

$8.99

$

In Stock, Qty 20+

0

27

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

28

Toro 82-7460

DISCONTINUED

$

$

Not available

29

Toro 67-7590

HOUSING-SPINDLE

$360.99

$

Usually ships in 3-6 days

0

30

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 17

0

31

Toro 67-5360

DECAL-DANGER

$17.99

$

In Stock, only 1 left!

0

32

Toro 72-7690

CENTER BLADE

$46.99

$

Usually ships in 3-6 days

0

33

Toro 68-8340

DECAL-TORQUE

$23.99

$

In Stock, only 2 left!

0

34

Toro 72-7750

DISCONTINUED

$

$

Not available

35

Toro 29-4820

ROLLER

$19.99

$

In Stock, Qty 6

0

36

Toro 40-6400

SHAFT-ROLLER

$45.99

$

In Stock, only 3 left!

0

37

Toro 57-0690

PIN-SPECIAL

$4.99

$

In Stock, only 3 left!

0

38

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, only 3 left!

0

39

Toro 283-55

PIN-CLEVIS

$13.99

$

In Stock, Qty 6

0

40

Toro 82-8830

DISCONTINUED

$

$

Not available

41

Toro 57-0240

V-BELT

$94.99

$

In Stock, only 2 left!

0

42

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

43

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 5

0

44

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

45

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

46

Toro 3296-16

NUT-LOCK, NI

$1.99

$

In Stock, only 3 left!

0

47

Toro 68-7270

DECAL - WARNING

$

$

Not available

48

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0
