30557 - Toro Grass Collection System (SN: 020000001 - 029999999) (1982) Blower Drive Shield Assemblies Parts Diagram

Grass Collection System

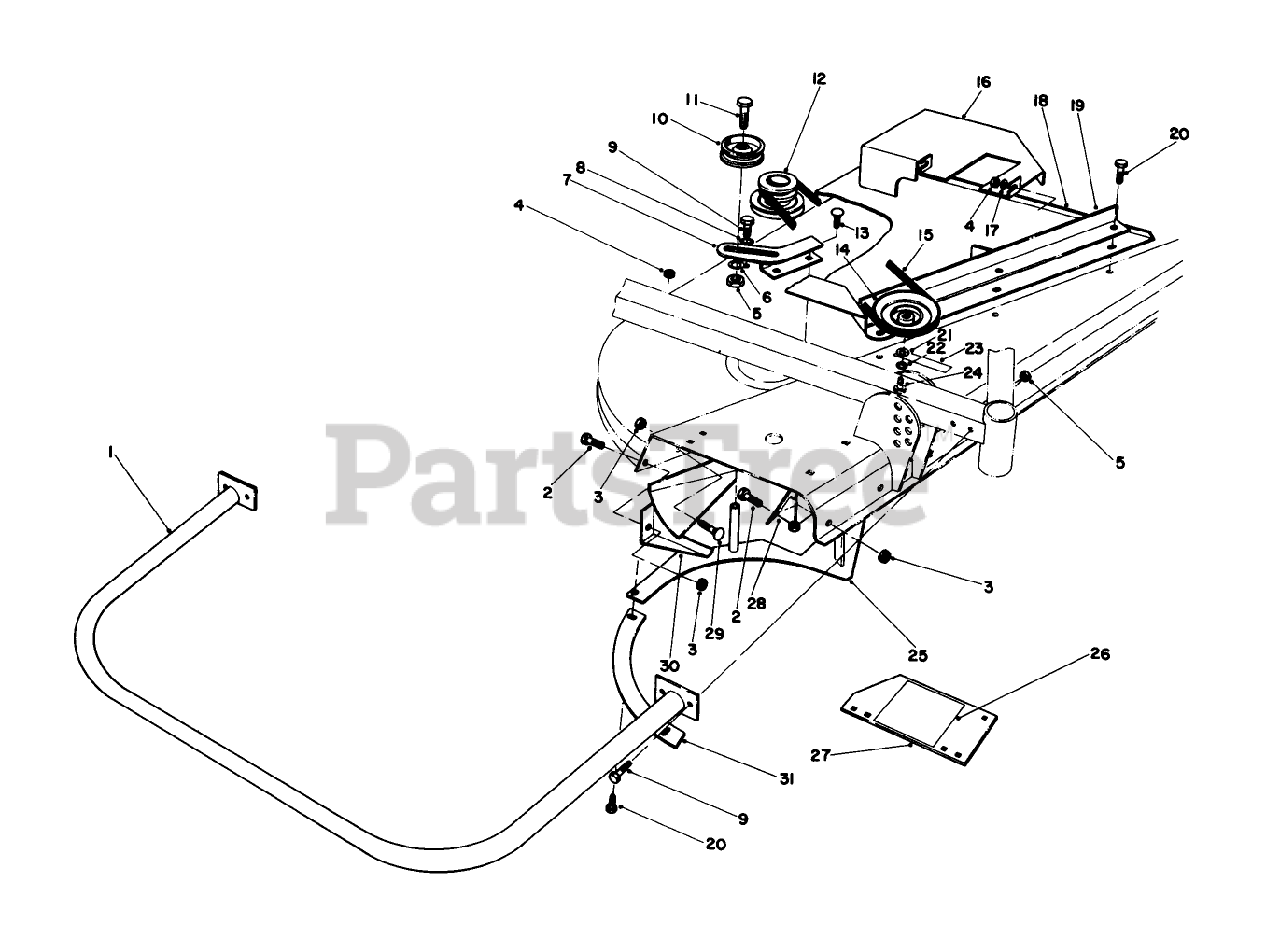

Blower Drive Shield Assemblies Parts Diagram

  • Title

1

Toro 44-7570

DISCONTINUED X-REF

$

$

Not available

2

Toro 3224

Screw

$

$

Currently unavailable

3

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 7

0

4

Toro 321524

Nut

$

$

Currently unavailable

5

Toro 32152-2

NUT-LOCK, CONE

$2.49

$

In Stock, Qty 20+

0

6

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 43-0970

DISCONTINUED

$

$

Not available

8

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, only 4 left!

0

9

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

10

Toro 43-1040

DISCONTINUED

$

$

Not available

11

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Toro 43-0770

PULLEY WA *RO

$

$

Not available

13

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$2.49

$

In Stock, Qty 20+

0

14

Toro 44-5350

DISCONTINUED

$

$

Not available

15

Toro 43-1030

V-BELT

$51.99

$

Usually ships in 3-6 days

0

16

Toro 43-1200

DISCONTINUED

$

$

Not available

17

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, only 1 left!

0

18

Toro 43-1160

DISCONTINUED

$

$

Not available

19

Toro 43-1130

DISCONTINUED

$

$

Not available

20

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

21

Toro 5-2958

DISCONTINUED

$

$

Not available

22

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

23

Toro 43-1120

WARNING DECAL

$

$

Not available

24

Toro 3235-18

1/4-20 X 5/8 CAPSCREW

$

$

Not available

25

Toro 44-7770

See Supercession: 44-7770-01
(Superseded to 44-7770-01)

$

$

Not available

26

Toro 40-5730

See Supercession: 66-1340
(Superseded to 66-1340)

$11.99

$

In Stock, Qty 6

0

27

Toro 44-5750

DISCONTINUED

$

$

Not available

28

Toro 46-2350

See Supercession: 92-6297-01
(Superseded to 92-6297-01)

$

$

Not available

29

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

30

Toro 43-1060

See Supercession: 59-5350-01
(Superseded to 59-5350-01)

$293.99

$

Usually ships in 3-6 days

0

31

Toro 44-7780

See Supercession: 44-7780-01
(Superseded to 44-7780-01)

$33.99

$

Usually ships in 3-6 days

0

Toro 44-5480

BLADE-HIGH SAIL

Note: Not illustrated

$26.99

$

Usually ships in 3-6 days

0
