30610 (120) - Toro ProLine Rear-Engine Riding Mower (SN: 059000001 - 059001299) (1995) Front Wheel Assembly Parts Diagram

ProLine Rear-Engine Riding Mower

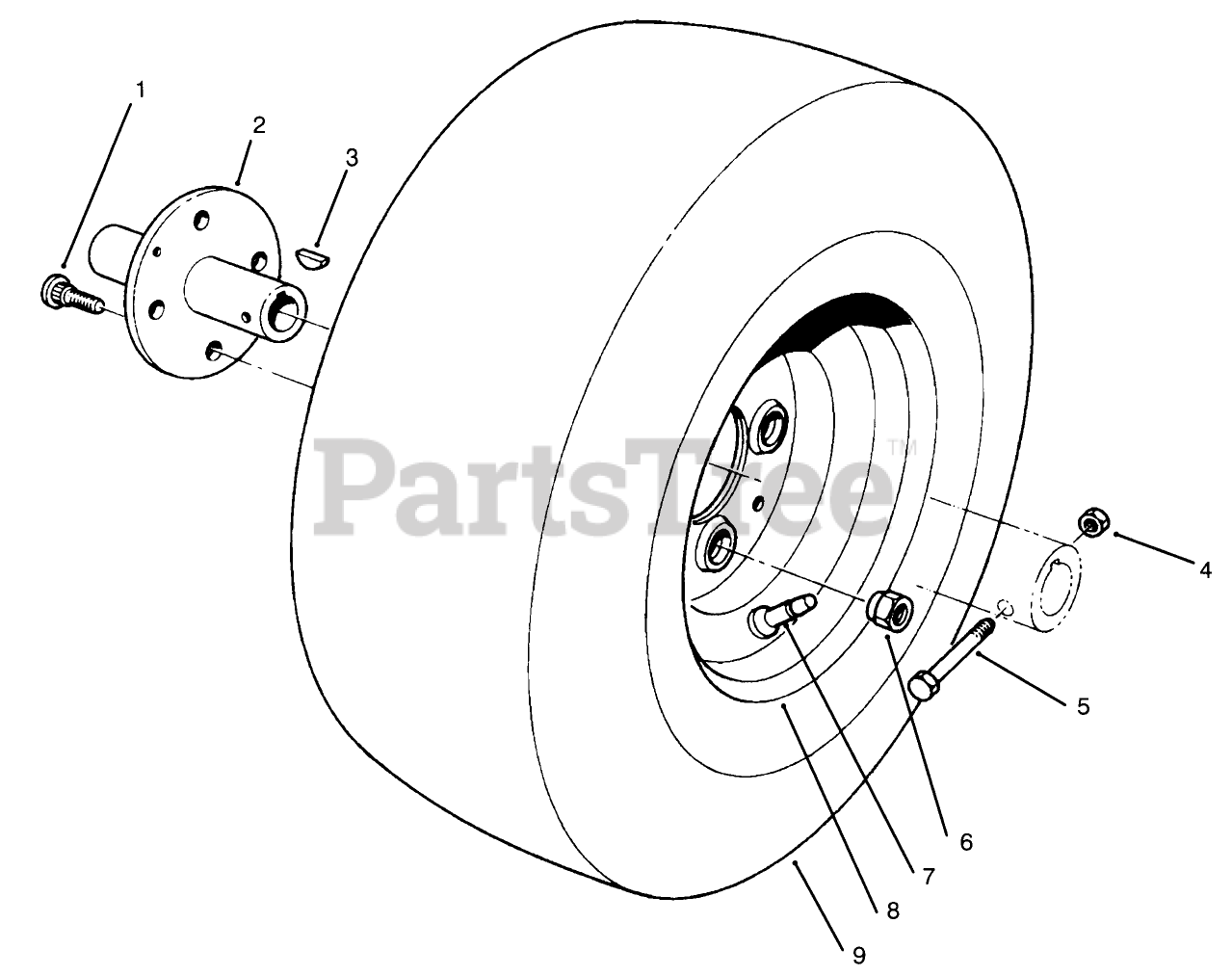

Front Wheel Assembly Parts Diagram

  • Title

1

Toro 242-71

1/2-20X1.25 BOLT

$

$

Not available

2

Toro 54-0140

WHEEL HUB

$550.99

$

Usually ships in 3-6 days

0

3

Toro 3257-10

KEY-WOODRUFF

$7.49

$

In Stock, only 3 left!

0

4

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

5

Toro 322-10

SCREW-HH

$0.99

$

In Stock, only 4 left!

0

6

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, Qty 20+

0

7

Toro 232-27

See Supercession: 5108
(Superseded to 5108)

$8.49

$

In Stock, only 4 left!

0

8

Toro 242-76

RIM

$239.99

$

Usually ships in 3-6 days

0

9

Toro 231-122

TIRE-4-PLY

$169.99

$

Usually ships in 3-6 days

0
