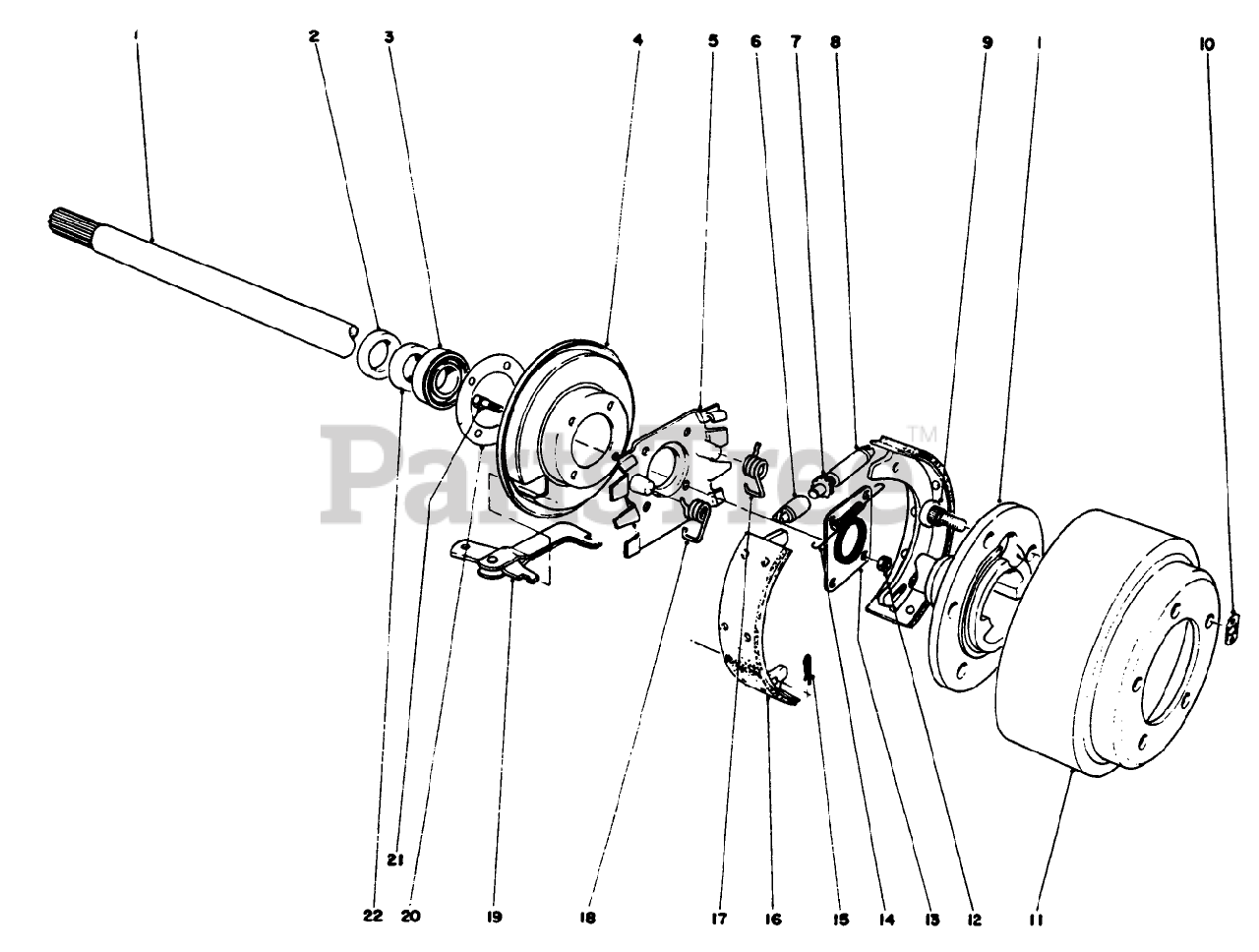

30620 (220) - Toro ProLine Rear-Engine Riding Mower (SN: 059000001 - 059999999) (1995) Brake Assembly Parts Diagram

ProLine Rear-Engine Riding Mower

Brake Assembly Parts Diagram

  • Title

1

Toro 27-6860

DISCONTINUED

$

$

Not available

Toro 27-6850

RH AXLE SHAFT

Note: Not illustrated

$1084.99

$

Usually ships in 3-6 days

0

2

Toro 21-8330

See Supercession: 99-6969
(Superseded to 99-6969)

$19.99

$

In Stock, only 2 left!

0

3

Toro 21-8180

BEARING ASM

$86.99

$

Usually ships in 3-6 days

0

4

Toro 21-9450

SHIELD-DUST

$60.99

$

Usually ships in 3-6 days

0

5

Toro 40-2190

See Supercession: 43-6810
(Superseded to 43-6810)

$

$

Not available

6

Toro 21-9390

SOCKET-SCREW, ADJUSTING

$7.49

$

Usually ships in 3-6 days

0

7

Toro 21-9370

SCREW-ADJUSTING

$25.99

$

Usually ships in 3-6 days

0

8

Toro 21-9380

NUT-PIVOT

$35.99

$

Usually ships in 3-6 days

0

9

Toro 242-34

STUD-DRIVE

$15.99

$

In Stock, Qty 5

0

10

Toro 21-8360

CLIP-RETAINING

$1.99

$

Usually ships in 3-6 days

0

11

Toro 28-0680

See Supercession: 28-0680-03
(Superseded to 28-0680-03)

$477.99

$

Usually ships in 3-6 days

0

12

Toro 43-6800

See Supercession: 99-5694
(Superseded to 99-5694)

$4.99

$

Usually ships in 3-6 days

0

13

Toro 28-0670

SEAL-GREASE

$23.99

$

In Stock, only 1 left!

0

14

Toro 21-9440

SPRING-SCREW, ADJUSTING

$13.99

$

Usually ships in 3-6 days

0

15

Toro 21-9460

RETAINER-LEVER, BRAKE

$2.99

$

Usually ships in 3-6 days

0

16

Toro 43-2690

SEE PB #747

$

$

Not available

17

Toro 21-9420

SPRING-RETURN, LH

$23.99

$

Usually ships in 3-6 days

0

18

Toro 21-9430

SPRING-RETURN, RH

$23.99

$

Usually ships in 3-6 days

0

19

Toro 27-6880

BRAKE LEVER ASSY

$

$

Not available

20

Toro 21-8320

REFER TO(PB#807 OR MISC COMM SB#50)

$

$

Not available

21

Toro 28-0660

See Supercession: 99-5691
(Superseded to 99-5691)

$

$

Not available

22

Toro 24-8840

RING-RETAINING, WHEEL BEARING

$49.99

$

Usually ships in 3-6 days

0

Toro 84-8600

SET-SHOES, LINED

Note: Not illustrated

$174.99

$

In Stock, only 1 left!

0
