30620 (220) - Toro ProLine Rear-Engine Riding Mower (SN: 059000001 - 059999999) (1995) Fuel Tank Axle Assembly Parts Diagram

ProLine Rear-Engine Riding Mower

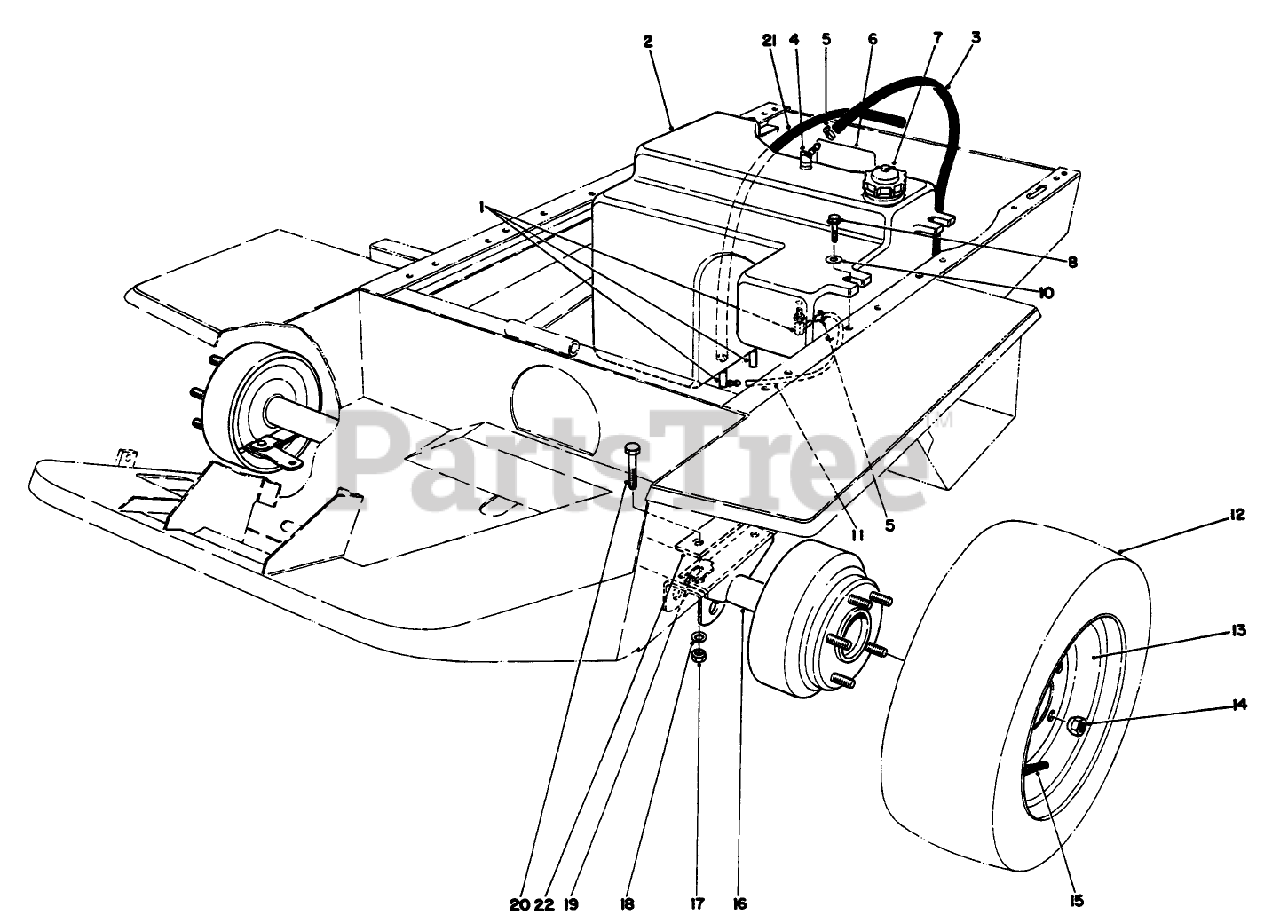

Fuel Tank Axle Assembly Parts Diagram

  • Title

1

Toro 353-536

DISCONTINUED

$

$

Not available

2

Toro 43-5350

GAS TANK

$

$

Not available

3

Toro 37-9920

See Supercession: 109-0308
(Superseded to 109-0308)

$12.99

$

Usually ships in 3-6 days

0

4

Toro 353-705

DISCONTINUED

$

$

Not available

5

Toro 2412-36

CLAMP-HOSE

$2.49

$

In Stock, Qty 5

0

6

Toro 43-8480

DECAL-DANGER

$7.99

$

In Stock, only 3 left!

0

7

Toro 55-3574

GAS CAP ASM

$18.99

$

In Stock, only 1 left!

0

8

Toro 3234-18

SCREW-HHF

$1.49

$

In Stock, only 4 left!

0

10

Toro 3256-41

WASHER

$1.99

$

Usually ships in 3-6 days

0

11

Toro 61-9650

See Supercession: 110-4104
(Superseded to 110-4104)

$11.99

$

Usually ships in 3-6 days

0

12

Toro 231-103

TIRE(20X8-10) 4-PLY

$

$

Not available

13

Toro 217-107

WHEEL ASM

$

$

Not available

14

Toro 242-35

NUT-WHEEL

$10.99

$

Usually ships in 3-6 days

0

15

Toro 232-35

See Supercession: 5108
(Superseded to 5108)

$8.49

$

Usually ships in 3-6 days

0

16

Toro 86-9660

See Supercession: 86-9660-03
(Superseded to 86-9660-03)

$4837.99

$

Usually ships in 3-6 days

0

17

Toro 3217-8

NUT-HEX

$2.49

$

Usually ships in 3-6 days

0

18

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

19

Toro 42-6080

SHIM-AXLE

$39.99

$

Usually ships in 3-6 days

0

20

Toro 324-9

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

21

Toro 71-3370

See Supercession: 110-3258
(Superseded to 110-3258)

$27.99

$

Usually ships in 3-6 days

0

22

Toro 92-6312

DISCONTINUED

$

$

Not available

Toro 232-43

TUBE

Note: Not illustrated

$

$

Not available
