30620 (220) - Toro ProLine Rear-Engine Riding Mower (SN: 059000001 - 059999999) (1995) Hydraulic Valve Lift Arm Cylinders Parts Diagram

ProLine Rear-Engine Riding Mower

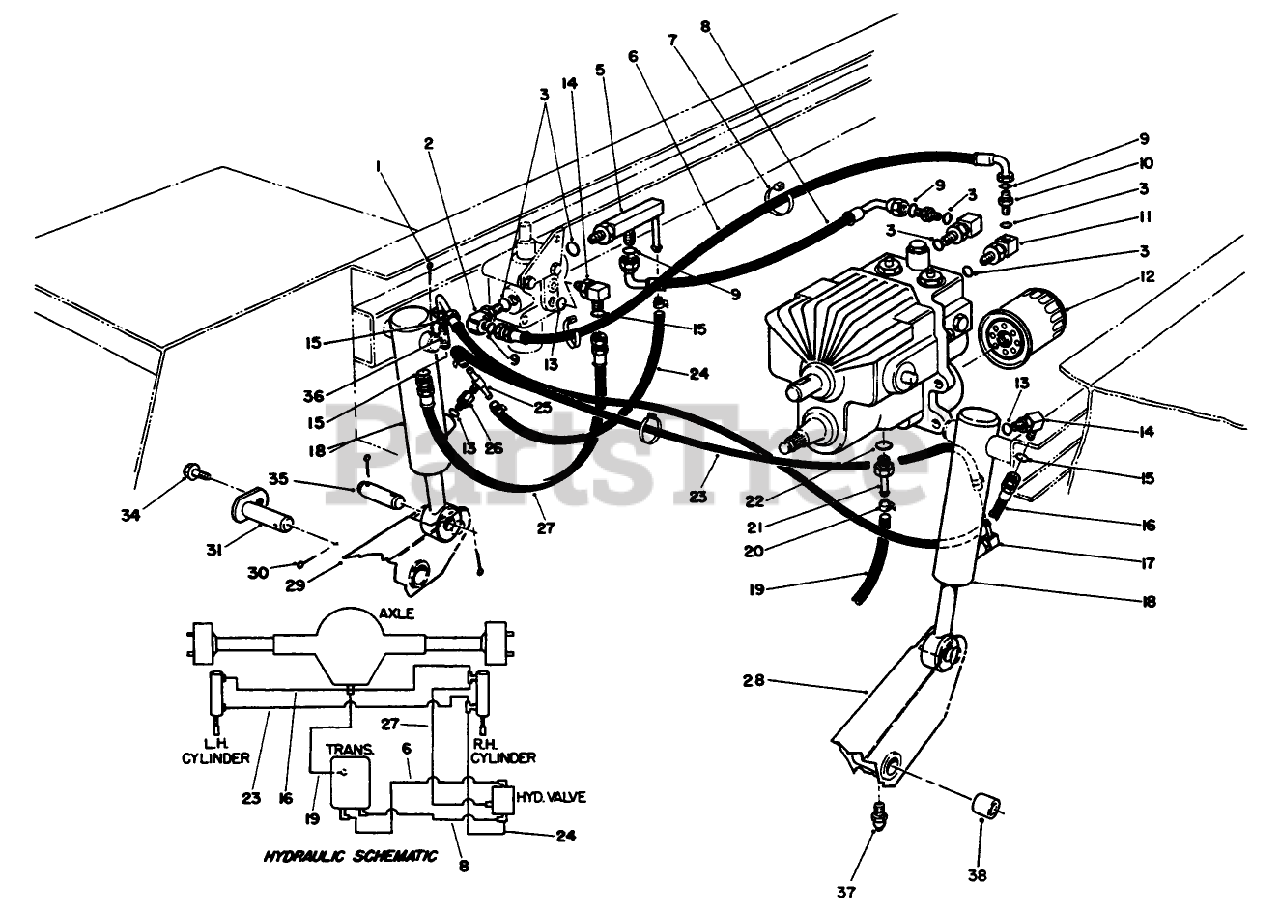

Hydraulic Valve Lift Arm Cylinders Parts Diagram

  • Title

1

Toro 3272-23

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

2

Toro 340-77

FITTING-ELBOW, 90 DEG

$30.99

$

Usually ships in 3-6 days

0

3

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

5

Toro 71-0590

DISCONTINUED

$

$

Not available

6

Toro 71-0670

DISCONTINUED

$

$

Not available

7

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

8

Toro 66-8190

HYDRAULIC HOSE ASM

$

$

Not available

9

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0

10

Toro 82-8530

FITTING-STR,ORIF

$43.99

$

Usually ships in 3-6 days

0

11

Toro 66-3110

FITTING-HYD, 90 DEG

$

$

Not available

12

Toro 23-2300

FILTER-OIL, TRANSMISSION

$15.99

$

In Stock, only 4 left!

0

13

Toro 237-78

O-RING

$4.99

$

In Stock, Qty 11

0

14

Toro 71-3270

DISCONTINUED

$

$

Not available

15

Toro 237-150

O RING

$

$

Not available

16

Toro 71-0680

DISCONTINUED

$

$

Not available

17

Toro 304-99

STEM-HOSE

$39.99

$

Usually ships in 3-6 days

0

18

Toro 68-9700

See Supercession: 114-0626
(Superseded to 114-0626)

$637.99

$

Usually ships in 3-6 days

0

19

Toro 66-8130

DISCONTINUED

$

$

Not available

20

Toro 2412-36

CLAMP-HOSE

$2.49

$

In Stock, only 1 left!

0

21

Toro 354-24

DISCONTINUED

$

$

Not available

22

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

23

Toro 27-4480

See Supercession: 109-0281
(Superseded to 109-0281)

$17.99

$

In Stock, only 2 left!

0

24

Toro 71-3770

DISCONTINUED

$

$

Not available

25

Toro 353-567

DISCONTINUED

$

$

Not available

26

Toro 353-565

DISCONTINUED

$

$

Not available

27

Toro 71-0690

HOSE ASSEMBLY

$91.99

$

Usually ships in 3-6 days

0

28

Toro 76-3090

LH LIFT ARM ASM

$848.99

$

Usually ships in 3-6 days

0

29

Toro 76-3080

RH LIFT ARM ASM

$848.99

$

Usually ships in 3-6 days

0

30

Toro 3272-17

PIN-COTTER

$2.99

$

In Stock, only 3 left!

0

31

Toro 27-4310

See Supercession: 27-4310-01
(Superseded to 27-4310-01)

$41.99

$

Usually ships in 3-6 days

0

34

Toro 3232-13

See Supercession: 3234-13
(Superseded to 3234-13)

$1.49

$

Usually ships in 3-6 days

0

35

Toro 27-4240

PIN-CYLINDER

$29.99

$

Usually ships in 3-6 days

0

36

Toro 340-125

FITTING-TEE

$85.99

$

Usually ships in 3-6 days

0

37

Toro 302-62

FITTING-GREASE

$1.99

$

Usually ships in 3-6 days

0

38

Toro 256-101

7/8 ID X 1.128 X 7/8 LG BSHG

$11.99

$

Usually ships in 3-6 days

0
