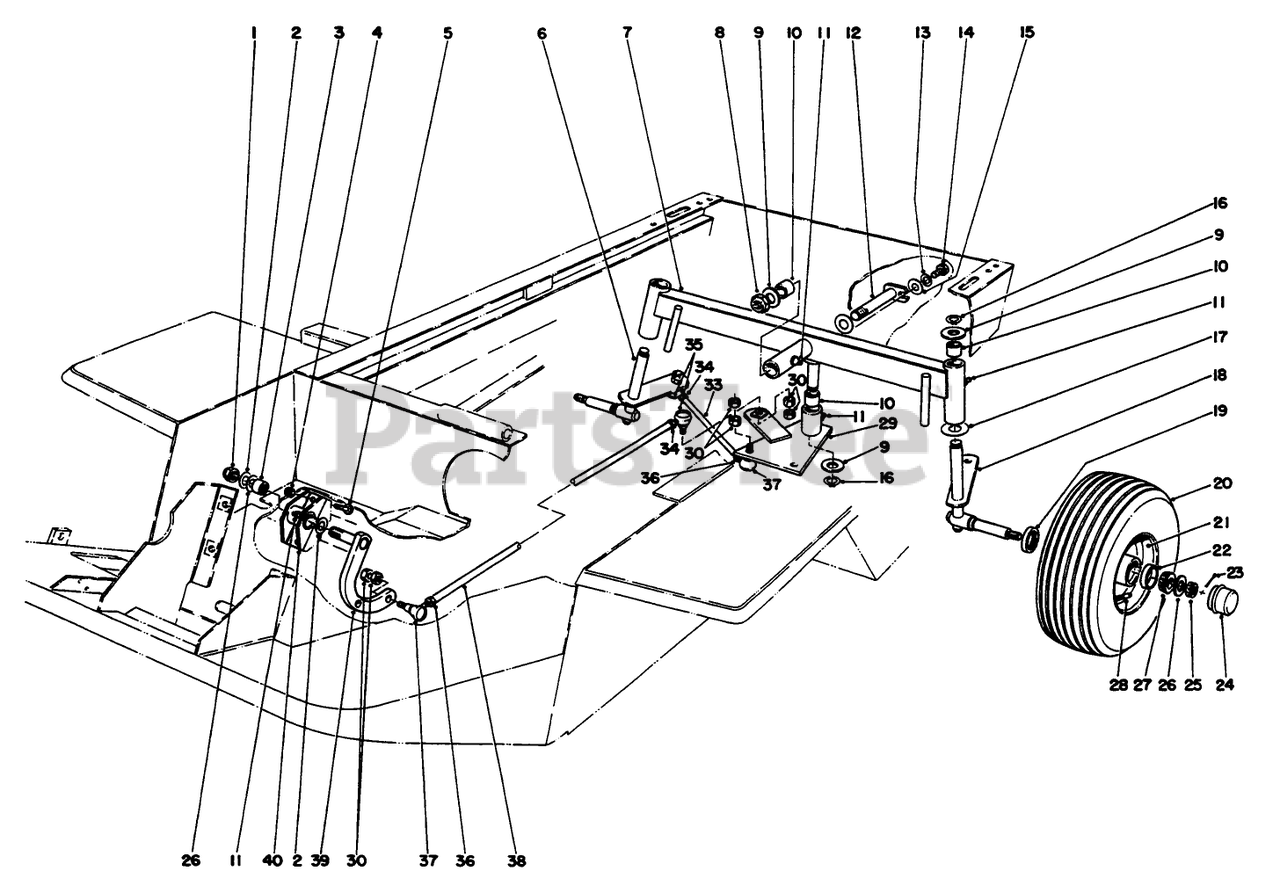

30620 (220) - Toro ProLine Rear-Engine Riding Mower (SN: 059000001 - 059999999) (1995) Rear Axle Assembly Parts Diagram

ProLine Rear-Engine Riding Mower

Rear Axle Assembly Parts Diagram

  • Title

1

Toro 3296-15

NUT-LOCK, NI

$2.99

$

In Stock, Qty 6

0

2

Toro 3-6514

THRUST WASHER

$

$

Not available

3

Toro 252-6

BEARING-NEEDLE

$14.99

$

In Stock, Qty 6

0

4

Toro 3296-44

NUT-LOCK, NI

$3.99

$

Usually ships in 3-6 days

0

5

Toro 323-5

SCREW-HH

$1.49

$

In Stock, Qty 5

0

6

Toro 39-8900

See Supercession: 39-8900-03
(Superseded to 39-8900-03)

$358.99

$

Usually ships in 3-6 days

0

7

Toro 44-9090

REAR AXLE WA

$997.99

$

Usually ships in 3-6 days

0

8

Toro 3296-49

NUT-LOCK, NI

$15.99

$

In Stock, only 2 left!

0

9

Toro 10-8110

WASHER-THRUST

$1.49

$

In Stock, Qty 20+

0

10

Toro 3-0348

See Supercession: 125-5196
(Superseded to 125-5196)

$7.99

$

In Stock, only 1 left!

0

11

Toro 302-5

FITTING-GREASE

$3.99

$

In Stock, Qty 20+

0

12

Toro 27-4060

See Supercession: 27-4060-01
(Superseded to 27-4060-01)

$

$

Not available

14

Toro 3234-13

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

16

Toro 32151-36

RING-RETAINING

$5.49

$

In Stock, Qty 20+

0

17

Toro 256-121

WASHER-THRUST

$6.49

$

In Stock, only 1 left!

0

18

Toro 39-8850

See Supercession: 39-8850-03
(Superseded to 39-8850-03)

$358.99

$

Usually ships in 3-6 days

0

19

Toro 253-129

SEAL

$25.99

$

Usually ships in 3-6 days

0

20

Toro 231-104

DISCONTINUED

$

$

Not available

Toro 232-39

TUBE-INNER

Note: Not illustrated

$34.99

$

Usually ships in 3-6 days

0

21

Toro 217-108

DISCONTINUED

$

$

Not available

22

Toro 254-72

BEARING-CUP, TAPERED

$11.99

$

In Stock, Qty 20+

0

23

Toro 3272-13

PIN-COTTER

$0.99

$

In Stock, Qty 6

0

24

Toro 241-119

CAP-DUST

$15.99

$

In Stock, only 2 left!

0

25

Toro 32136-5

NUT-HEX, SLOTTED

$8.99

$

In Stock, only 1 left!

0

26

Toro 3256-28

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

0

27

Toro 254-94

BEARING-CONE, TAPERED

$9.99

$

In Stock, Qty 11

0

28

Toro 232-35

See Supercession: 5108
(Superseded to 5108)

$8.49

$

Usually ships in 3-6 days

0

29

Toro 44-9120

DISCONTINUED

$

$

Not available

30

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 20+

0

33

Toro 27-4090

DISCONTINUED

$

$

Not available

34

Toro 3220-12

NUT-HEX JAM LH

$2.49

$

Usually ships in 3-6 days

0

35

Toro 21-0151

LH BALL JOINT ASM

$168.99

$

Usually ships in 3-6 days

0

36

Toro 3220-5

NUT-JAM

$1.99

$

In Stock, Qty 20+

0

37

Toro 21-0141

RH BALL JOINT ASM

$

$

Not available

38

Toro 44-9110

REAR STRG TUBE *PP

$

$

Not available

39

Toro 27-5230

PIVOT ARM WA

$

$

Not available

40

Toro 27-3640

DISCONTINUED

$

$

Not available
