30620 (220) - Toro ProLine Rear-Engine Riding Mower (SN: 059000001 - 059999999) (1995) Seat Mount Air Cleaner Assembly Parts Diagram

ProLine Rear-Engine Riding Mower

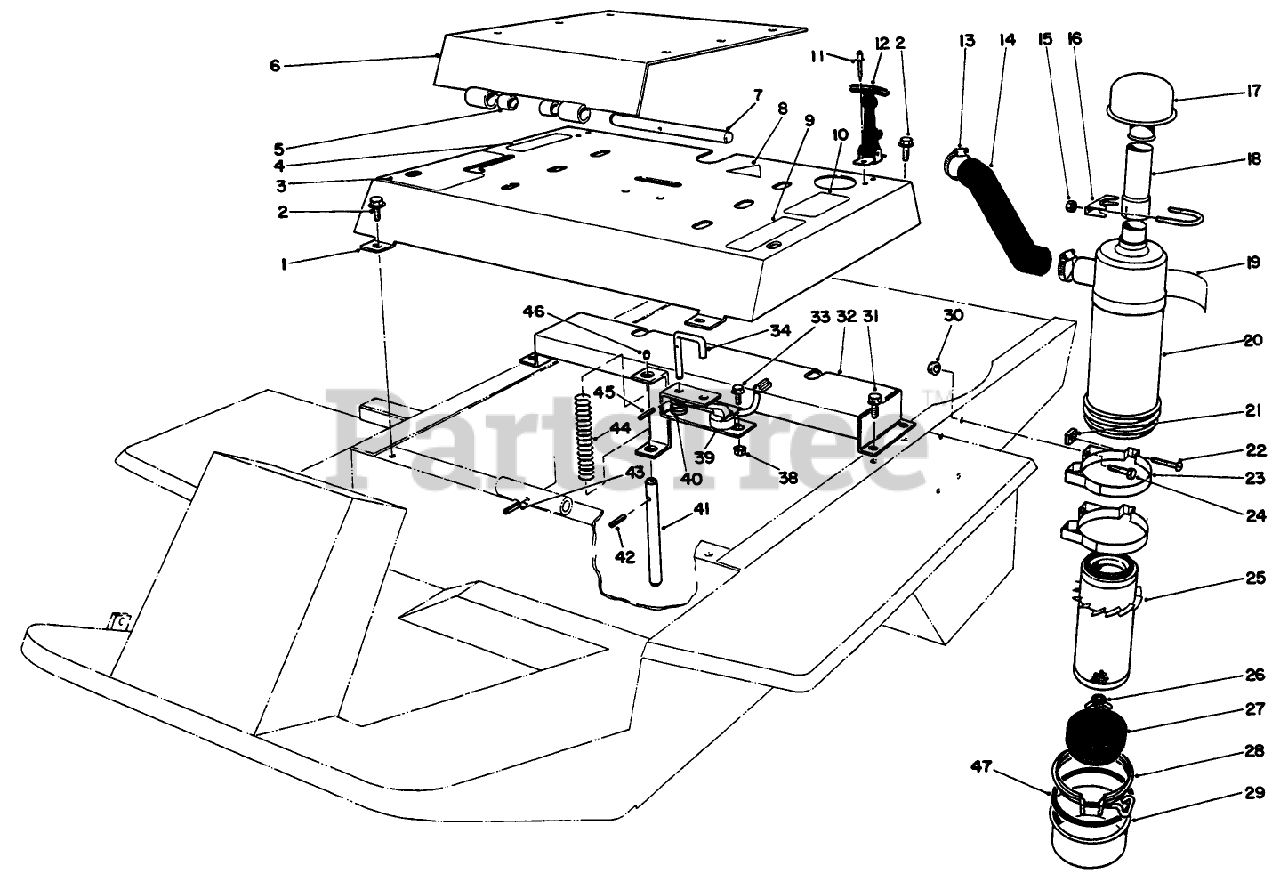

Seat Mount Air Cleaner Assembly Parts Diagram

  • Title

1

Toro 61-8140

See Supercession: 61-8140-01
(Superseded to 61-8140-01)

$347.99

$

Usually ships in 3-6 days

0

2

Toro 46-8560

SCREW-HHFTF

$2.49

$

In Stock, Qty 20+

0

3

Toro 68-7320

DISCONTINUED

$

$

Not available

4

Toro 67-1710

DECAL-WARNING

$

$

Not available

5

Toro 256-173

.503ID X .875LG BSHG

$1.99

$

Usually ships in 3-6 days

0

6

Toro 38-4020

SEAT MTG WA

$

$

Not available

7

Toro 27-4720

SHAFT-PIVOT, SEAT

$

$

Not available

8

Toro 43-8480

DECAL-DANGER

$7.99

$

In Stock, only 3 left!

0

9

Toro 68-7330

DECAL - CAUTION

$

$

Not available

10

Toro 27-7310

DECAL-REFUELING

$41.99

$

Usually ships in 3-6 days

0

11

Toro 3269-16

RIVET-POP
(Superseded to 3290-54)

$0.99

$

Usually ships in 3-6 days

0

12

Toro 249-39

See Supercession: 59-9740
(Superseded to 59-9740)

$43.99

$

Usually ships in 3-6 days

0

13

Toro 2412-42

CLAMP-HOSE

$11.99

$

Usually ships in 3-6 days

0

14

Toro 44-9050

HOSE

$94.99

$

Usually ships in 3-6 days

0

15

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

16

Toro 20-4840

CLAMP-MUFFLER

$20.99

$

Usually ships in 3-6 days

0

17

Toro 27-7180

CAP

$93.99

$

Usually ships in 3-6 days

0

18

Toro 44-8950

See Supercession: 44-8950-03
(Superseded to 44-8950-03)

$

$

Not available

19

Toro 27-7160

DECAL-INSTALLATION

$

$

Not available

20

Toro 27-7100

AIR CLEANER ASM

$487.99

$

Usually ships in 3-6 days

0

21

Toro 32107-11

NUT-SQUARE

$

$

Not available

22

Toro 3258-19

SCREW

$0.99

$

Usually ships in 3-6 days

0

23

Toro 27-7170

MOUNTING BAND ASM

$

$

Not available

24

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

25

Toro 27-7110

See Supercession: 108-3833
(Superseded to 108-3833)

$31.99

$

In Stock, only 2 left!

0

26

Toro 27-7120

NUT AND GASKET ASM

$

$

Not available

27

Toro 27-7140

SKIRT-BAFFLE

$114.99

$

Usually ships in 3-6 days

0

28

Toro 27-7130

CLAMP ASM

$66.99

$

Usually ships in 3-6 days

0

29

Toro 27-7150

A/C CUP ASM

$110.99

$

Usually ships in 3-6 days

0

30

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

31

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

32

Toro 37-9770

DISCONTINUED
(Superseded to 37-9770-01)

$

$

Not available

33

Toro 3234-13

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

34

Toro 38-3170

DISCONTINUED

$

$

Not available

35

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

38

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

39

Toro 29-6930

DISCONTINUED-SEE PB#936

$

$

Not available

40

Toro 3-6685

SPRING

$12.99

$

Usually ships in 3-6 days

0

41

Toro 27-9870

PIN-SWITCH, SEAT

$

$

Not available

42

Toro 32121-6

PIN-ROLL, SLOTTED

$0.99

$

Usually ships in 3-6 days

0

43

Toro 32121-4

PIN-ROLL, SLOTTED

$4.49

$

Usually ships in 3-6 days

0

44

Toro 37-9590

DISCONTINUED

$

$

Not available

45

Toro 32121-18

PIN-ROLL, SLOT

$

$

Not available

46

Toro 28-6180

PIN-PEDAL

$

$

Not available

47

Toro 80-3330

GASKET

$21.99

$

Usually ships in 3-6 days

0
