30652 - Toro 52" Side-Discharge Mower Deck (SN: 059000001 - 059999999) (1995) Carrier Frame Assembly Parts Diagram

52" Side-Discharge Mower Deck

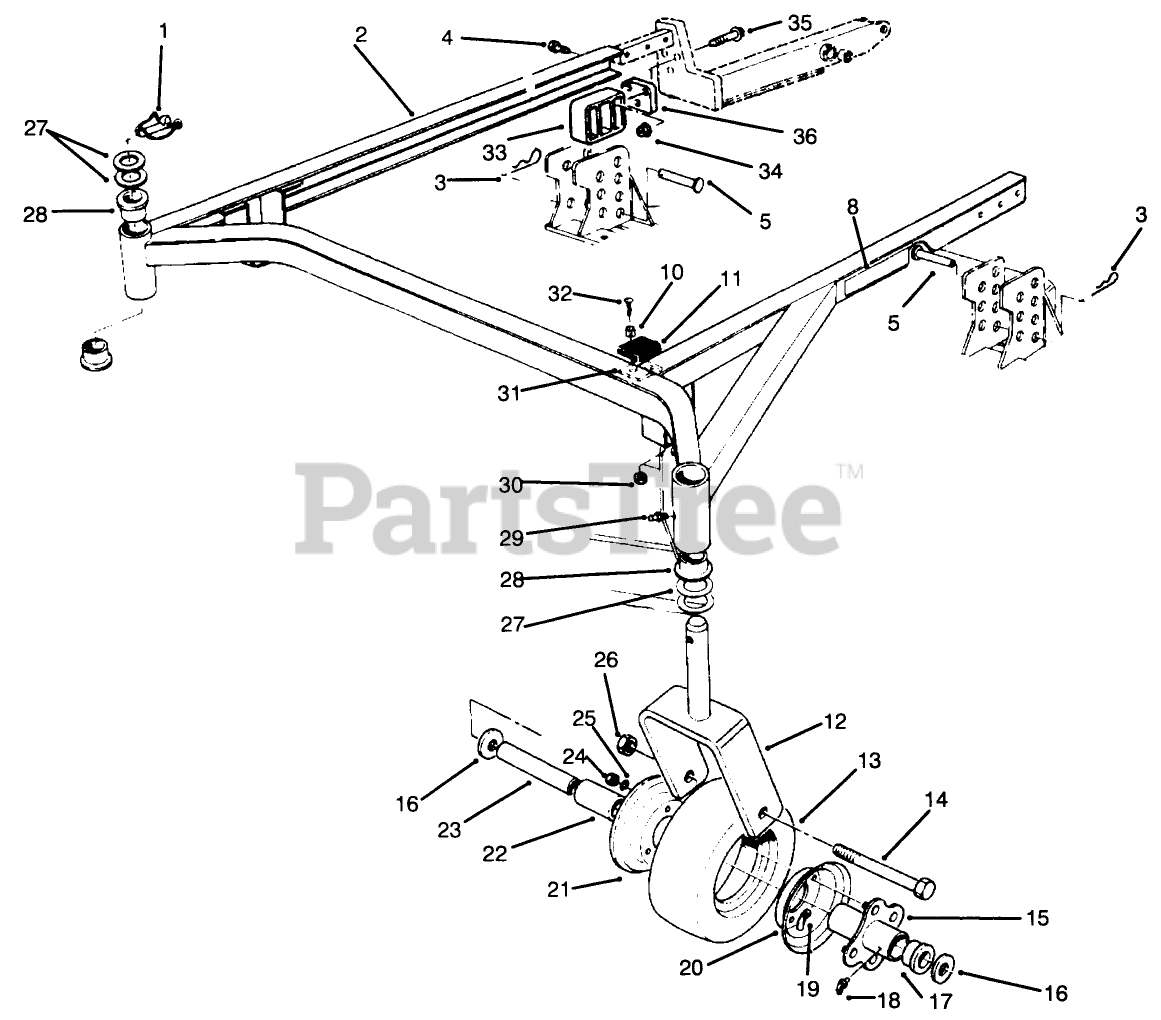

Carrier Frame Assembly Parts Diagram

  • Title

1

Toro 3290-384

PIN-LYNCH

$24.99

$

Usually ships in 3-6 days

0

2

Toro 83-4550

52-INCH CARRIER FRAME ASM

$1525.99

$

Usually ships in 3-6 days

0

(Incl. Ref. #28)

Note: Not illustrated

$

$

Not available

3

Toro 3290-355

PIN-HAIR

$2.99

$

In Stock, Qty 20+

0

4

Toro 325-32

SCREW-HH

$7.99

$

Usually ships in 3-6 days

0

5

Toro 283-55

PIN-CLEVIS

$13.99

$

In Stock, Qty 6

0

8

Toro 68-8360

DECAL-HOC, LH

$

$

Not available

10

Toro 40-9520

SPACER

$0.99

$

Usually ships in 3-6 days

0

11

Toro 40-0330

CUSHION-RUBBER

$10.99

$

Usually ships in 3-6 days

0

12

Toro 68-8900

See Supercession: 68-8900-01
(Superseded to 68-8900-01)

$143.99

$

Usually ships in 3-6 days

0

13

Toro 68-8960

TIRE

$85.99

$

In Stock, only 1 left!

0

14

Toro 325-19

SCREW-HH

$9.49

$

In Stock, Qty 12

0

15

Toro 68-8940

HUB-CENTER

$35.99

$

In Stock, only 2 left!

0

16

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 11

0

17

Toro 62-5580

BEARING-OUTSIDE

$7.99

$

In Stock, Qty 18

0

18

Toro 302-11

FITTING-LUBE, 45 DEG

$1.99

$

In Stock, Qty 5

0

19

Toro 68-8950

TUBE-INNER (W/VALVE)

$36.99

$

Usually ships in 3-6 days

0

20

Toro 68-8920

FEMALE WHEEL HALF

$19.99

$

Usually ships in 3-6 days

0

21

Toro 68-8930

MALE WHEEL HALF

$19.99

$

Usually ships in 3-6 days

0

22

Toro 62-5570

BEARING-ROLLER

$24.99

$

In Stock, only 2 left!

0

23

Toro 68-8980

SPANNER-TIRE

$11.99

$

In Stock, Qty 8

0

24

Toro 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

25

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

26

Toro 32153-5

NUT-HEX

$1.99

$

In Stock, Qty 8

0

27

Toro 3-6781

WASHER-THRUST

$3.99

$

In Stock, Qty 20+

0

28

Toro 28-9290

See Supercession: 94-1291
(Superseded to 94-1291)

$12.99

$

In Stock, only 3 left!

0

29

Toro 302-5

FITTING-GREASE

$3.99

$

In Stock, Qty 20+

0

30

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

31

Toro 42-6200

SHIM-CUSHION

$12.99

$

Usually ships in 3-6 days

0

32

Toro 32122-28

SCREW

$5.99

$

Usually ships in 3-6 days

0

33

Toro 83-4520

See Supercession: 83-4520-01
(Superseded to 83-4520-01)

$111.99

$

Usually ships in 3-6 days

0

34

Toro 32128-40

NUT-FLANGE

$7.99

$

Usually ships in 3-6 days

0

35

Toro 66-9302

SCREW-HHF, WHIZ

$5.49

$

Usually ships in 3-6 days

0

36

Toro 83-4580

See Supercession: 83-4580-01
(Superseded to 83-4580-01)

$15.99

$

Usually ships in 3-6 days

0

Toro 13-3869

See Supercession: 68-8970
(Superseded to 68-8970)

Note: Not illustrated

$139.99

$

Usually ships in 3-6 days

0
