30676 - Toro Cruise Control Kit for Groundsmaster 300 with Power Steering Cruise Control Assembly Parts Diagram

Cruise Control Kit for Groundsmaster 300 with Power Steering

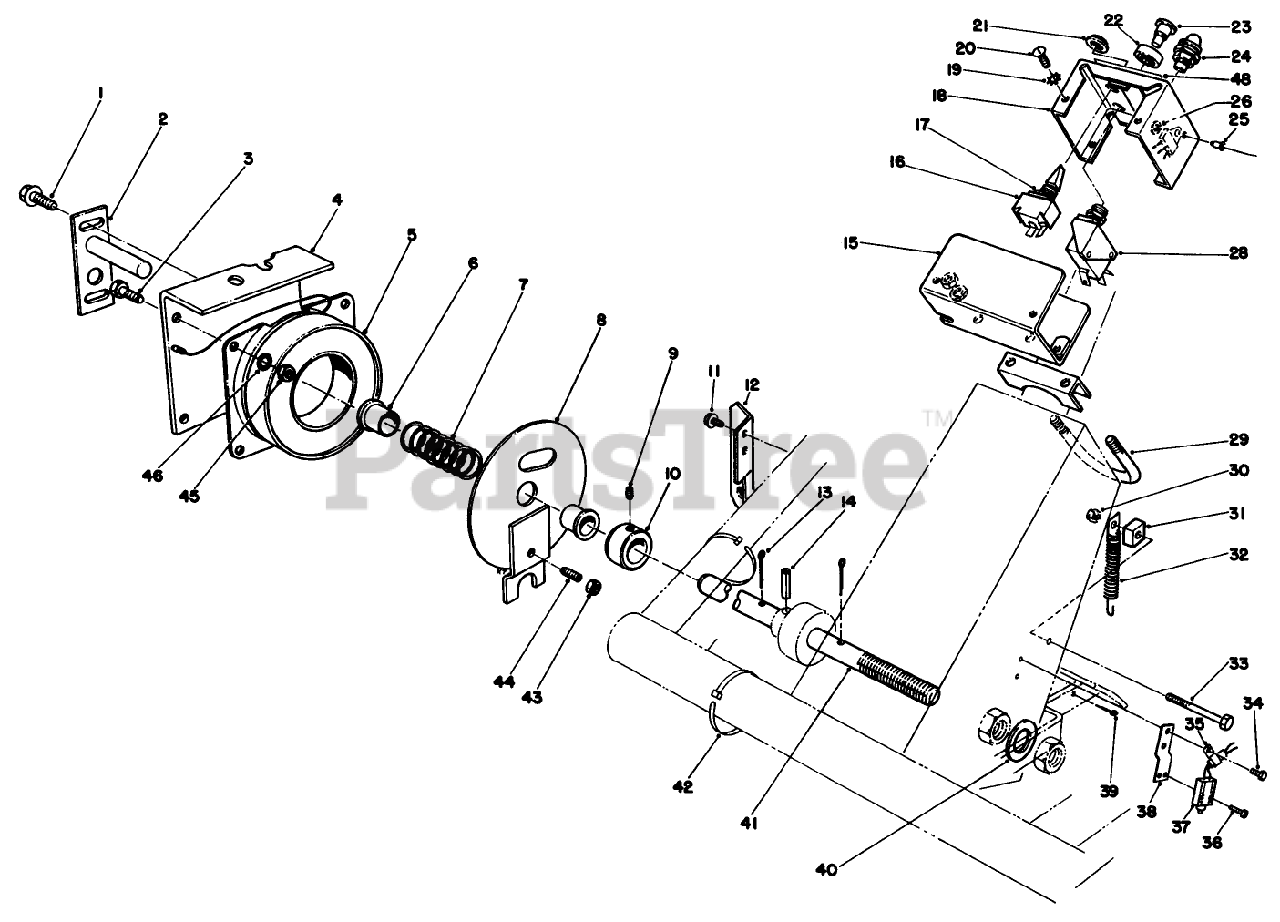

Cruise Control Assembly Parts Diagram

  • Title

1

Toro 3234-13

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

2

Toro 43-6170

DISCONTINUED

$

$

Not available

3

Toro 321-2

SCREW-HH

$3.99

$

In Stock, only 3 left!

0

4

Toro 43-6310

DISCONTINUED

$

$

Not available

5

Toro 42-1720

CORE-FIELD, COIL

$515.99

$

Usually ships in 3-6 days

0

6

Toro 256-273

BUSHING-FLANGE

$6.49

$

Usually ships in 3-6 days

0

7

Toro 43-6200

SPRING-COMPRESSION

$23.99

$

Usually ships in 3-6 days

0

8

Toro 43-6110

See Supercession: 43-6110-03
(Superseded to 43-6110-03)

$

$

Not available

9

Toro 3245-32

SCREW-HSH

$5.99

$

In Stock, only 2 left!

0

10

Toro 43-6320

COLLAR

$28.99

$

Usually ships in 3-6 days

0

11

Toro 32144-69

SCREW-HWHTF

Note: Required for units with Triflex 88" Cutting Unit.

$2.49

$

Usually ships in 3-6 days

0

12

Toro 67-9190

HOSE BRACKET *B

Note: Required for units with Triflex 88" Cutting Unit.

$48.99

$

Usually ships in 3-6 days

0

13

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

14

Toro 32121-16

PIN-SPRING

$0.99

$

In Stock, Qty 5

0

15

Toro 67-7360

HOUSING WA *B

$77.99

$

Usually ships in 3-6 days

0

16

Toro 28-4110

SWITCH-LIGHT

$48.99

$

Usually ships in 3-6 days

0

17

Toro 218-498

NUT-LOCK

$0.99

$

In Stock, only 1 left!

0

18

Toro 67-7340

DISCONTINUED

$

$

Not available

19

Toro 3255-5

WASHER-LOCK, EXT

$

$

Not available

20

Toro 3251-2

SCREW-PPH

$0.99

$

In Stock, Qty 5

0

21

Toro 218-497

DISCONTINUED PLEASE SEE NOTES

$

$

Not available

22

Toro 43-6420

BEZEL

$76.99

$

Usually ships in 3-6 days

0

23

Toro 43-6280

DISCONTINUED

$

$

Not available

24

Toro 40-6410

DISCONTINUED X-REF

$

$

Not available

Toro 218-516

LENS

Note: Not illustrated

$

$

Not available

25

Toro 3290-415

RIVET

$0.99

$

Usually ships in 3-6 days

0

26

Toro 3256-13

See Supercession: 3256-12
(Superseded to 3256-12)

$1.49

$

Usually ships in 3-6 days

0

28

Toro 43-6290

SWITCH

$

$

Not available

29

Toro 67-9520

MUFFLER CLAMP ASM

$

$

Not available

30

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

31

Toro 67-7440

SPACER-IDLER

$23.99

$

Usually ships in 3-6 days

0

32

Toro 67-7430

EXTENSION SPRING ASM

$71.99

$

Usually ships in 3-6 days

0

33

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

34

Toro 32144-63

See Supercession: 32144-4
(Superseded to 32144-4)

$1.49

$

In Stock, Qty 20+

0

35

Toro 2412-72

CLIP-CLOSED, INSULATED

$2.49

$

In Stock, Qty 12

0

36

Toro 3250-35

SCREW-PPH

$4.49

$

Usually ships in 3-6 days

0

37

Toro 67-7410

SWITCH

$57.99

$

Usually ships in 3-6 days

0

38

Toro 67-7380

BRACKET-SWITCH

$63.99

$

Usually ships in 3-6 days

0

39

Toro 3272-48

PIN-COTTER

$11.99

$

Usually ships in 3-6 days

0

40

Toro 43-8440

SPACER

$34.99

$

Usually ships in 3-6 days

0

41

Toro 88-3420

SHAFT-TRACTION PEDAL

$

$

Not available

42

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0

43

Toro 3217-26

NUT-HEX

$1.99

$

In Stock, Qty 7

0

44

Toro 3245-31

SCREW-HSH

$

$

Not available

45

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 9

0

46

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

48

Toro 43-6210

DISCONTINUED

$

$

Not available
