30686 - Toro 40" Walk-Behind Mower, Fixed Deck, Pistol Grip, Gear Drive (SN: 280000001 - 280999999) (2008) HANDLE AND CONTROL ASSEMBLY Parts Diagram

40" Walk-Behind Mower, Fixed Deck, Pistol Grip, Gear Drive

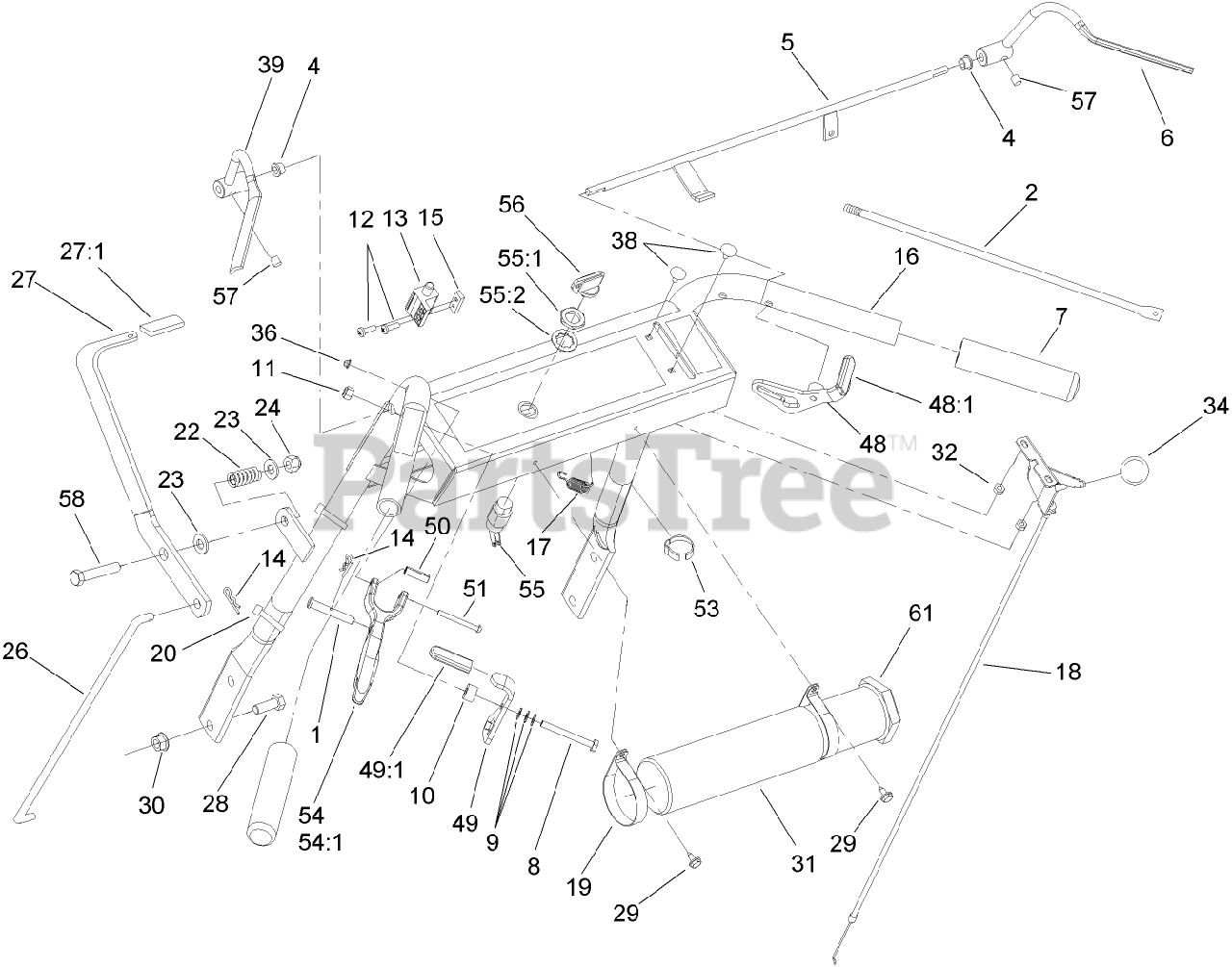

HANDLE AND CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 1-808286

PIN-CLEVIS

$5.99

$

In Stock, Qty 20+

0

2

Toro 1-323359

Linkage-Wheel, Drive

$25.99

$

In Stock, only 2 left!

0

4

Toro 1-303365

BUSHING-NYLON

$5.99

$

In Stock, Qty 20+

0

5

Toro 106-2717-03

ROD-CONTROL, OPERATOR PRESENCE

$71.99

$

Usually ships in 3-6 days

0

6

Toro 106-5486

RH OPERATOR PRESENCE CONTROL LEVER ASM

$65.99

$

Usually ships in 3-6 days

0

7

Toro 104-9838

GRIP-FOAM

$6.49

$

In Stock, Qty 20+

0

8

Toro 321-18

SCREW-HH

$2.49

$

In Stock, Qty 17

0

9

Toro 1-303435

WASHER-SPRING

$1.99

$

In Stock, Qty 20+

0

10

Toro 1-323549

SPACER

$14.99

$

Usually ships in 3-6 days

0

11

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

12

Toro 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

13

Toro 1-513051

SWITCH-OPEN, NORMALLY

$21.99

$

In Stock, Qty 13

0

14

Toro 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

15

Toro 1-633181

PLATE-TAPPED

$7.49

$

In Stock, only 3 left!

0

16

Toro 110-6906

HANDLE ASM

$

$

Not available

17

Toro 1-303363

SPRING-EXTENSION

$7.49

$

In Stock, Qty 15

0

18

Toro 1-633696

THROTTLE CABLE ASM

$68.99

$

In Stock, Qty 19

0

19

Toro 2412-120

CLAMP-R

$8.49

$

Usually ships in 3-6 days

0

20

Toro 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

22

Toro 1-303160

SPRING-COMPRESSION

$7.49

$

Usually ships in 3-6 days

0

23

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

24

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

26

Toro 1-323298

Linkage-Blade, Upper

$102.99

$

Usually ships in 3-6 days

0

27

Toro 1-322157

LEVER ASM
(Superseded to 116-6331)

$62.99

$

Usually ships in 3-6 days

0

27:1

Toro 1-303020

GRIP-LEVER

$2.99

$

In Stock, only 2 left!

0

28

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

29

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

30

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

31

Toro 104-7050

TUBE-MANUAL

$10.99

$

Usually ships in 3-6 days

0

32

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

34

Toro 1-513592

KNOB-BALL

$7.49

$

In Stock, Qty 16

0

36

Toro 1-803001

NUT

$1.49

$

In Stock, Qty 20+

0

38

Toro 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0

39

Toro 106-5485

LH OPERATOR PRESENCE CONTROL LEVER ASM

$72.99

$

Usually ships in 3-6 days

0

48

Toro 1-324280

RH THUMB LATCH ASM
(Superseded to 137-9507)

$30.99

$

In Stock, only 2 left!

0

48:1

Toro 1-303019

GRIP-LATCH

$2.99

$

In Stock, only 2 left!

0

49

Toro 1-324279

LH THUMB LATCH ASM
(Superseded to 137-9508)

$30.99

$

In Stock, only 2 left!

0

49:1

Toro 1-303019

GRIP-LATCH

$2.99

$

In Stock, only 2 left!

0

50

Toro 1-806340

PIN-ROLL

$5.99

$

In Stock, Qty 8

0

51

Toro 1-808250

PIN-LEVER, DRIVE

$2.99

$

In Stock, Qty 20+

0

52

Toro 103-1610

HARNESS-WIRING

Note: Not illustrated

$

$

Not available

53

Toro 1-303088

Clip-Cable

$2.99

$

Usually ships in 3-6 days

0

54

Toro 1-302006

DRIVE LEVER ASM

$63.99

$

In Stock, Qty 7

0

54:1

Toro 1-303021

GRIP-LEVER, DRIVE

$1.99

$

In Stock, Qty 20+

0

55

Toro 29-5560

SWITCH-ON / OFF

$18.99

$

In Stock, only 2 left!

0

55:1

Toro 218-461

NUT-HH

$4.49

$

In Stock, only 1 left!

0

55:2

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, Qty 20+

0

56

Toro 63-8360

KEY-IGNITION

$6.49

$

In Stock, Qty 20+

0

57

Toro 1-803322

SCREW-SET

$1.49

$

In Stock, Qty 20+

0

58

Toro 323-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

61

Toro 104-7048

CAP-HOUSING

$6.49

$

In Stock, only 1 left!
