30696 - Toro 40" Walk-Behind Mower, Fixed Deck, T-Bar, Gear Drive (SN: 280000001 - 280999999) (2008) Deck Assembly Parts Diagram

40" Walk-Behind Mower, Fixed Deck, T-Bar, Gear Drive

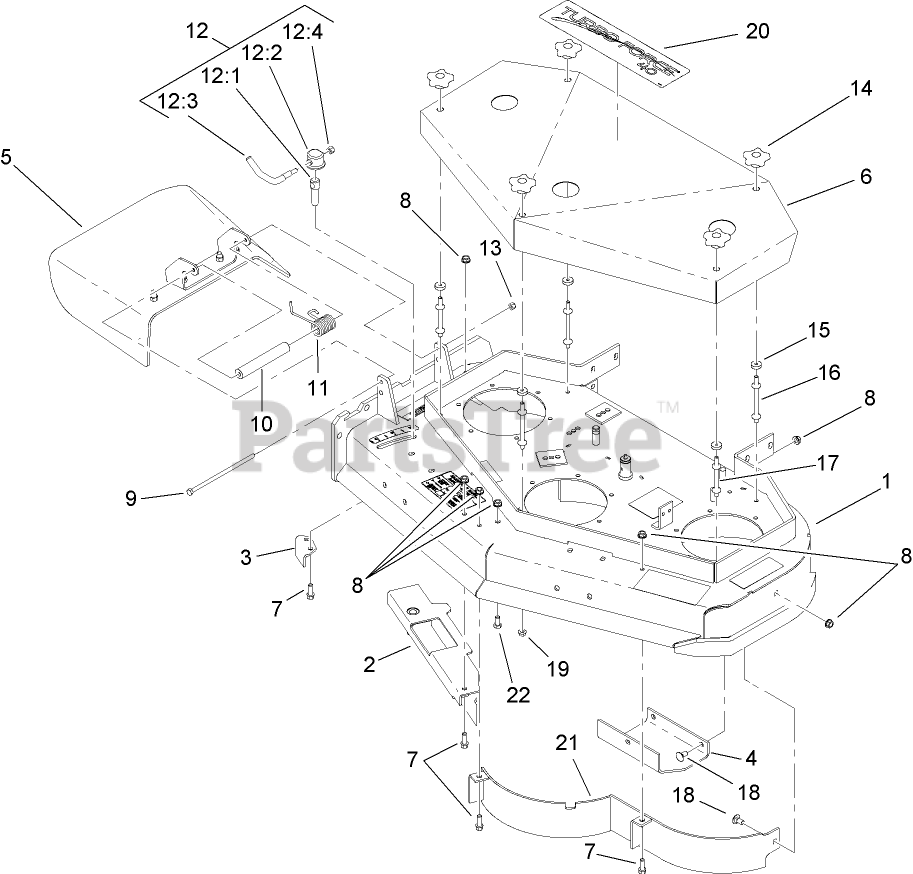

Deck Assembly Parts Diagram

  • Title

1

Toro 110-4908

DECK ASM

$

$

Not available

2

Toro 110-0795-03

BAFFLE ADJUST ASM

$

$

Not available

3

Toro 108-7273-01

BAFFLE-DISCHARGE

$38.99

$

Usually ships in 3-6 days

0

4

Toro 108-7282-01

PLATE-SKID

$74.99

$

Usually ships in 3-6 days

0

5

Toro 110-0790

DEFLECTOR ASM

$321.99

$

Usually ships in 3-6 days

0

6

Toro 110-2034-01

COVER-DECK

$

$

Not available

7

Toro 92-1624

See Supercession: 95-1726
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

8

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

9

Toro 322-50

SCREW-HH

$6.99

$

In Stock, Qty 13

0

10

Toro 105-4622

SPACER

$11.99

$

In Stock, only 2 left!

0

11

Toro 104-8554

SPRING-TORSION

$27.99

$

Usually ships in 3-6 days

0

12

Toro 107-1664

LEVER ASM

$84.99

$

In Stock, only 2 left!

0

12:1

Toro 106-3239

SCREW-LOCK

$57.99

$

Usually ships in 3-6 days

0

12:2

Toro 107-1644

CAP-LOCK

$45.99

$

In Stock, only 2 left!

0

12:3

Toro 106-3241

See Supercession: 107-1664
(Superseded to 107-1664)

$84.99

$

In Stock, only 2 left!

0

12:4

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

13

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

14

Toro 106-4161

KNOB-HANDLE

$5.99

$

In Stock, Qty 20+

0

15

Toro 1-323417

WASHER

$3.99

$

In Stock, Qty 20+

0

16

Toro 1-303536

STUD-SHIELD, BELT (LONG)

$8.49

$

In Stock, Qty 20+

0

17

Toro 1-303537

STUD-SHIELD, BELT (SHORT)

$6.99

$

In Stock, Qty 9

0

18

Toro 3231-1

SCREW-CARR

$1.49

$

In Stock, Qty 13

0

19

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

20

Toro 110-6919

See Supercession: 112-9711
(Superseded to 112-9711)

$95.99

$

Usually ships in 3-6 days

0

21

Toro 110-6910-03

BAFFLE ASM

$284.99

$

Usually ships in 3-6 days

0

22

Toro 323-4

SCREW-HH

$4.49

$

In Stock, Qty 20+

0
