30721 - Toro 72" Side-Discharge Rear-Engine Riding Mower (SN: 003000001 - 003999999) (1983) Cutting Unit Model 30721 Parts Diagram

72" Side-Discharge Rear-Engine Riding Mower

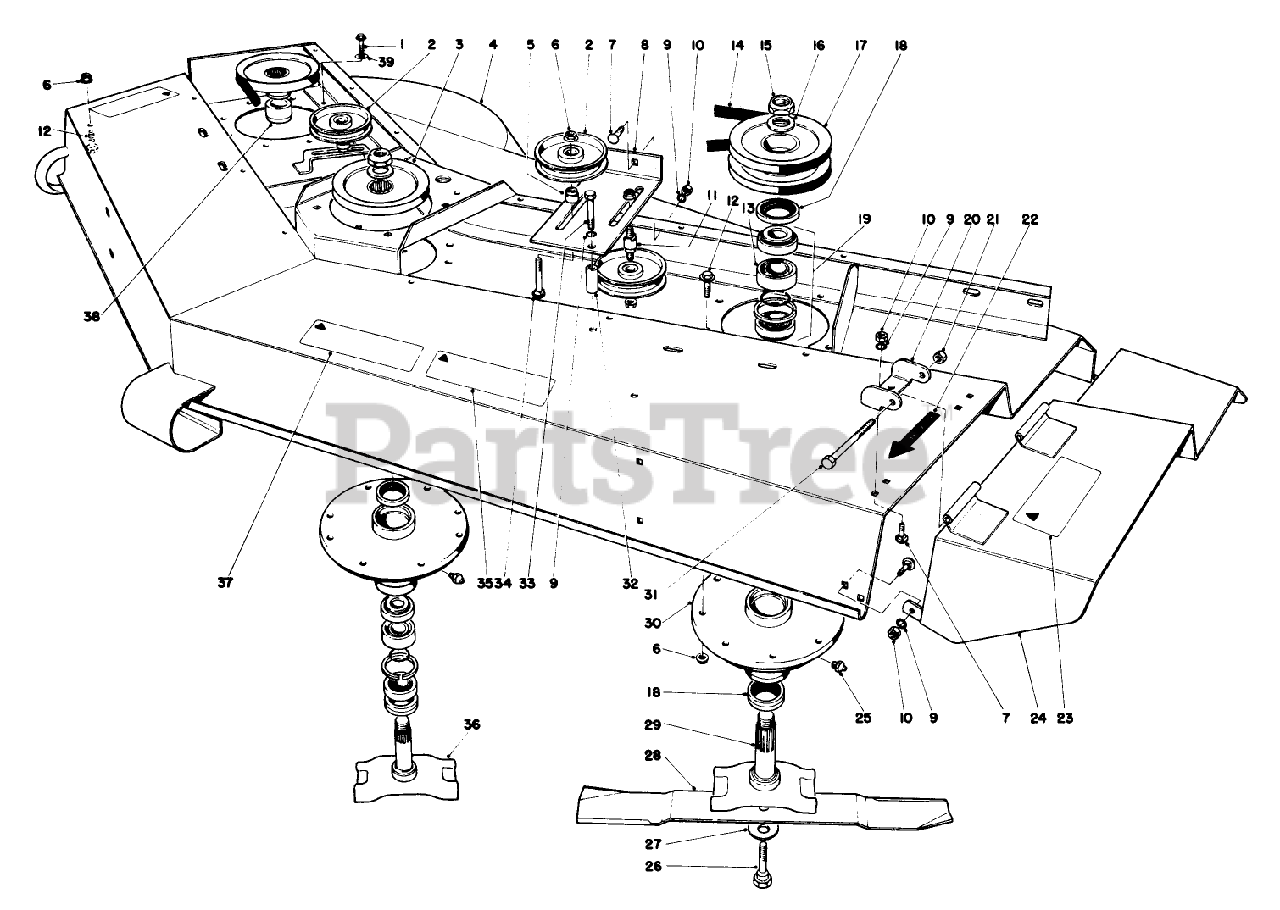

Cutting Unit Model 30721 Parts Diagram

  • Title

1

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

2

Toro 26-1840

PULLEY-IDLER

$

$

Not available

3

Toro 26-1760

PULLEY AND HUB ASM

$

$

Not available

4

Toro 26-1130

DISCONTINUED

$

$

Not available

5

Toro 26-1860

SPACER-IDLER PULLEY

$

$

Not available

6

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

7

Toro 3231-27

SCREW-CARR

$4.99

$

In Stock, Qty 20+

0

8

Toro 26-1870

See Supercession: 26-1870-03
(Superseded to 26-1870-03)

$

$

Not available

9

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, only 4 left!

0

10

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 15

0

11

Toro 26-1850

STUD-IDLER

$

$

Not available

12

Toro 3234-1

SCREW-HHF

$1.99

$

In Stock, Qty 14

0

13

Toro 26-1730

See Supercession: 49-8320
(Superseded to 49-8320)

$

$

Not available

14

Toro 214890

V-Belt

$

$

Currently unavailable

15

Toro 329649

Nut

$

$

Currently unavailable

16

Toro 3-8514

WASHER-THRUST

$3.99

$

In Stock, Qty 20+

0

17

Toro 26-9100

See Supercession: 84-2060
(Superseded to 84-2060)

$

$

Not available

18

Toro 253-138

SEAL-OIL

$12.99

$

In Stock, Qty 5

0

19

Toro 26-1830

See Supercession: 110-8297
(Superseded to 110-8297)

$61.99

$

In Stock, only 2 left!

0

20

Toro 26-1950

DISCONTINUED

$

$

Not available

21

Toro 32146-13

NUT-HEX

$4.99

$

In Stock, only 2 left!

0

22

Toro 26-7120

DISCONTINUED

$

$

Not available

23

Toro 26-7980

DISCONTINUED

$

$

Not available

24

Toro 26-1910

See Supercession: 51-2700
(Superseded to 51-2700)

$

$

Not available

25

Toro 302-52

FITTING-GREASE

$7.49

$

In Stock, Qty 19

0

26

Toro 26-1820

CAPSCREW

$

$

Not available

27

Toro 26-1990

WASHER-BELLEVILLE

$21.99

$

Usually ships in 3-6 days

0

28

Toro 29-5530

See Supercession: 29-5530-03
(Superseded to 29-5530-03)

$78.99

$

In Stock, Qty 5

0

29

Toro 26-1690

DISCONTINUED

$

$

Not available

30

Toro 26-1630

See Supercession: 84-2020
(Superseded to 84-2020)

$348.99

$

Usually ships in 3-6 days

0

31

Toro 325-17

SCREW-HH

$6.99

$

In Stock, Qty 20+

0

32

Toro 26-1880

SPACER-IDLER MOUNT

$

$

Not available

33

Toro 323-12

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

34

Toro 3231-29

SCREW-CARR

$8.49

$

In Stock, Qty 16

0

35

Toro 26-7970

CAUTION DECAL (BLADE)

$

$

Not available

36

Toro 26-1680

See Supercession: 84-5370
(Superseded to 84-5370)

$

$

Not available

37

Toro 26-7960

See Supercession: 68-7280
(Superseded to 68-7280)

$13.99

$

Usually ships in 3-6 days

0

38

Toro 26-1790

See Supercession: 84-2090
(Superseded to 84-2090)

$

$

Not available

39

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

Toro 23-2410

See Supercession: 23-2410-03
(Superseded to 23-2410-03)

Note: Not illustrated

$57.99

$

Usually ships in 3-6 days

0
