30721 - Toro 72" Side-Discharge Rear-Engine Riding Mower (SN: 005000001 - 005999999) (1985) Hydrostatic Transmission Valve Assembly Parts Diagram

72" Side-Discharge Rear-Engine Riding Mower

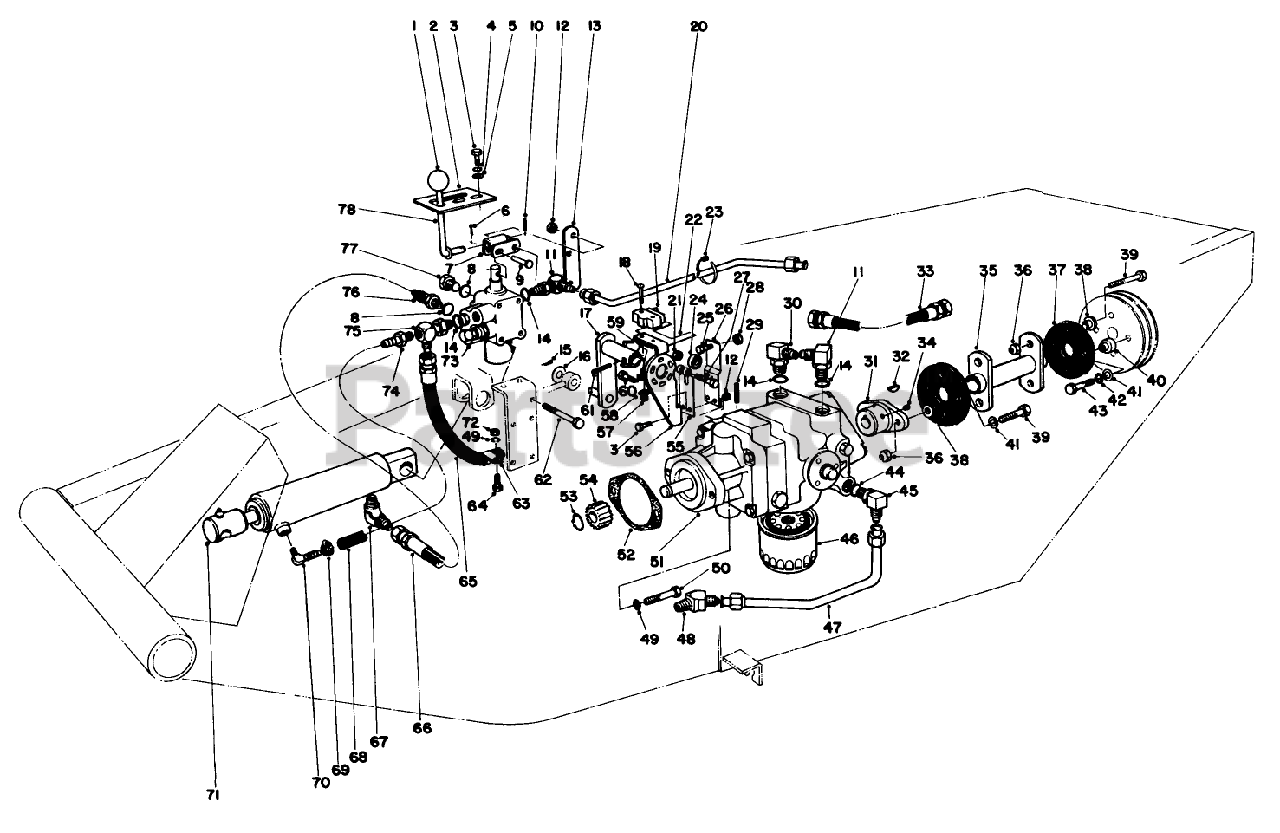

Hydrostatic Transmission Valve Assembly Parts Diagram

  • Title

1

Toro 233-21

KNOB

$14.99

$

Usually ships in 3-6 days

0

2

Toro 21-8640

LATCH-LEVER, VALVE

$

$

Not available

3

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

5

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

7

Toro 21-8590

See Supercession: 21-8590-03
(Superseded to 21-8590-03)

$

$

Not available

8

Toro 237-78

O-RING

$4.99

$

In Stock, Qty 11

0

9

Toro 283-17

PIN-CLEVIS

$6.99

$

Usually ships in 3-6 days

0

10

Toro 32121-73

PIN-ROLL

$0.99

$

Usually ships in 3-6 days

0

11

Toro 353-374

See Supercession: 103-1802
(Superseded to 103-1802)

$27.99

$

In Stock, only 2 left!

0

12

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

13

Toro 21-9010

LEVER-VALVE, PIVOT MOUNT

$

$

Not available

14

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

15

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, only 4 left!

0

16

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 11

0

17

Toro 28-9570

See Supercession: 28-9570-03
(Superseded to 28-9570-03)

$

$

Not available

18

Toro 3249-11

SCREW-MACHINE

$0.99

$

Usually ships in 3-6 days

0

19

Toro 29-6161

See Supercession: 29-6162
(Superseded to 29-6162)

$142.99

$

Usually ships in 3-6 days

0

20

Toro 23-1880

DISCONTINUED

$

$

Not available

21

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

22

Toro 46-8810

STOP-SPRING, LEAF

$

$

Not available

23

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

24

Toro 251-259

BEARING-BALL

$18.99

$

In Stock, only 2 left!

0

25

Toro 3210-7

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

26

Toro 29-6170

EXTENDED LEAF SPRING ASM

$53.99

$

Usually ships in 3-6 days

0

27

Toro 322-17

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

28

Toro 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

29

Toro 32121-6

PIN-ROLL, SLOTTED

$0.99

$

Usually ships in 3-6 days

0

30

Toro 353-511

FITTING-HYD, 90 DEG

$38.99

$

Usually ships in 3-6 days

0

31

Toro 33-4380

See Supercession: 110-9695
(Superseded to 110-9695)

$73.99

$

In Stock, only 1 left!

0

32

Toro 3257-32

KEY-WOODRUFF

$2.99

$

In Stock, only 1 left!

0

33

Toro 33-4410

DISCONTINUED

$

$

Not available

34

Toro 3241-5

SCREW-SET

$2.49

$

In Stock, only 2 left!

0

35

Toro 46-6370

DISCONTINUED

$

$

Not available

36

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 7

0

37

Toro 44-2230

See Supercession: 115-4523
(Superseded to 115-4523)

$61.99

$

In Stock, Qty 13

0

38

Toro 27-6600

See Supercession: 125-9249
(Superseded to 125-9249)

$3.49

$

In Stock, only 1 left!

0

39

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

40

Toro 27-6590

SPACER-COUPLING, RUBBER

$17.99

$

Usually ships in 3-6 days

0

41

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

42

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

43

Toro 322-8

SCREW-HH

$3.99

$

In Stock, Qty 6

0

44

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

45

Toro 353-370

FITTING-ELBOW, 90 DEG

$87.99

$

Usually ships in 3-6 days

0

46

Toro 23-2300

FILTER-OIL, TRANSMISSION

$15.99

$

In Stock, only 4 left!

0

47

Toro 23-1900

AXLE-PUMP TUBE ASM

$

$

Not available

48

Toro 353-535

45 DEG FITTING

$

$

Not available

49

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, only 4 left!

0

50

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

51

Toro 48-1790

DISCONTINUED
(Superseded to 92-8902)

$

$

Not available

52

Toro 41-8760

GASKET

$

$

Not available

53

Toro 32120-72

RING-SNAP

$2.99

$

In Stock, Qty 20+

0

54

Toro 23-4810

See Supercession: 86-7220
(Superseded to 86-7220)

$108.99

$

Usually ships in 3-6 days

0

55

Toro 29-6150

See Supercession: 110-9650
(Superseded to 110-9650)

$49.99

$

Usually ships in 3-6 days

0

56

Toro 29-6120

See Supercession: 29-6120-03
(Superseded to 29-6120-03)

$

$

Not available

57

Toro 3217-16

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

58

Toro 3254-9

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

59

Toro 3255-7

WASHER-LOCK/EXT

$1.99

$

In Stock, only 3 left!

0

60

Toro 32104-42

See Supercession: 32104-95
(Superseded to 32104-95)

$0.99

$

In Stock, Qty 7

0

61

Toro 32121-24

PIN-SPRING

$1.99

$

In Stock, only 4 left!

0

62

Toro 321-23

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

63

Toro 2412-4

CLAMP-R

$5.99

$

Usually ships in 3-6 days

0

64

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

65

Toro 26-2380

DISCONTINUED

$

$

Not available

66

Toro 21-8580

DISCONTINUED

$

$

Not available

67

Toro 5-6560

DISCONTINUED

$

$

Not available

68

Toro 6-1190

See Supercession: 107-9297
(Superseded to 107-9297)

$8.99

$

In Stock, only 2 left!

0

69

Toro 2412-36

CLAMP-HOSE

$2.49

$

In Stock, only 1 left!

0

70

Toro 304-75

CONNECTOR-HOSE

$9.99

$

Usually ships in 3-6 days

0

71

Toro 53-3160

See Supercession: 100-6587
(Superseded to 100-6587)

$

$

Not available

72

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 15

0

73

Toro 43-1710

See Supercession: 121-9070
(Superseded to 121-9070)

$609.99

$

Usually ships in 3-6 days

0

74

Toro 304-73

FITTING-STRAIGHT

$20.99

$

Usually ships in 3-6 days

0

75

Toro 21-4940

FITTING ASM

$

$

Not available

76

Toro 353-375

FITTING-ELBOW, 90

$56.99

$

Usually ships in 3-6 days

0

77

Toro 353-512

PLUG

$24.99

$

Usually ships in 3-6 days

0

78

Toro 21-8620

See Supercession: 21-8620-03
(Superseded to 21-8620-03)

$

$

Not available
