30738 - Toro Light Kit for Roll-Over Protection System (SN: 000500001 - 000599999) (1975) Light Kit For Roll Over Protection 72" Groundsmaster Parts Diagram

Light Kit for Roll-Over Protection System

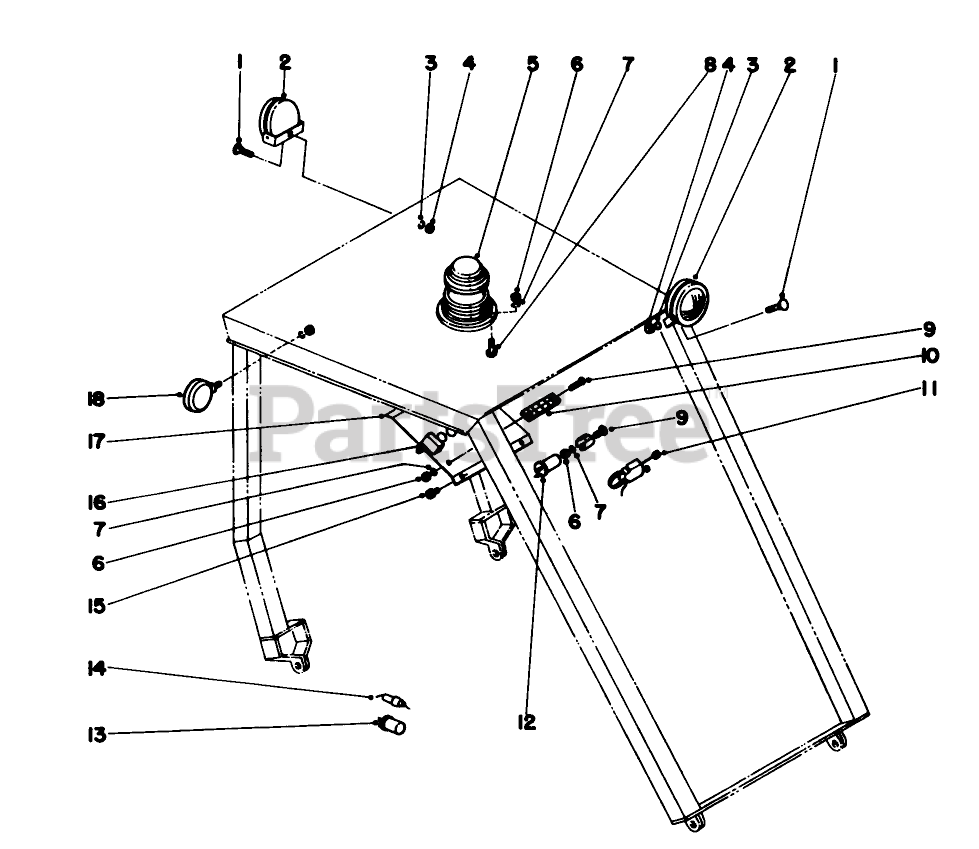

Light Kit For Roll Over Protection 72" Groundsmaster Parts Diagram

  • Title

1

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

2

Toro 25-4250

Headlight

$

$

Currently unavailable

3

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, only 4 left!

0

4

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 15

0

5

Toro 25-4220

Flashing Amber Beacon

$

$

Currently unavailable

6

Toro 3217-26

NUT-HEX

$1.99

$

In Stock, Qty 8

0

7

Toro 3253-17

WASHER-LOCK

$0.99

$

In Stock, only 4 left!

0

8

Toro 3251-4

SCREW-SRH

$0.99

$

In Stock, only 2 left!

0

9

Toro 3251-2

SCREW-PPH

$0.99

$

In Stock, Qty 5

0

10

Toro 25-4540

DISCONTINUED

$

$

Not available

11

Toro 11-6400

Signal Controller

$

$

Currently unavailable

12

Toro 25-4300

Flasher (2 Prong)

$

$

Currently unavailable

13

Toro 218-456

FLASHER

$43.99

$

Usually ships in 3-6 days

0

14

Toro 218-273

Fuse Holder with Fuse

$

$

Not available

15

Toro 32144-10

SCREW-HWH

$5.49

$

In Stock, Qty 16

0

16

Toro 25-4230

DISCONTINUED

$

$

Not available

17

Toro 25-4280

DISCONTINUED

$

$

Not available

18

Toro 25-4260

Signal Tail Lights

$

$

Currently unavailable

40 Ft. Wire

Note: Not illustrated

$

$

Not available

Eyelet Terminal 1/4 Stud 14 Ga. Wire

Note: Not illustrated

$

$

Not available

Female Receptacle .250 x .032 tab 14 Ga. Wire

Note: Not illustrated

$

$

Not available

Slotted Spade Terminal No. 6 Stud 14 Ga. Wire

Note: Not illustrated

$

$

Not available
