30760 (52) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 00000001 - 09999999) (1980) Differential Assembly Parts Diagram

Groundsmaster Rear-Engine Riding Mower

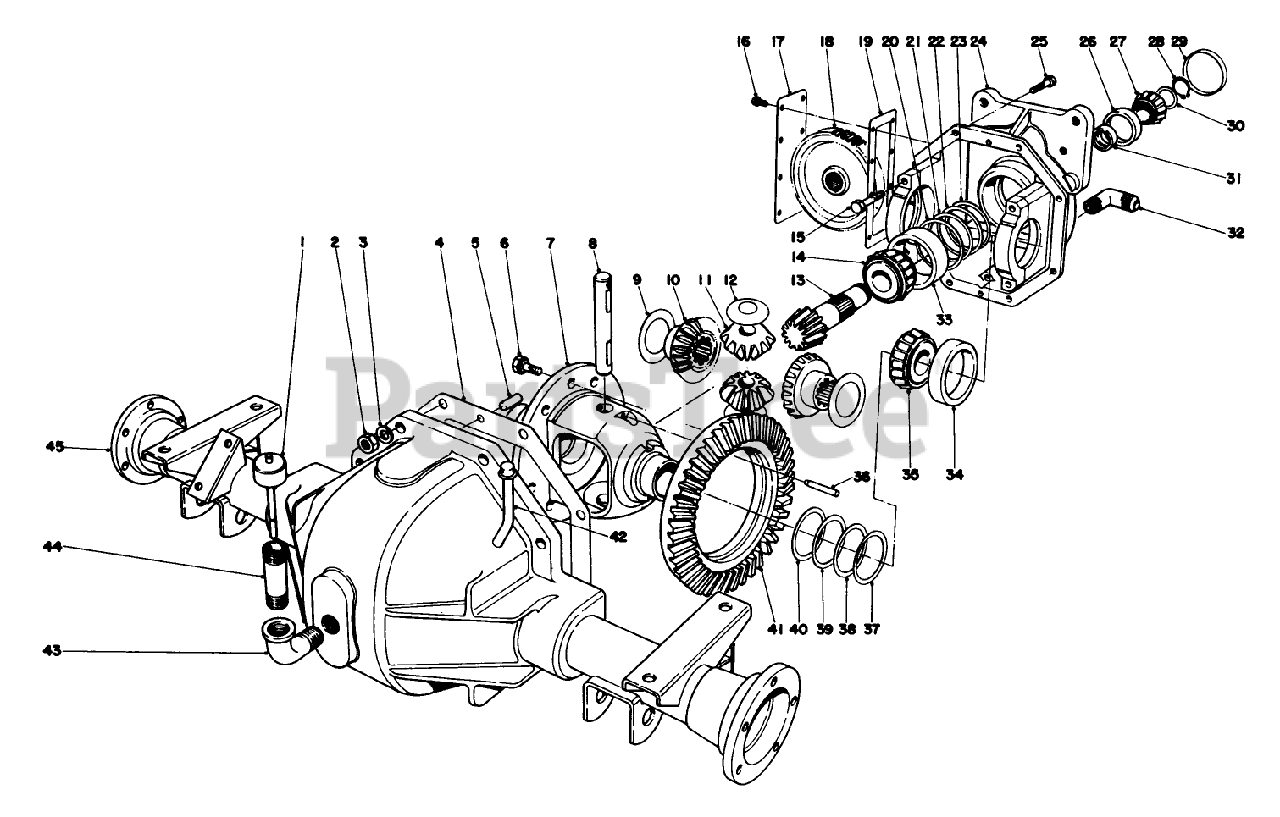

Differential Assembly Parts Diagram

  • Title

1

Toro 27-3710

DIPSTICK

$

$

Not available

2

Toro 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

3

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

4

Toro 21-8280

DISCONTINUED

$

$

Not available

5

Toro 21-8270

PIN-DOWEL

$8.99

$

Usually ships in 3-6 days

0

6

Toro 21-7770

SCREW-GEAR, DRIVE

$2.99

$

Usually ships in 3-6 days

0

7

Toro 21-7670

CASE-DIFFERENTIAL

$806.99

$

Usually ships in 3-6 days

0

8

Toro 21-7700

SHAFT-MATE, PINION

$63.99

$

Usually ships in 3-6 days

0

9

Toro 21-7720

WASHER-THRUST

$4.99

$

Usually ships in 3-6 days

0

10

Toro 24-8790

See Supercession: 110-4143
(Superseded to 110-4143)

$935.99

$

Usually ships in 3-6 days

0

11

Toro 21-7690

See Supercession: 110-4143
(Superseded to 110-4143)

$935.99

$

Usually ships in 3-6 days

0

12

Toro 21-7730

WASHER-THRUST, PINION

$3.99

$

Usually ships in 3-6 days

0

13

Drive Pinion (Incl. Ref.#41)

$

$

Not available

14

Toro 21-8080

DISCONTINUED

$

$

Not available

15

Toro 324-23

See Supercession: 92-1773
(Superseded to 92-1773)

$4.49

$

Usually ships in 3-6 days

0

16

Toro 12-5450

SCREW

$10.99

$

Usually ships in 3-6 days

0

17

Toro 21-7830

COVER-GEAR

$31.99

$

Usually ships in 3-6 days

0

18

Toro 21-8150

See Supercession: 86-7230
(Superseded to 86-7230)

$811.99

$

Usually ships in 3-6 days

0

19

Toro 21-7820

DISCONTINUED

$

$

Not available

20

Toro 21-8030

DISCONTINUED

$

$

Not available

21

Toro 21-8040

DISCONTINUED

$

$

Not available

22

Toro 21-8050

BRG SHIM .010

$

$

Not available

23

Toro 21-8060

DISCONTINUED

$

$

Not available

24

Toro 32-8780

See Supercession: 27-6840
(Superseded to 27-6840)

$

$

Not available

25

Toro 28-0660

See Supercession: 99-5691
(Superseded to 99-5691)

$

$

Not available

26

Toro 254-90

BEARING-CUP

$15.99

$

Usually ships in 3-6 days

0

27

Toro 21-8010

BRG CONE

$

$

Not available

28

Toro 32120-32

See Supercession: 32151-83
(Superseded to 32151-83)

$0.99

$

Usually ships in 3-6 days

0

29

Toro 21-7850

PLUG-CUP

$27.99

$

Usually ships in 3-6 days

0

30

Toro 21-7870

DISCONTINUED

$

$

Not available

Toro 21-7880

DISCONTINUED

Note: Not illustrated

$

$

Not available

Toro 21-7890

DISCONTINUED

Note: Not illustrated

$

$

Not available

Toro 21-7900

DISCONTINUED

Note: Not illustrated

$

$

Not available

Toro 21-7910

DISCONTINUED

Note: Not illustrated

$

$

Not available

Toro 21-7920

DISCONTINUED

Note: Not illustrated

$

$

Not available

Toro 21-7930

DISCONTINUED

Note: Not illustrated

$

$

Not available

Toro 21-7940

DISCONTINUED

Note: Not illustrated

$

$

Not available

Toro 21-7950

DISCONTINUED

Note: Not illustrated

$

$

Not available

Toro 21-7960

DISCONTINUED

Note: Not illustrated

$

$

Not available

Toro 21-7970

DISCONTINUED

Note: Not illustrated

$

$

Not available

Toro 21-7980

DISCONTINUED

Note: Not illustrated

$

$

Not available

Toro 21-7990

DISCONTINUED

Note: Not illustrated

$

$

Not available

Toro 21-8000

DISCONTINUED

Note: Not illustrated

$

$

Not available

31

Toro 21-8020

SPACER-BEARING

$38.99

$

Usually ships in 3-6 days

0

32

Toro 353-533

90 DEG FITTING

$

$

Currently unavailable

33

Toro 21-8070

DISCONTINUED

$

$

Not available

34

Toro 254-66

CUP-BEARING, ROLLER

$21.99

$

Usually ships in 3-6 days

0

35

Toro 254-65

BEARING-ROLLER, CONE

$82.99

$

Usually ships in 3-6 days

0

36

Toro 21-7710

See Supercession: 32121-15
(Superseded to 32121-15)

$1.99

$

In Stock, Qty 20+

0

37

Toro 21-8090

SHIM-BEARING, DIFFERENTIAL (.003)

$1.49

$

Usually ships in 3-6 days

0

38

Toro 21-8100

SHIM-BEARING, DIFFERENTIAL (.005)

$4.99

$

Usually ships in 3-6 days

0

39

Toro 21-8110

SHIM-BEARING, DIFFERENTIAL (.010)

$4.99

$

Usually ships in 3-6 days

0

40

Toro 21-8120

SHIM-BEARING, DIFFERENTIAL (.030)

$7.49

$

Usually ships in 3-6 days

0

41

Ring Gear

$

$

Not available

42

Toro 21-8230

See Supercession: 72-9420
(Superseded to 72-9420)

$9.49

$

Usually ships in 3-6 days

0

43

Toro 2811-9

FITTING-ELBOW-90

$18.99

$

Usually ships in 3-6 days

0

44

Toro 289-38

PIPE NIPPLE

$

$

Not available

Toro 21-7740

See Supercession: 28-0640
(Superseded to 28-0640)

Note: Not illustrated

$

$

Not available

45

Toro 27-6820

See Supercession: 43-6850
(Superseded to 43-6850)

$1939.99

$

Usually ships in 3-6 days

0
