30935 - Toro 20cc Handheld Blower (SN: 020000001 - 029999999) (1992) Blower Housing Assembly Parts Diagram

20cc Handheld Blower

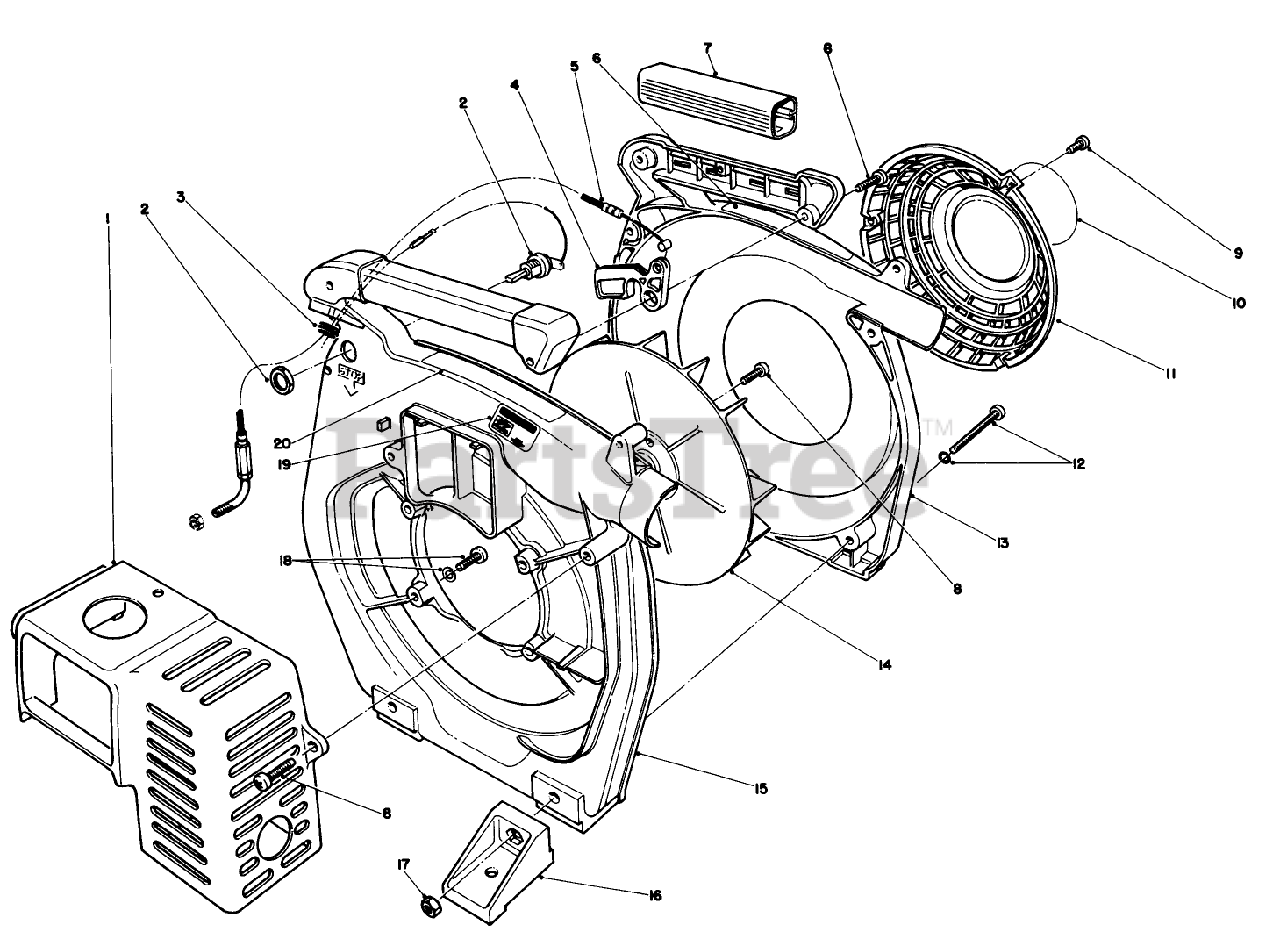

Blower Housing Assembly Parts Diagram

  • Title

1

Toro 65-4140

ENGINE COVER

$129.99

$

Usually ships in 3-6 days

0

2

Toro 65-4150

DISCONTINUED

$

$

Not available

3

Toro 65-4190

DISCONTINUED

$

$

Not available

4

Toro 65-4180

THROTTLE LEVER

$

$

Not available

5

Toro 65-4160

DISCONTINUED

$

$

Not available

6

Toro 65-3080

DISCONTINUED

$

$

Not available

7

Toro 65-4170

DISCONTINUED

$

$

Not available

8

Toro 65-4130

DISCONTINUED

$

$

Not available

9

Toro 65-4120

DISCONTINUED

$

$

Not available

10

Toro 82-5910

DISCONTINUED

$

$

Not available

11

Toro 65-4200

PROTECTOR

$82.99

$

Usually ships in 3-6 days

0

12

Toro 65-4220

SCREW ASSEMBLY

$

$

Not available

13

Toro 65-3700

DISCONTINUED

$

$

Not available

14

Toro 65-4090

DISCONTINUED

$

$

Not available

15

Toro 65-4050

DISCONTINUED

$

$

Not available

16

Toro 65-4110

DISCONTINUED

$

$

Not available

17

Toro 65-3540

INSULATOR NUT

$

$

Not available

18

Toro 65-4210

DISCONTINUED

$

$

Not available

19

Toro 65-3070

DISCONTINUED
(Superseded to 82-2520)

$

$

Not available

20

Toro 82-5920

DISCONTINUE

$

$

Not available
