31041 (H 600) - Toro ProLine Rear-Engine Riding Mower (SN: 324000001 - 324999999) (2024) Alternator Components Assembly Parts Diagram

ProLine Rear-Engine Riding Mower

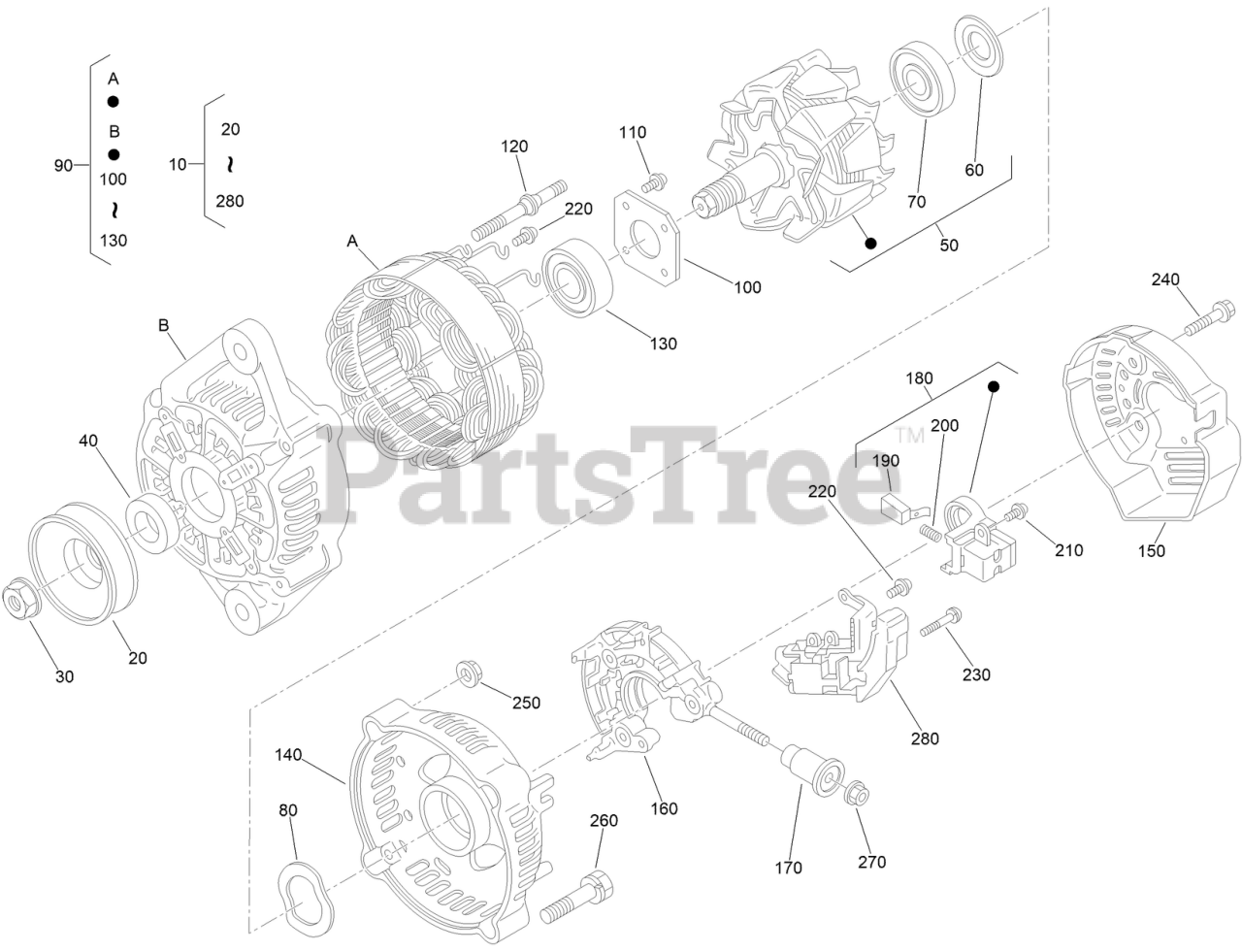

Alternator Components Assembly Parts Diagram

  • Title

10

Toro 121-3811

ALTERNATOR ASM

$

$

Currently unavailable

20

Toro 98-9453

PULLEY-DYNAMO

$208.99

$

Usually ships in 3-6 days

0

30

Toro 98-7708

NUT

$11.99

$

Usually ships in 3-6 days

0

40

Toro 98-7709

COLLAR

$13.99

$

Usually ships in 3-6 days

0

50

Toro 107-0136

ROTOR ASM

$405.99

$

Usually ships in 3-6 days

0

60

Toro 98-7711

COVER-BEARING

$11.99

$

Usually ships in 3-6 days

0

70

Toro 107-0138

BEARING-BALL

$64.99

$

Usually ships in 3-6 days

0

80

Toro 98-7713

WASHER-THRUST

$6.99

$

Usually ships in 3-6 days

0

90

Toro 107-0139

DRIVE END FRAME ASM

$673.99

$

Usually ships in 3-6 days

0

100

Toro 98-7715

PLATE-RETAINER

$14.99

$

Usually ships in 3-6 days

0

110

Toro 98-7716

SCREW-HEAD, ROUND

$1.49

$

Usually ships in 3-6 days

0

120

Toro 98-7717

BOLT-THROUGH

$14.99

$

Usually ships in 3-6 days

0

130

Toro 133-2811

BEARING

$70.99

$

Usually ships in 3-6 days

0

140

Toro 121-3812

FRAME-END

$

$

Currently unavailable

150

Toro 121-3813

COVER-END

$

$

Currently unavailable

160

Toro 121-3805

RECTIFIER ASM

$

$

Currently unavailable

170

Toro 117-0321

INSULATION-BRUSH

$60.99

$

Usually ships in 3-6 days

0

180

Toro 107-0141

BRUSH HOLDER ASM

$161.99

$

Usually ships in 3-6 days

0

190

Toro 98-7724

BRUSH

$18.99

$

Usually ships in 3-6 days

0

200

Toro 98-7725

SPRING-BRUSH

$6.99

$

Usually ships in 3-6 days

0

210

Toro 98-7726

SCREW-HEAD, ROUND

$0.99

$

Usually ships in 3-6 days

0

220

Toro 98-7727

SCREW-HEAD, ROUND

$1.49

$

Usually ships in 3-6 days

0

230

Toro 98-7728

SCREW-HEAD, ROUND

$1.49

$

Usually ships in 3-6 days

0

240

Toro 98-7729

BOLT

$3.99

$

Usually ships in 3-6 days

0

250

Toro 98-7730

NUT

$1.99

$

Usually ships in 3-6 days

0

260

Toro 98-7731

BOLT

$5.99

$

Usually ships in 3-6 days

0

270

Toro 98-7732

NUT

$2.49

$

Usually ships in 3-6 days

0

280

Toro 121-3809

REGULATOR ASM

$

$

Currently unavailable
