31041 (H 600) - Toro ProLine Rear-Engine Riding Mower (SN: 324000001 - 324999999) (2024) Idle Apparatus Assembly Parts Diagram

ProLine Rear-Engine Riding Mower

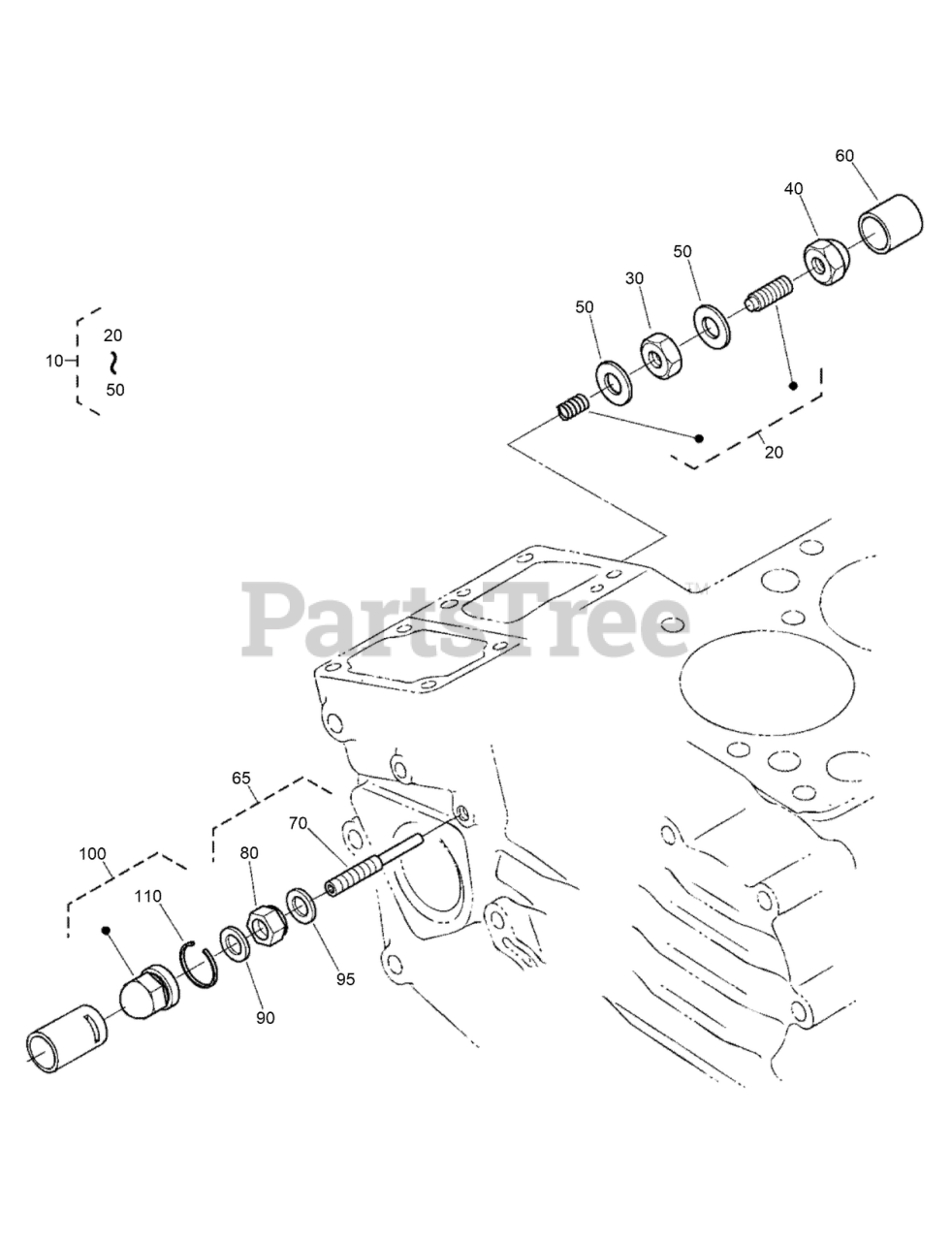

Idle Apparatus Assembly Parts Diagram

  • Title

10

Toro 100-1898

IDLE APPARATUS ASM

$35.99

$

Usually ships in 3-6 days

0

20

Toro 100-1899

ADJUSTING BOLT ASM

$13.99

$

Usually ships in 3-6 days

0

30

Toro 100-1846

NUT

$4.99

$

Usually ships in 3-6 days

0

40

Toro 100-1901

NUT-CAP

$8.49

$

Usually ships in 3-6 days

0

50

Toro 98-7428

GASKET

$1.49

$

Usually ships in 3-6 days

0

60

Toro 100-1902

CAP

$5.49

$

Usually ships in 3-6 days

0

65

Toro 134-9684

BOLT,ASSY(ADJUSTING)

$

$

Currently unavailable

70

Toro 110-3758

BOLT-ADJUSTING

$20.99

$

Usually ships in 3-6 days

0

80

Toro 139-4548

NUT-LOCK

$

$

Currently unavailable

90

Toro 98-7654

GASKET

$13.99

$

Usually ships in 3-6 days

0

95

Toro 98-7654

GASKET

$13.99

$

Usually ships in 3-6 days

0

100

Toro 134-9685

NUT,CAP,ASSY

$

$

Currently unavailable

110

Toro 140-2472

CIRCLIP-INT

$

$

Currently unavailable
