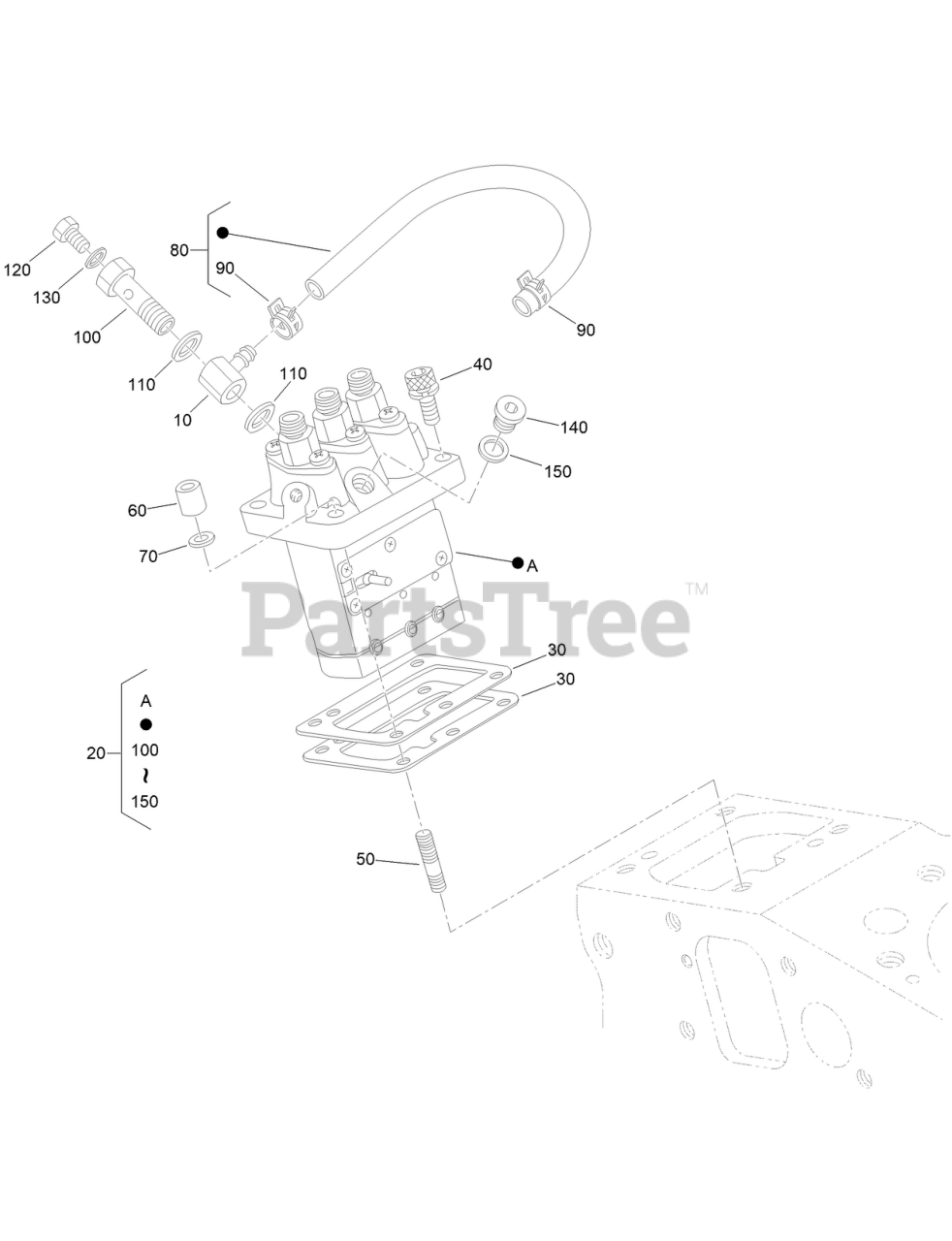

31041 (H 600) - Toro ProLine Rear-Engine Riding Mower (SN: 324000001 - 324999999) (2024) Injection Pump Assembly Parts Diagram

ProLine Rear-Engine Riding Mower

Injection Pump Assembly Parts Diagram

  • Title

10

Toro 134-9688

JOINT,EYE

$

$

Currently unavailable

20

Toro 130-1223

INJECTION PUMP ASM

$1684.99

$

Usually ships in 3-6 days

0

30

Toro 115-3045

SHIM-INJECTION (0.175MM)

$15.99

$

Usually ships in 3-6 days

0

30

Toro 98-9456

SHIM-INJECTION (0.20MM)

$11.99

$

Usually ships in 3-6 days

0

30

Toro 98-9457

SHIM-INJECTION (0.25MM)

$12.99

$

Usually ships in 3-6 days

0

30

Toro 98-9458

SHIM-INJECTION (0.30MM)

$18.99

$

Usually ships in 3-6 days

0

30

Toro 115-3046

SHIM-INJECTION (0.35MM)

$16.99

$

Usually ships in 3-6 days

0

40

Toro 117-7564

BOLT-HEX SOC HD

$3.99

$

Usually ships in 3-6 days

0

50

Toro 98-9438

STUD

$2.49

$

Usually ships in 3-6 days

0

60

Toro 98-9440

NUT-CAP

$27.99

$

Usually ships in 3-6 days

0

70

Toro 134-9689

WASHER,SPRING LOCK

$

$

Currently unavailable

80

Toro 100-1842

FUEL PIPE ASM

$19.99

$

Usually ships in 3-6 days

0

90

Toro 100-2217

CLIP-PIPE

$8.49

$

Usually ships in 3-6 days

0

100

Toro 100-1896

SCREW-HOLLOW

$44.99

$

Usually ships in 3-6 days

0

110

Toro 98-9445

GASKET

$2.99

$

In Stock, only 3 left!

0

120

Toro 98-9430

SCREW

$29.99

$

In Stock, only 2 left!

0

130

Toro 98-9446

GASKET

$3.99

$

In Stock, only 2 left!

0

140

Toro 98-9466

PLUG

$18.99

$

Usually ships in 3-6 days

0

150

Toro 98-9451

GASKET

$2.99

$

Usually ships in 3-6 days

0
